/Products/Electric Motors/Single Phase/Leeson/Air Compressor/110222.00 Leeson 3HP Compressor Duty Electric Motor, 3600 RPM
Click Image to Expand

Product ID: 110222.00

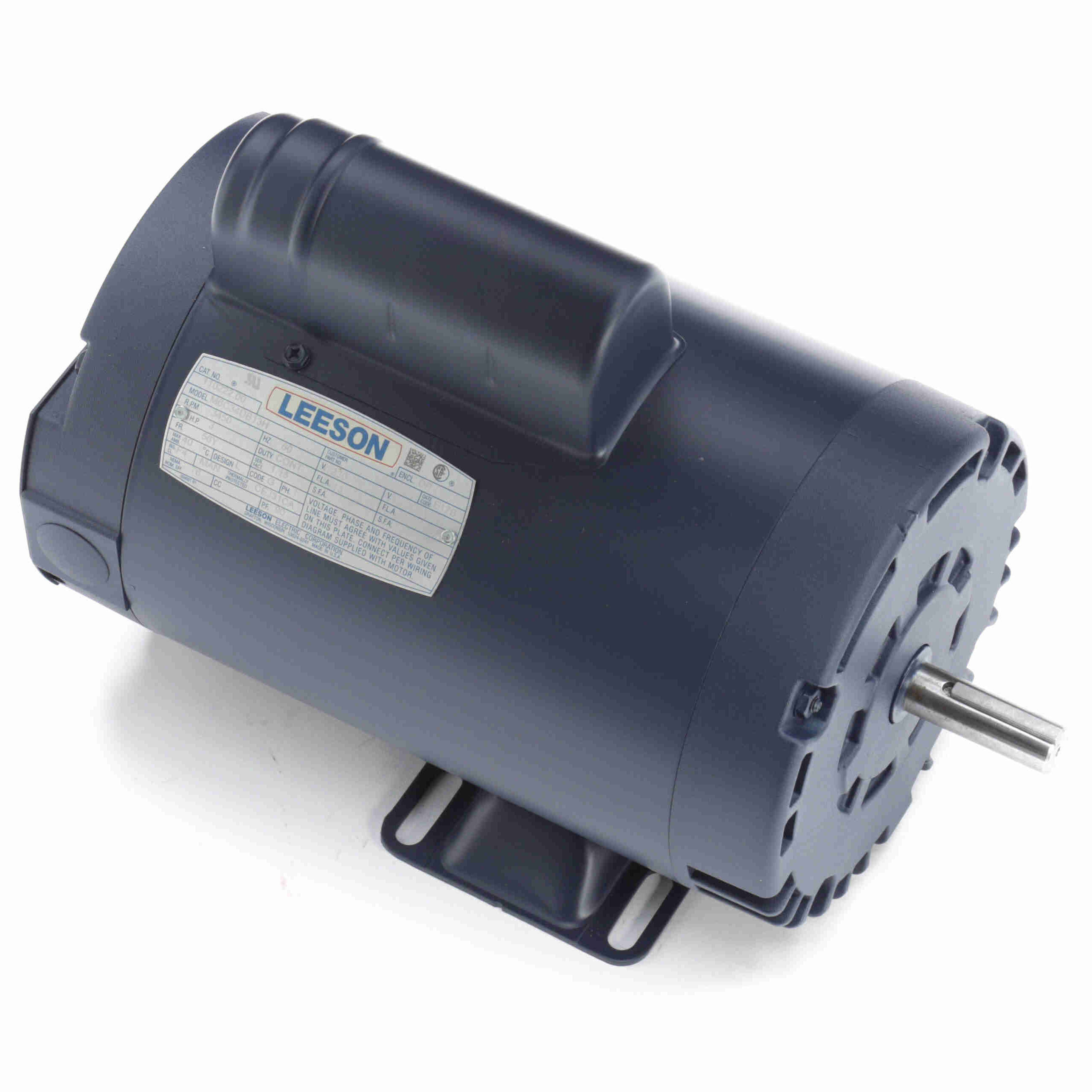

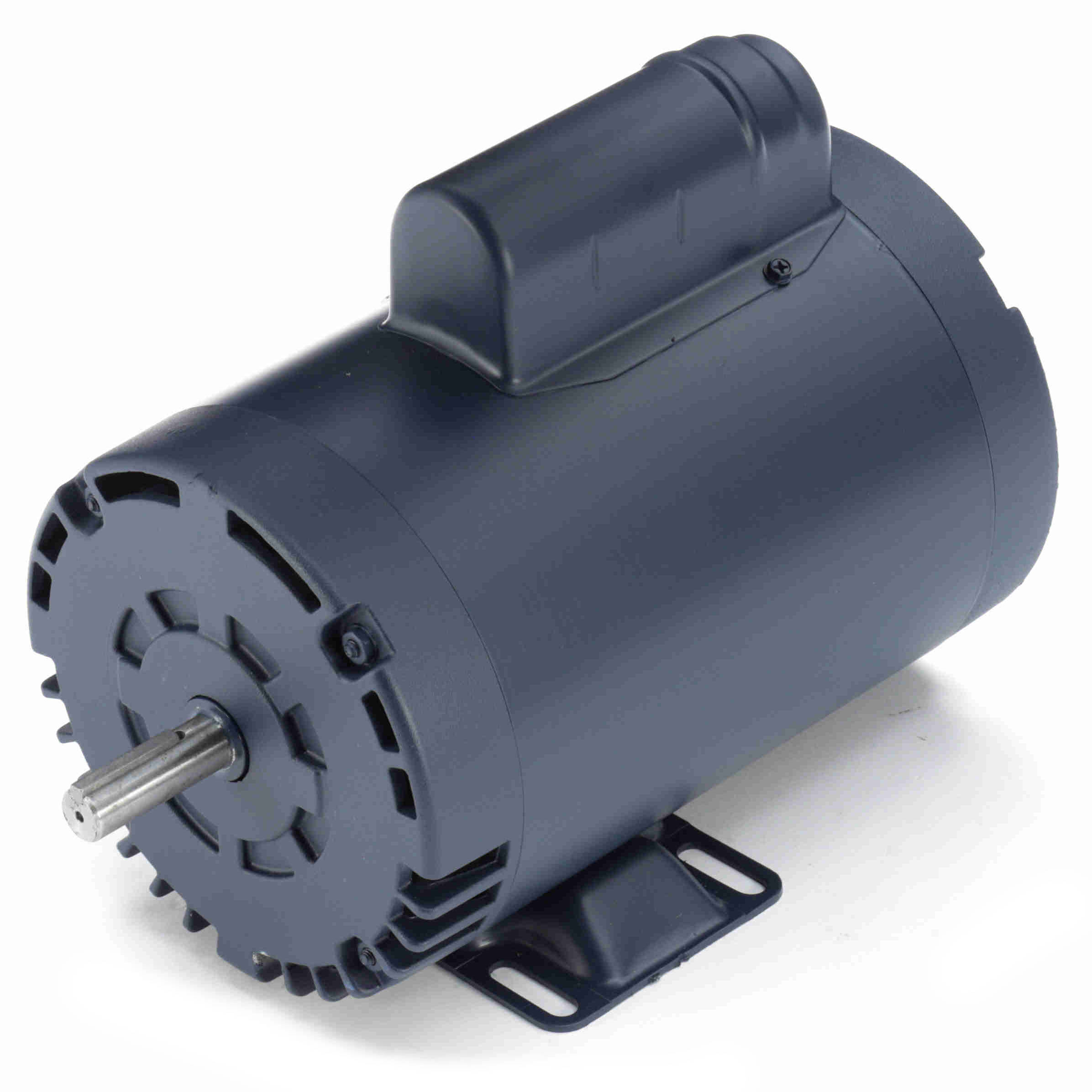

110222.00 Leeson 3HP Compressor Duty Electric Motor, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110222.00

Selected accessories will also be added to cart
$592.00 / Each
Quantity:
DP, 56Y Frame, 230VAC Single Phase 60Hz, M6C34DB13H, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High starting and breakdown torque
  • Dual rotation

General Specifications

General Specifications
Model :M6C34DB13H Catalog No :110222.00
Part Description :3HP..3450RPM.56.DP./230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.COMPRESSOR DUTY.M6C34DB13H Category :Air Compressor
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :3 Hp Output KW :2.2 kW
Frequency :60 Hz Voltage :230 V
Current :15.0 A Speed :3450 rpm
Service Factor :1.15 Phase :1
Efficiency :76 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :G Frame :56Y
Enclosure :Drip Proof Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :12.28 in Frame Length :7.50 in
Shaft Diameter :0.625 in Shaft Extension :1.87 in
Assembly/Box Mounting :F1 ONLY UPC :691720008188
Weight :41.00 LB
