/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/11012ET3Y315S/M-W22 WEG 150HP/110kW IEC TRU-Metric Electric Motor, 1200RPM

Product ID: 11012ET3Y315S/M-W22

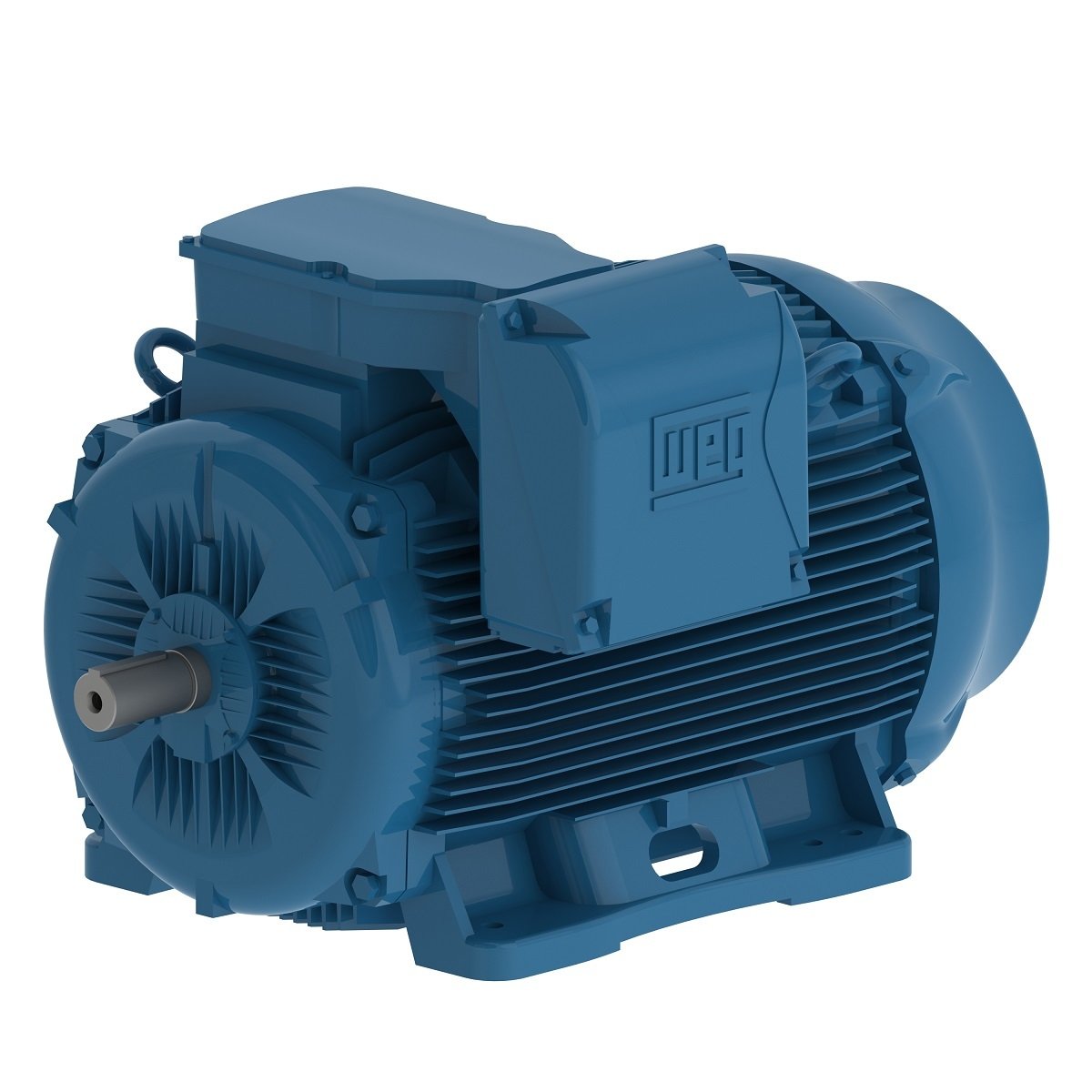

11012ET3Y315S/M-W22 WEG 150HP/110kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 11012ET3Y315S/M-W22

Selected accessories will also be added to cart

$16,880.25 / Each

Quantity:

IC411-TEFC, IP55, 315S/M Frame, 460/380-415VAC 3-Phase 50/60Hz, 11564386, Foot Mount, Cast Iron Frame, 80mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	315S/M
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	380 V
Rated current	207 A
L. R. Amperes	1408 A
LRC	6.8
No load current	80.4 A
Rated torque	785 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	2643 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.6	96.0	96.0

Power factor

50%	75%	100%
0.71	0.80	0.84

Frame	315S/M
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	400 V
Rated current	199 A
L. R. Amperes	1353 A
LRC	6.8
No load current	86.0 A
Rated torque	785 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	2643 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.5	96.0	96.2

Power factor

50%	75%	100%
0.67	0.78	0.83

Frame	315S/M
Output	150 HP (110 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	990 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	194 A
L. R. Amperes	1319 A
LRC	6.8
No load current	90.7 A
Rated torque	785 ft.lb
Locked rotor torque	260 %
Breakdown torque	280 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	2643 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.3	96.0	96.3

Power factor

50%	75%	100%
0.64	0.76	0.82

Frame	315S/M
Output	150 HP (110 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1190 rpm
Slip	0.83 %
Rated voltage	460 V
Rated current	178 A
L. R. Amperes	1246 A
LRC	7.0
No load current	75.0 A
Rated torque	653 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %
Locked rotor time	95s (cold) 53s (hot)

Moment of inertia (J)	105 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	2643 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.8	95.8

Power factor

50%	75%	100%
0.64	0.75	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM63x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
