/Products/Electric Motors/DC/Leeson/Washguard/109089.00 Leeson 1HP Washguard DC Electric Motor, 1750RPM
Click Image to Expand

Product ID: 109089.00

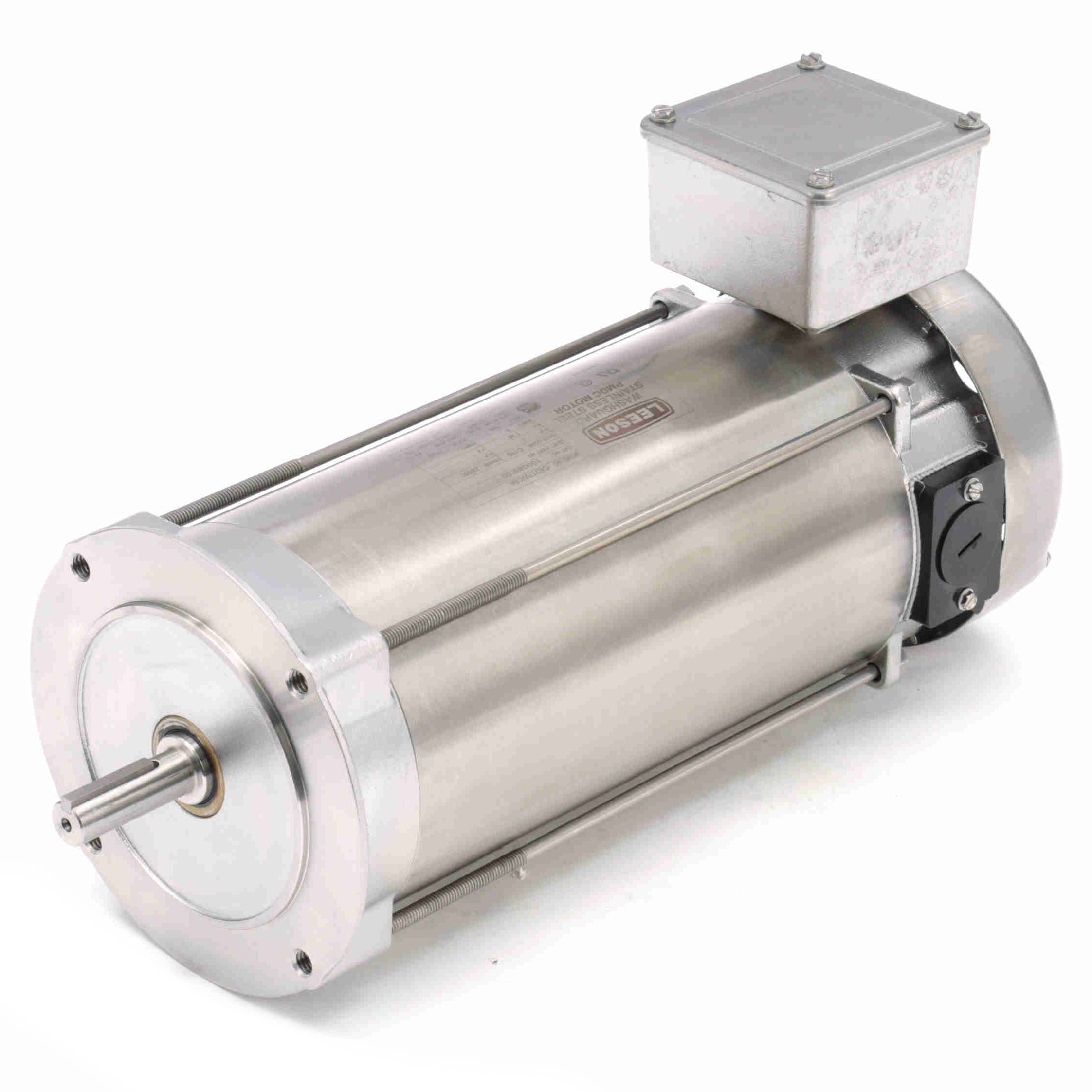

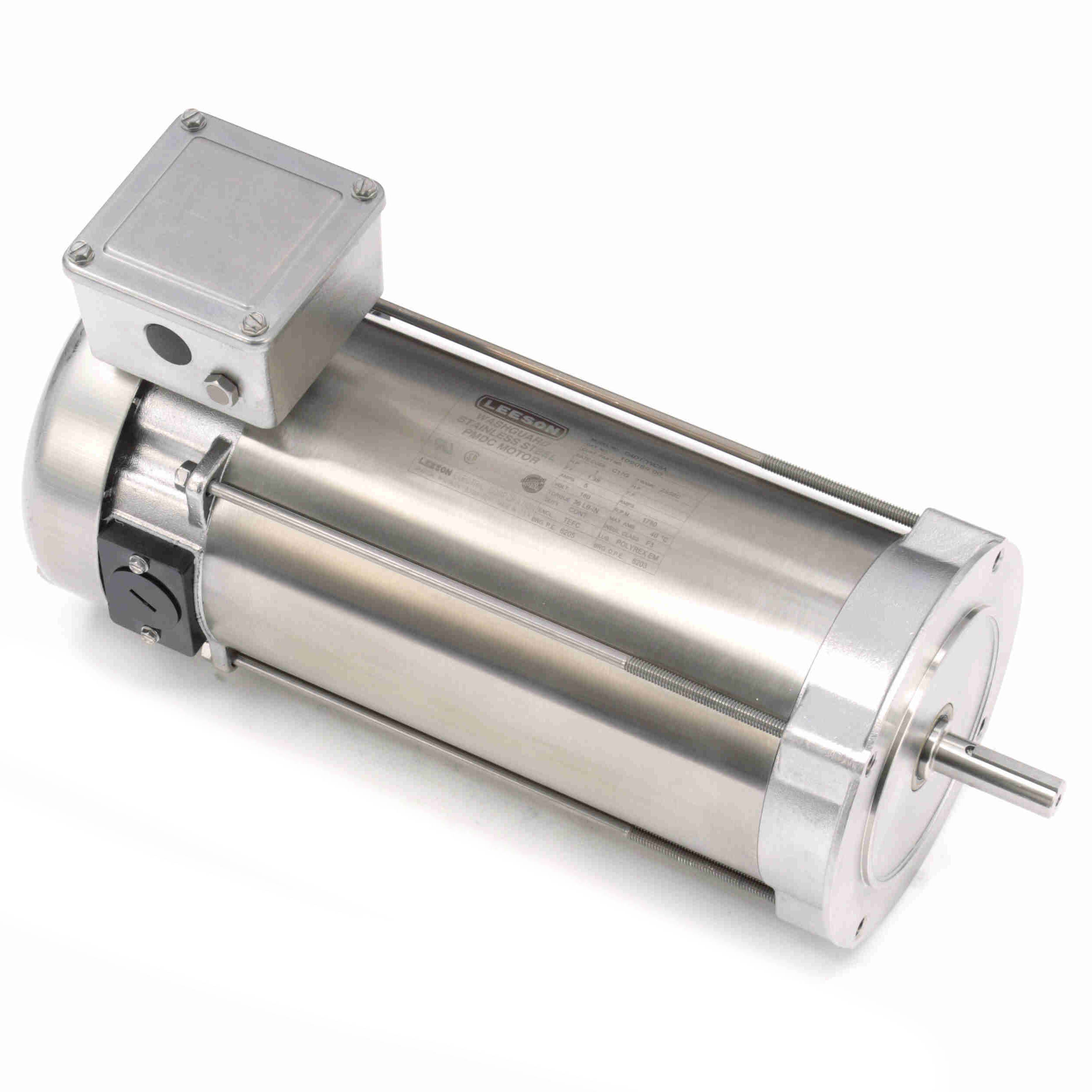

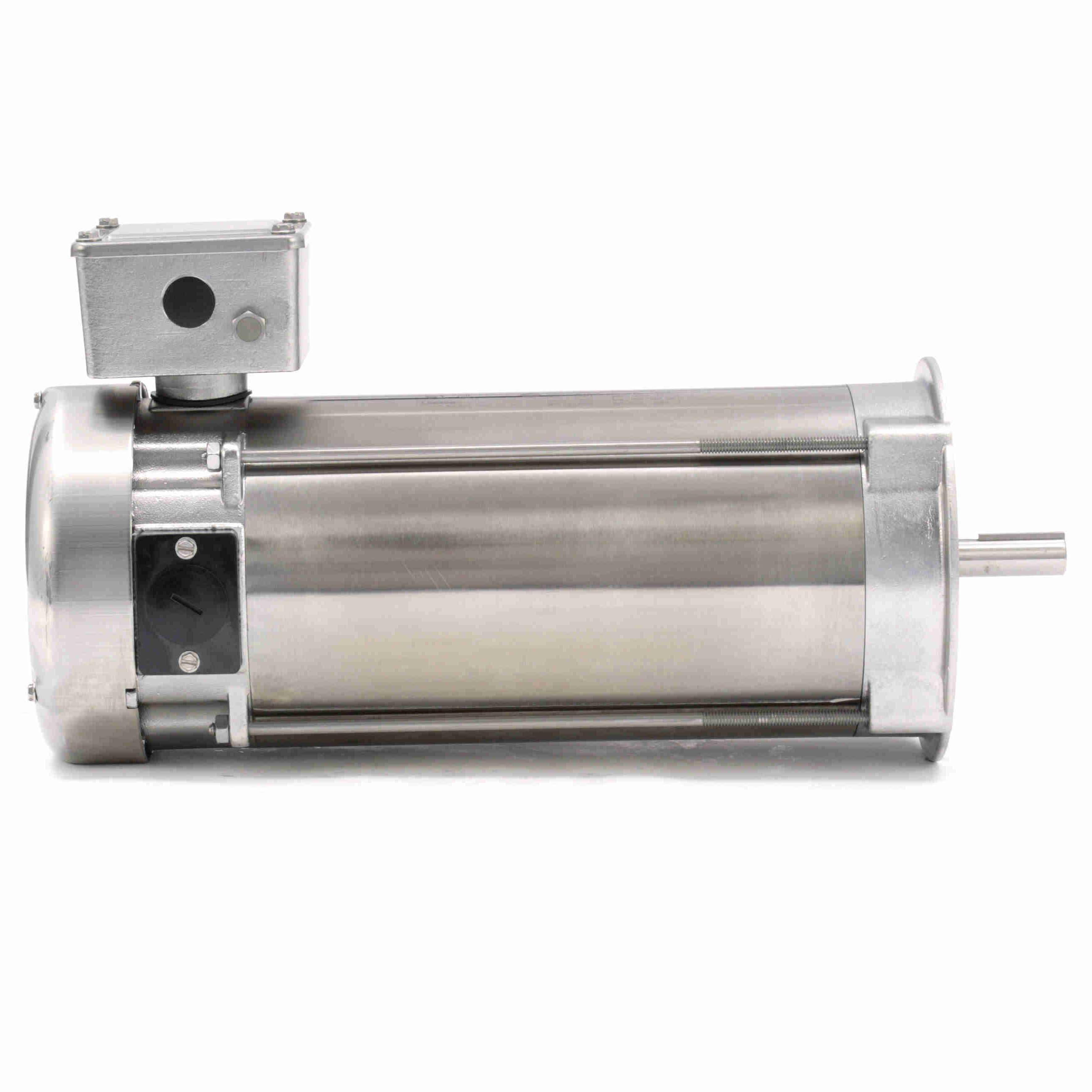

109089.00 Leeson 1HP Washguard DC Electric Motor, 1750RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 109089.00

Selected accessories will also be added to cart
$1,999.97 / Each
Quantity:
TEFC, 56C Frame, 180VDC, Round Body, C-Face, 5/8" Keyed Shaft, 300-Series Stainless Steel

Features

  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • All Washdown Duty motors have Class F Insulation
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720343142 Weight: 59.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Voltage: 180 V Current: 5.0 A
Speed: 1750 rpm Service Factor: 1
Efficiency: 85.3 % Duty: Continuous
Insulation Class: F Frame: ZS56C
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6205
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Y CE: N

Technical Specifications

Rotation: Reversible Mounting: Round
Overall Length: 13.87 in Frame Length: 9.63 in
Shaft Diameter: 0.625 in Shaft Extension: 2.05 in

Speed & Load Characteristics
