/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/07536ET3E365HP-W22 WEG 75HP P-Base Pump Electric Motor, 3600RPM

Product ID: 07536ET3E365HP-W22

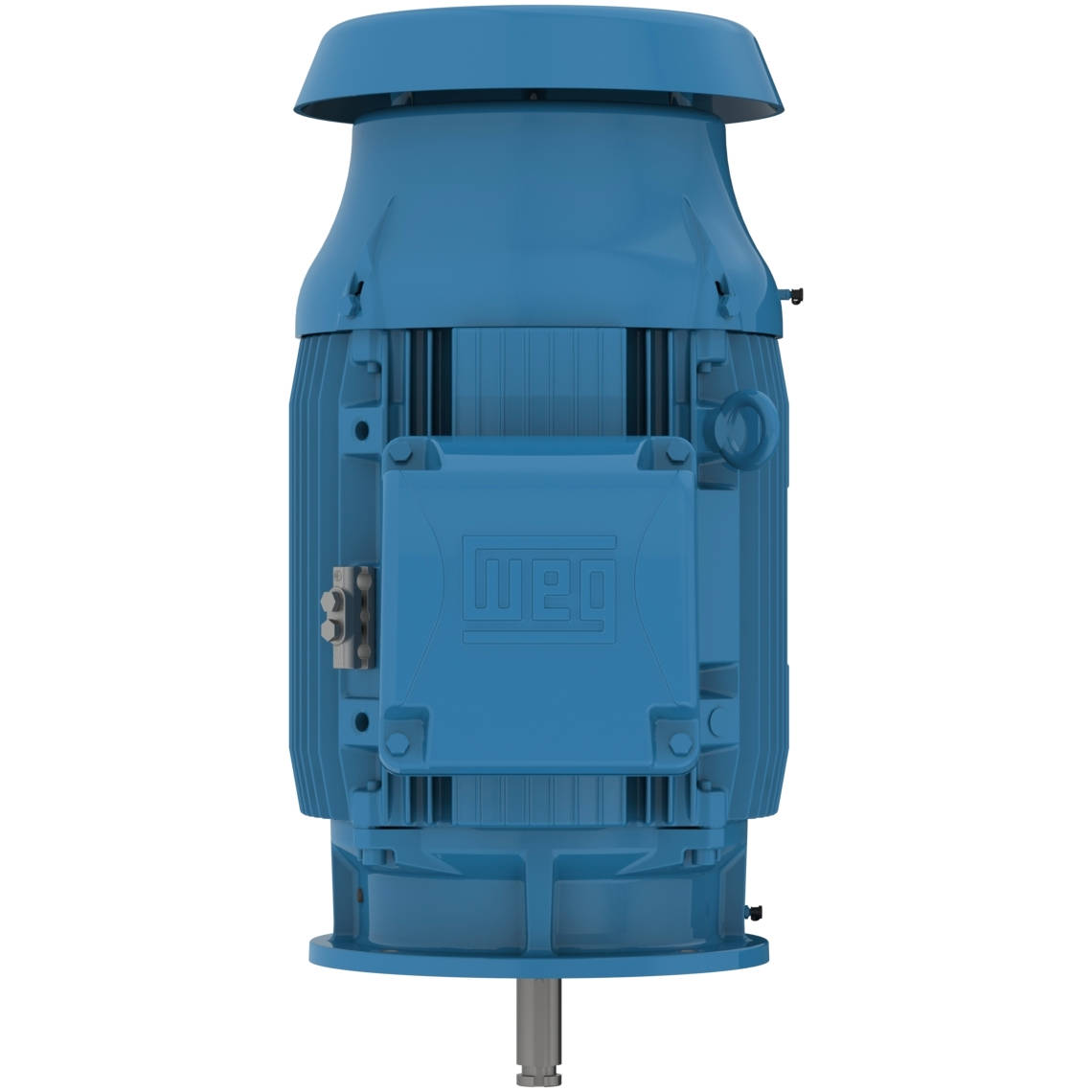

07536ET3E365HP-W22 WEG 75HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536ET3E365HP-W22

Selected accessories will also be added to cart

$8,232.75 / Each

Quantity:

IC411 - TEFC, IP55, 364HP/365HP Frame, 230/460VAC 60Hz 3 Phase, 13016769, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-5/8" Shaft

Details
Purchase Components

Electric Motors

Frame	364/5HP
Output	75 HP (55 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3555 rpm
Slip	1.25 %
Rated voltage	230/460 V
Rated current	164/81.9 A
L. R. Amperes	1097/549 A
LRC	6.7x(Code G)
No load current	40.0/20.0 A
Rated torque	111 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	79.0 dB(A)
Approx. weight³	888 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.6	93.6

Power factor

50%	75%	100%
0.83	0.88	0.90

Frame	364/5HP
Output	60 HP (45 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	80.8 A
L. R. Amperes	525 A
LRC	6.5x(Code G)
No load current	19.0 A
Rated torque	107 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	74.0 dB(A)
Approx. weight³	888 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.2	92.5	94.0

Power factor

50%	75%	100%
0.75	0.85	0.90

Frame	364/5HP
Output	60 HP (45 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	78.5 A
L. R. Amperes	557 A
LRC	7.1x(Code H)
No load current	20.0 A
Rated torque	106 ft.lb
Locked rotor torque	229 %
Breakdown torque	390 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	74.0 dB(A)
Approx. weight³	888 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	93.0	94.0

Power factor

50%	75%	100%
0.72	0.83	0.88

Frame	364/5HP
Output	60 HP (45 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	415 V
Rated current	75.7 A
L. R. Amperes	598 A
LRC	7.9x(Code J)
No load current	21.5 A
Rated torque	106 ft.lb
Locked rotor torque	250 %
Breakdown torque	310 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	74.0 dB(A)
Approx. weight³	888 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	93.1	94.0

Power factor

50%	75%	100%
0.70	0.82	0.88

Frame	364/5HP
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	100 A
L. R. Amperes	520 A
LRC	5.2x(Code E)
No load current	19.0 A
Rated torque	134 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	74.0 dB(A)
Approx. weight³	888 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	92.4

Power factor

50%	75%	100%
0.86	0.89	0.90

Frame	364/5HP
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	400 V
Rated current	94.8 A
L. R. Amperes	559 A
LRC	5.9x(Code F)
No load current	20.0 A
Rated torque	134 ft.lb
Locked rotor torque	175 %
Breakdown torque	220 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	74.0 dB(A)
Approx. weight³	888 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.0

Power factor

50%	75%	100%
0.84	0.89	0.90

Frame	364/5HP
Output	75 HP (55 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	91.4 A
L. R. Amperes	594 A
LRC	6.5x(Code G)
No load current	21.5 A
Rated torque	134 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	74.0 dB(A)
Approx. weight³	888 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.6	93.0

Power factor

50%	75%	100%
0.83	0.88	0.90

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
