/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/JM Close-Coupled Pump/06036OP3VFP326JMV-W4 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RP

Product ID: 06036OP3VFP326JMV-W4

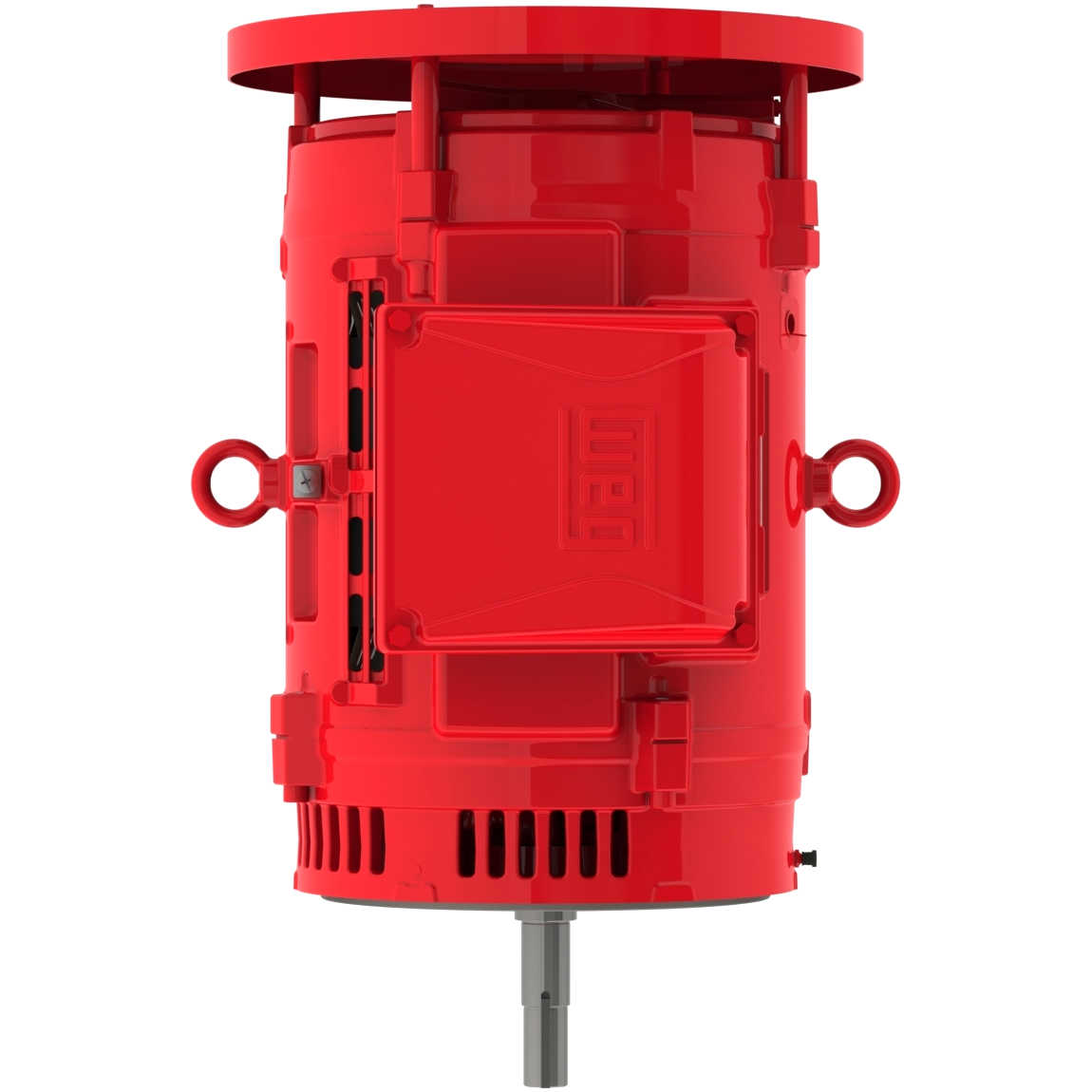

06036OP3VFP326JMV-W4 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RP

MFG: WEG Electric Corporation
MFG Part Number: 06036OP3VFP326JMV-W4

Selected accessories will also be added to cart

$3,878.25 / Each

Quantity:

IC01 - ODP, IP23, 324JM/326JM Frame, 200/400VAC 60Hz 3 Phase, 14832532, High Efficiency, Round Body, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	324/6JM
Output	60 HP (45 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3555 rpm
Slip	1.25 %
Rated voltage	200/400 V
Rated current	162/81.2 A
L. R. Amperes	991/495 A
LRC	6.1x(Code G)
No load current	50.6/25.3 A
Rated torque	88.6 ft.lb
Locked rotor torque	180 %
Breakdown torque	200 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	3.41 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Approx. weight³	459 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.0

Power factor

50%	75%	100%
0.76	0.83	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
