/Products/Ball Bearings/6200 Series Ball Bearings/6211ZZC3 Koyo Ball Bearing, Shielded
Click Image to Expand

Product ID: 6211-ZZC3

6211ZZC3 Koyo Ball Bearing, Shielded

MFG: JTEKT Corporation
MFG Part Number: 6211ZZC3

Available Stock: 4
Selected accessories will also be added to cart
$56.68 / Each
Quantity:
6211-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6211ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)

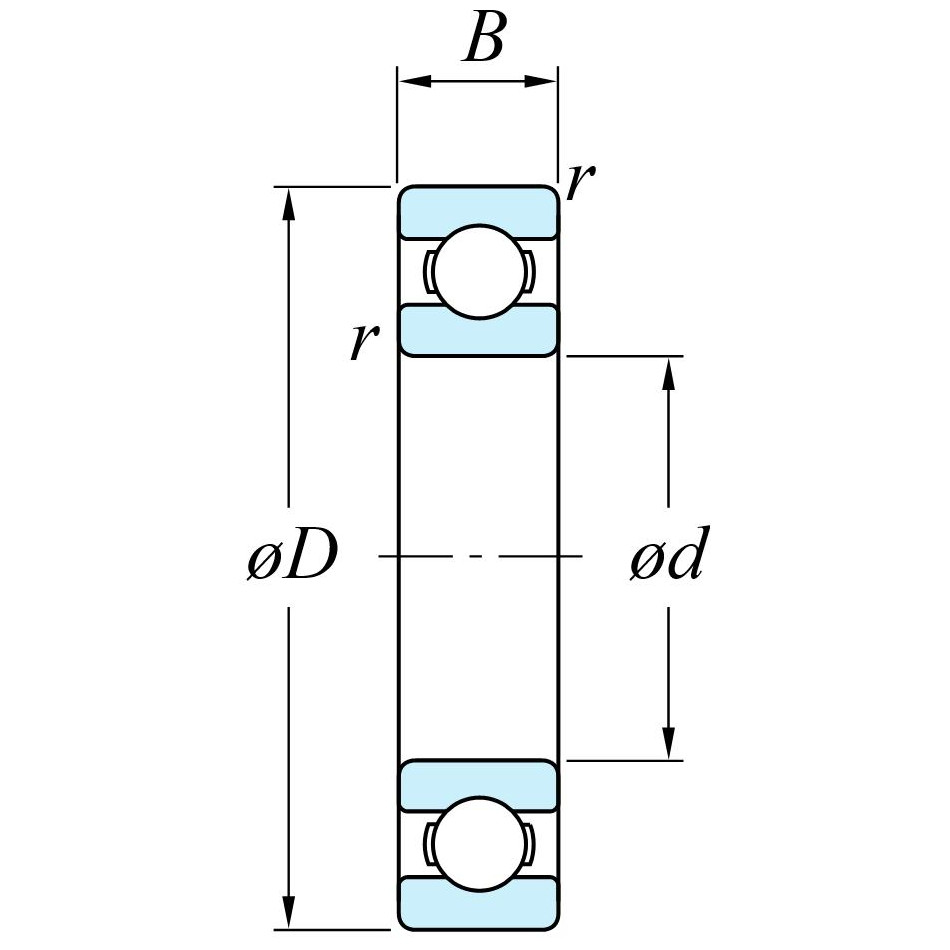

Bore / Inside Diameter (d) 55 mm
Housing / Outside Diameter (D) 100 mm
Width (B) 21 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 43.4 kN
C0r 29.4 kN
Fatigue Load Limit (Cu) 1.95 kN
Factor (f0) 14.4
Limiting Speeds (Grease Lubrication) 6,300 min-1
Shaft Shoulder Mounting Dimension (da) 63 mm Minimum
66 mm Maximum
Housing Shoulder Mounting Dimension (Da) 92 mm Maximum
Shoulder Radius (ra) 1.5 mm Maximum
Mass 0.607 kg
1.34 lbs
UPC 4549250160103
Country of Manufacture Japan
