/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/06018ET3E364HP-W22 WEG 60HP P-Base Pump Electric Motor, 1800RPM

Product ID: 06018ET3E364HP-W22

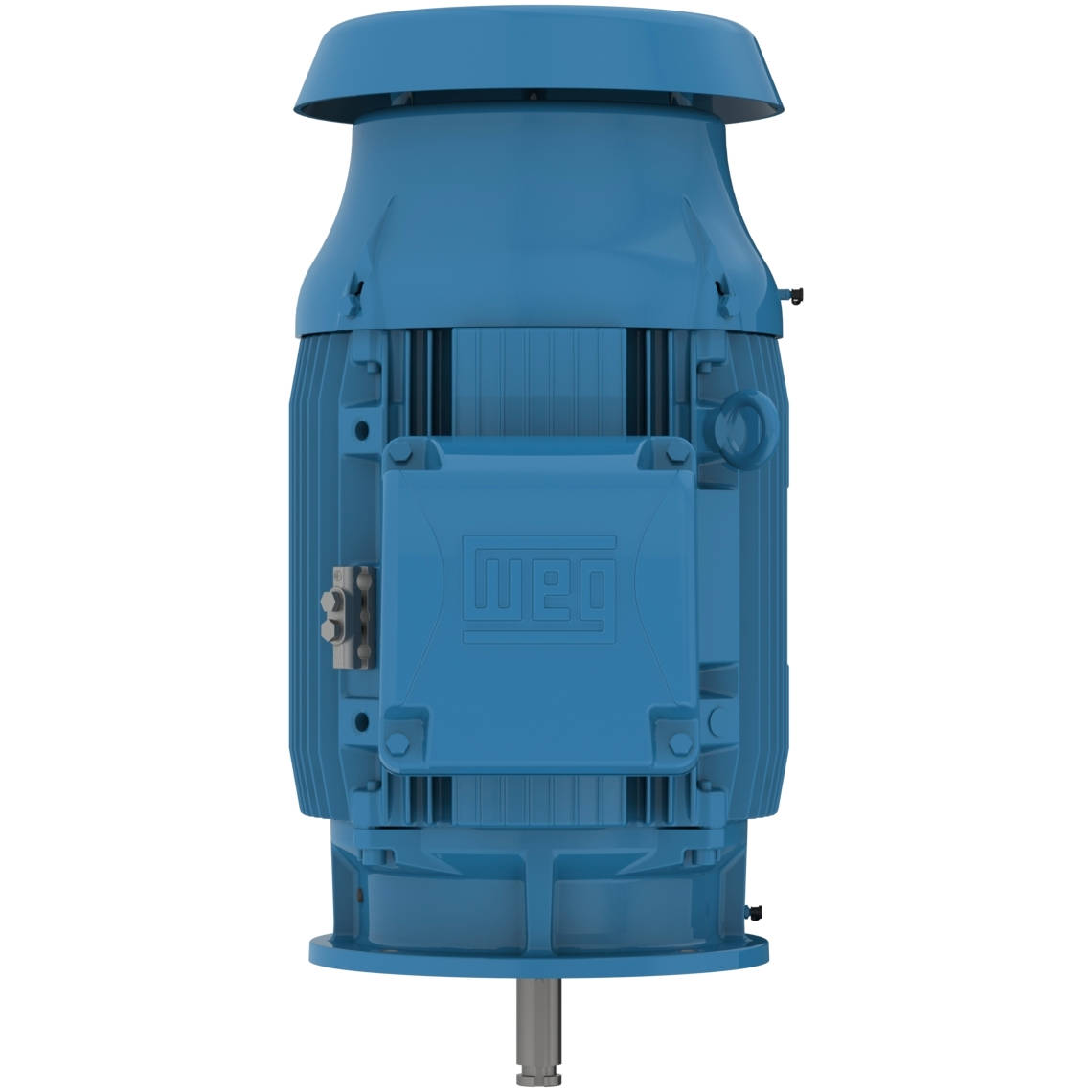

06018ET3E364HP-W22 WEG 60HP P-Base Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018ET3E364HP-W22

Selected accessories will also be added to cart

$6,393.75 / Each

Quantity:

IC411 - TEFC, IP55, 364HP/365HP Frame, 230/460/380VAC 50/60Hz 3 Phase, 13016685, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-5/8" Shaft

Details
Purchase Components

Electric Motors

Frame	364/5HP
Output	60 HP (45 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	230/460 V
Rated current	143/71.6 A
L. R. Amperes	888/444 A
LRC	6.2x(Code G)
No load current	52.0/26.0 A
Rated torque	177 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	907 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.5	95.0

Power factor

50%	75%	100%
0.71	0.80	0.83

Frame	364/5HP
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	71.0 A
L. R. Amperes	447 A
LRC	6.3x(Code G)
No load current	25.0 A
Rated torque	177 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	907 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.7	93.9	94.2

Power factor

50%	75%	100%
0.71	0.80	0.84

Frame	364/5HP
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	69.1 A
L. R. Amperes	477 A
LRC	6.9x(Code H)
No load current	27.5 A
Rated torque	177 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	907 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.3	93.9	94.2

Power factor

50%	75%	100%
0.68	0.78	0.82

Frame	364/5HP
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1485 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	67.4 A
L. R. Amperes	499 A
LRC	7.4x(Code J)
No load current	30.0 A
Rated torque	177 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	907 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.4	94.2	94.3

Power factor

50%	75%	100%
0.65	0.76	0.81

Frame	364/5HP
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	86.5 A
L. R. Amperes	450 A
LRC	5.2x(Code E)
No load current	23.8 A
Rated torque	214 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	907 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	93.6	93.0

Power factor

50%	75%	100%
0.76	0.82	0.85

Frame	364/5HP
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	82.6 A
L. R. Amperes	479 A
LRC	5.8x(Code F)
No load current	25.3 A
Rated torque	214 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	907 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	93.6	93.6

Power factor

50%	75%	100%
0.73	0.81	0.84

Frame	364/5HP
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	80.2 A
L. R. Amperes	497 A
LRC	6.2x(Code G)
No load current	30.0 A
Rated torque	213 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	907 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.1	94.1

Power factor

50%	75%	100%
0.70	0.80	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
