/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/05036OT3E324TS-W40 WEG 50HP, General Purpose Electric Motor, 3600RPM

Product ID: 05036OT3E324TS-W40

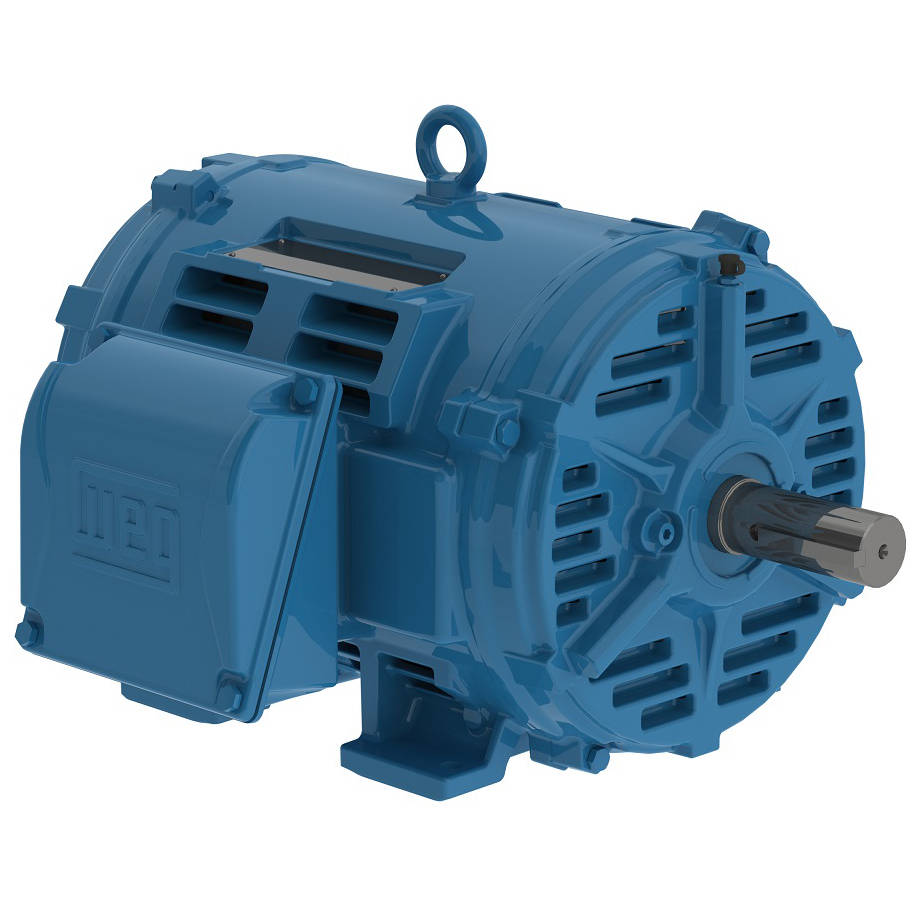

05036OT3E324TS-W40 WEG 50HP, General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 05036OT3E324TS-W40

Selected accessories will also be added to cart

$2,865.00 / Each

Quantity:

IC01 - ODP, IP23, 324TS Frame, 230/460VAC 60Hz 3 Phase, 14367668, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	324TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3560 rpm
Slip	1.11 %
Rated voltage	230/460 V
Rated current	117/58.7 A
L. R. Amperes	740/370 A
LRC	6.3x(Code G)
No load current	37.0/18.5 A
Rated torque	73.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	220 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	3.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	75.0 dB(A)
Approx. weight³	427 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	93.0	93.0

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	57.5 A
L. R. Amperes	368 A
LRC	6.4x(Code G)
No load current	21.2 A
Rated torque	71.0 ft.lb
Locked rotor torque	200 %
Breakdown torque	220 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	3.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	75.0 dB(A)
Approx. weight³	427 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	91.6	93.3

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	400 V
Rated current	56.6 A
L. R. Amperes	374 A
LRC	6.6x(Code H)
No load current	25.7 A
Rated torque	70.8 ft.lb
Locked rotor torque	229 %
Breakdown torque	240 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	3.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	75.0 dB(A)
Approx. weight³	427 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	91.7	93.3

Power factor

50%	75%	100%
0.67	0.77	0.82

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	415 V
Rated current	56.6 A
L. R. Amperes	385 A
LRC	6.8x(Code H)
No load current	29.9 A
Rated torque	70.8 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	3.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	75.0 dB(A)
Approx. weight³	427 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.1	91.7	93.3

Power factor

50%	75%	100%
0.60	0.73	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
