/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Fire Pump/05018OP3HFP326JMV-W4 WEG 50HP JM Close-Coupled Pump Electric Motor, 1800RPM

Product ID: 05018OP3HFP326JMV-W4

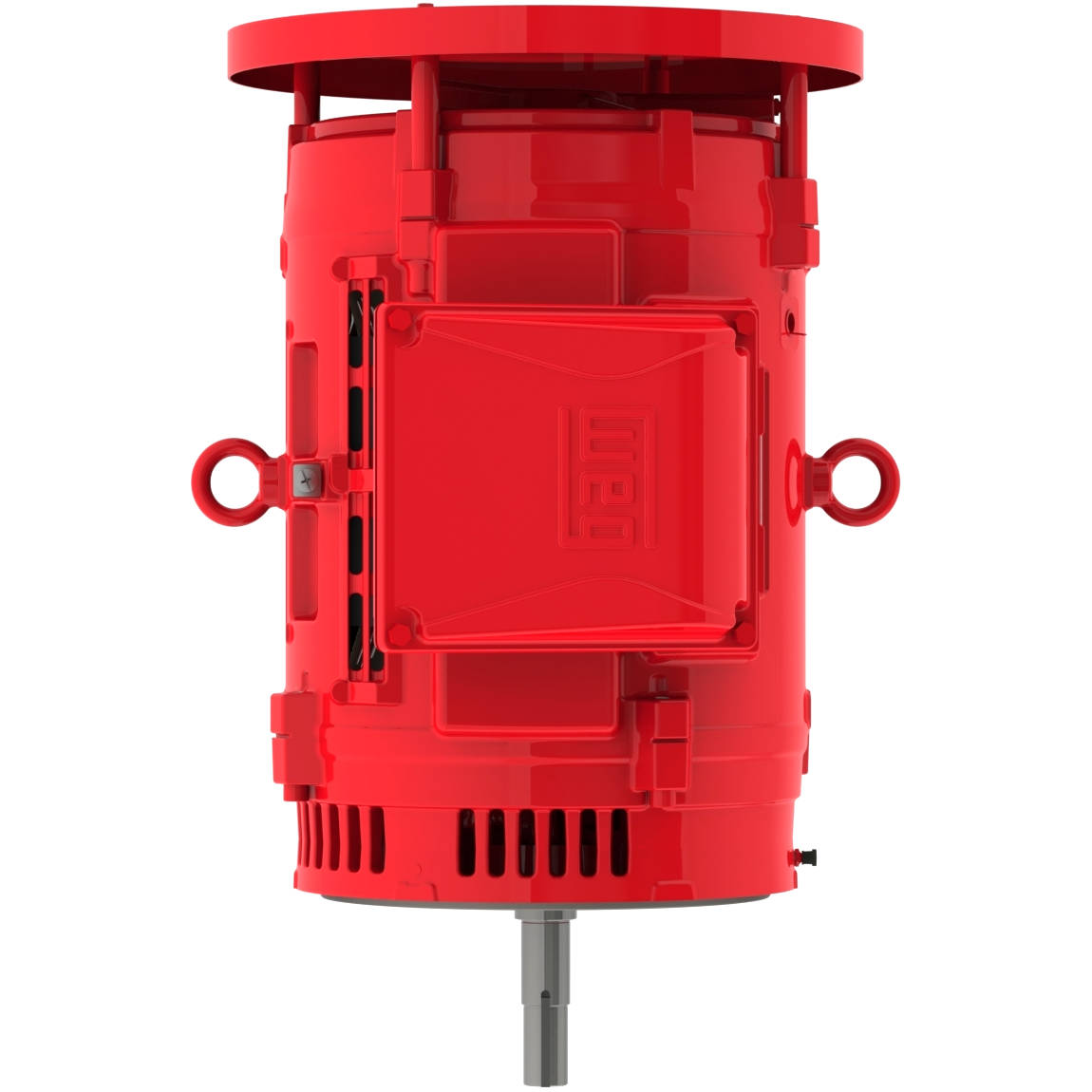

05018OP3HFP326JMV-W4 WEG 50HP JM Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 05018OP3HFP326JMV-W4

Selected accessories will also be added to cart

$3,395.25 / Each

Quantity:

IC01 - ODP, IP23, 324JM/326JM Frame, 575VAC 60Hz 3 Phase, 14832529, High Efficiency, Cast Iron Frame, Footless, Vertical Mount

Details
Purchase Components

Electric Motors

Frame	324/6JM
Output	50 HP (37 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	575 V
Rated current	48.2 A
L. R. Amperes	289 A
LRC	6.0x(Code G)
No load current	21.4 A
Rated torque	148 ft.lb
Locked rotor torque	240 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	5.98 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Approx. weight³	473 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.0

Power factor

50%	75%	100%
0.67	0.78	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
