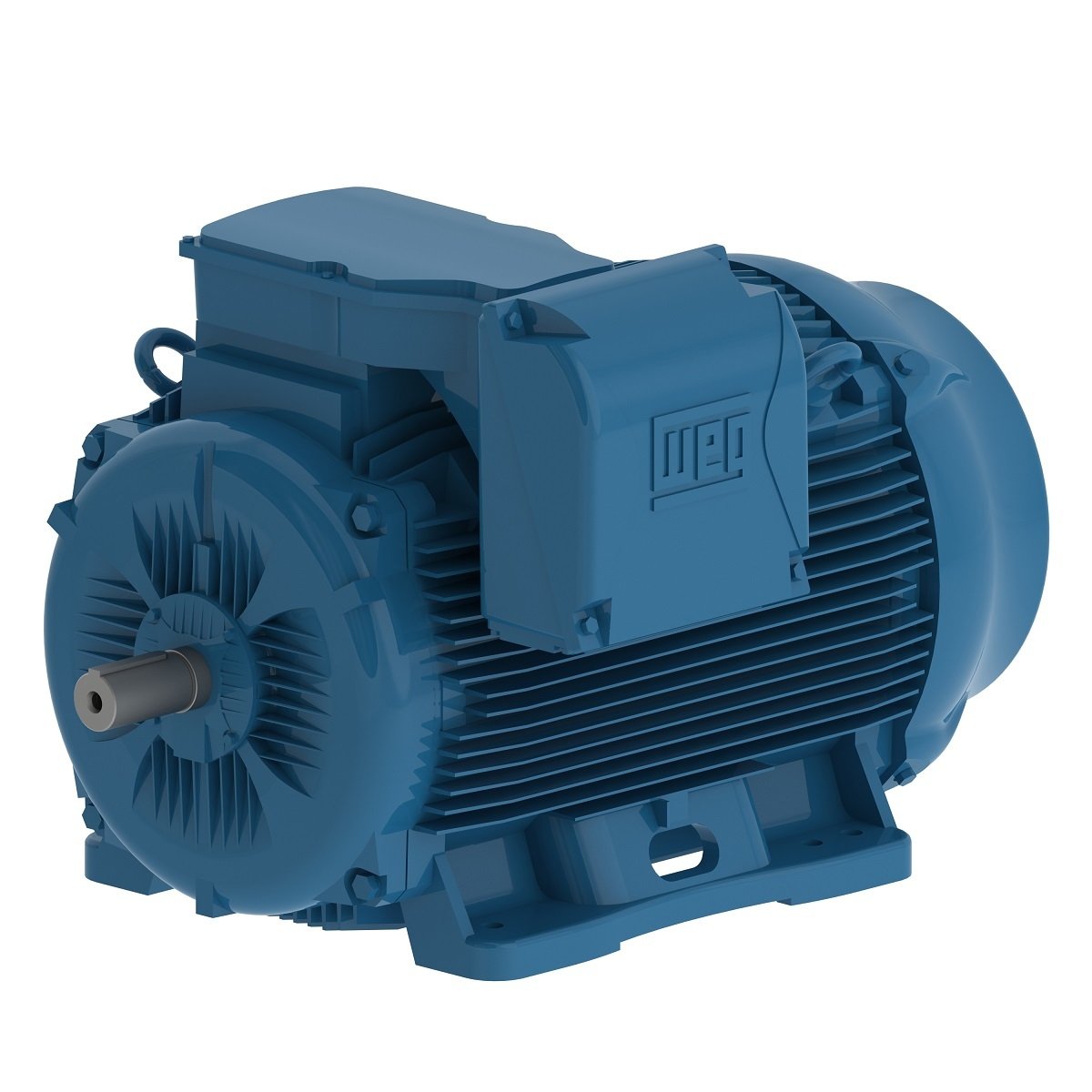

04512ET3Y280S/M-W22 WEG 60HP/45kW IEC TRU-Metric Electric Motor, 1200RPM
Enlarge Photo

Product ID: 04512ET3Y280S/M-W22

04512ET3Y280S/M-W22 WEG 60HP/45kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 04512ET3Y280S/M-W22

Selected accessories will also be added to cart
$8,267.25 / Each
Quantity:
IC411-TEFC, IP55, 280S/M Frame, 460/380-415VAC 3-Phase 50/60Hz, 13034181, Foot Mount, Cast Iron Frame, 75mm Keyed Shaft

Electric Motors

Frame 280S/M
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 380 V
Rated current 85.9 A
L. R. Amperes 584 A
LRC 6.8
No load current 35.6 A
Rated torque 314 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 66.5 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 1594 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  94.7  94.7

Power factor

50% 75% 100%
0.69  0.78  0.84
Frame 280S/M
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 83.4 A
L. R. Amperes 592 A
LRC 7.1
No load current 38.0 A
Rated torque 314 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 66.5 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 1594 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  94.8  95.0

Power factor

50% 75% 100%
0.65  0.76  0.82
Frame 280S/M
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 81.3 A
L. R. Amperes 618 A
LRC 7.6
No load current 39.9 A
Rated torque 314 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 66.5 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 1594 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  94.8  95.1

Power factor

50% 75% 100%
0.62  0.74  0.81
Frame 280S/M
Output 60 HP (45 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 74.7 A
L. R. Amperes 605 A
LRC 8.1
No load current 35.9 A
Rated torque 261 ft.lb
Locked rotor torque 260 %
Breakdown torque 340 %
Locked rotor time 86s (cold) 48s (hot)
Moment of inertia (J) 66.5 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 1594 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  94.5  94.5

Power factor

50% 75% 100%
0.62  0.74  0.80

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM63x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
