/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/JP Close-Coupled Pump/04036OT3V286JPV-W40 WEG 40HP JP Close-Coupled Pump Electric Motor, 3600RPM

Product ID: 04036OT3V286JPV-W40

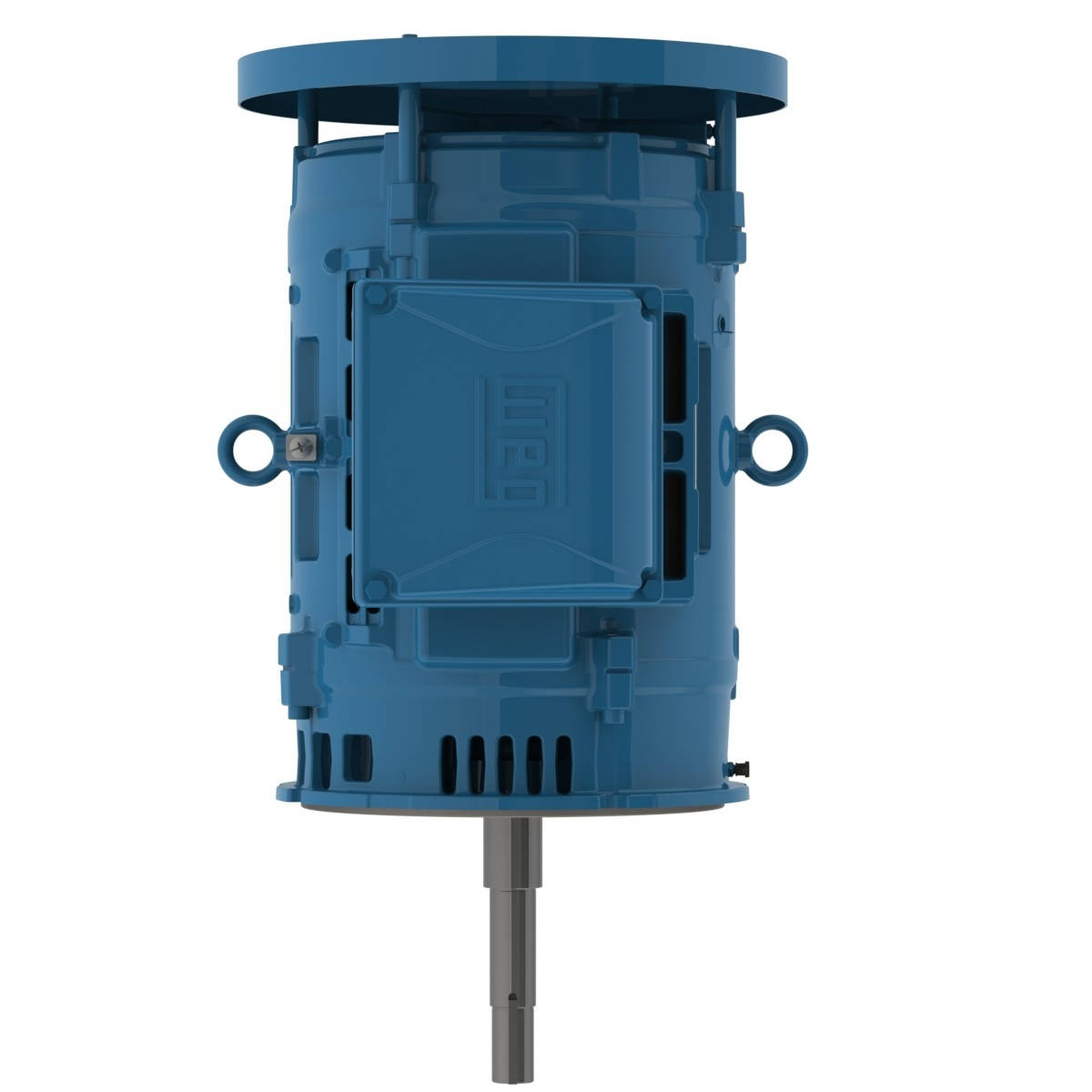

04036OT3V286JPV-W40 WEG 40HP JP Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 04036OT3V286JPV-W40

Selected accessories will also be added to cart

$3,049.50 / Each

Quantity:

IC01 - ODP, IP23, 284JP/286JP Frame, 200/400VAC 60Hz 3 Phase, 14836782, NEMA Premium Efficiency, Footless, Vertical Mount, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	284/6JP
Output	40 HP (30 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3545 rpm
Slip	1.53 %
Rated voltage	200/400 V
Rated current	108/53.8 A
L. R. Amperes	700/350 A
LRC	6.5x(Code G)
No load current	34.3/17.1 A
Rated torque	59.3 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	2.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	364 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	92.4

Power factor

50%	75%	100%
0.76	0.84	0.87

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
