/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/JP Close-Coupled Pump/04036OT3E286JPV-W40 WEG 40HP JP Close-Coupled Pump Electric Motor, 3600RPM

Product ID: 04036OT3E286JPV-W40

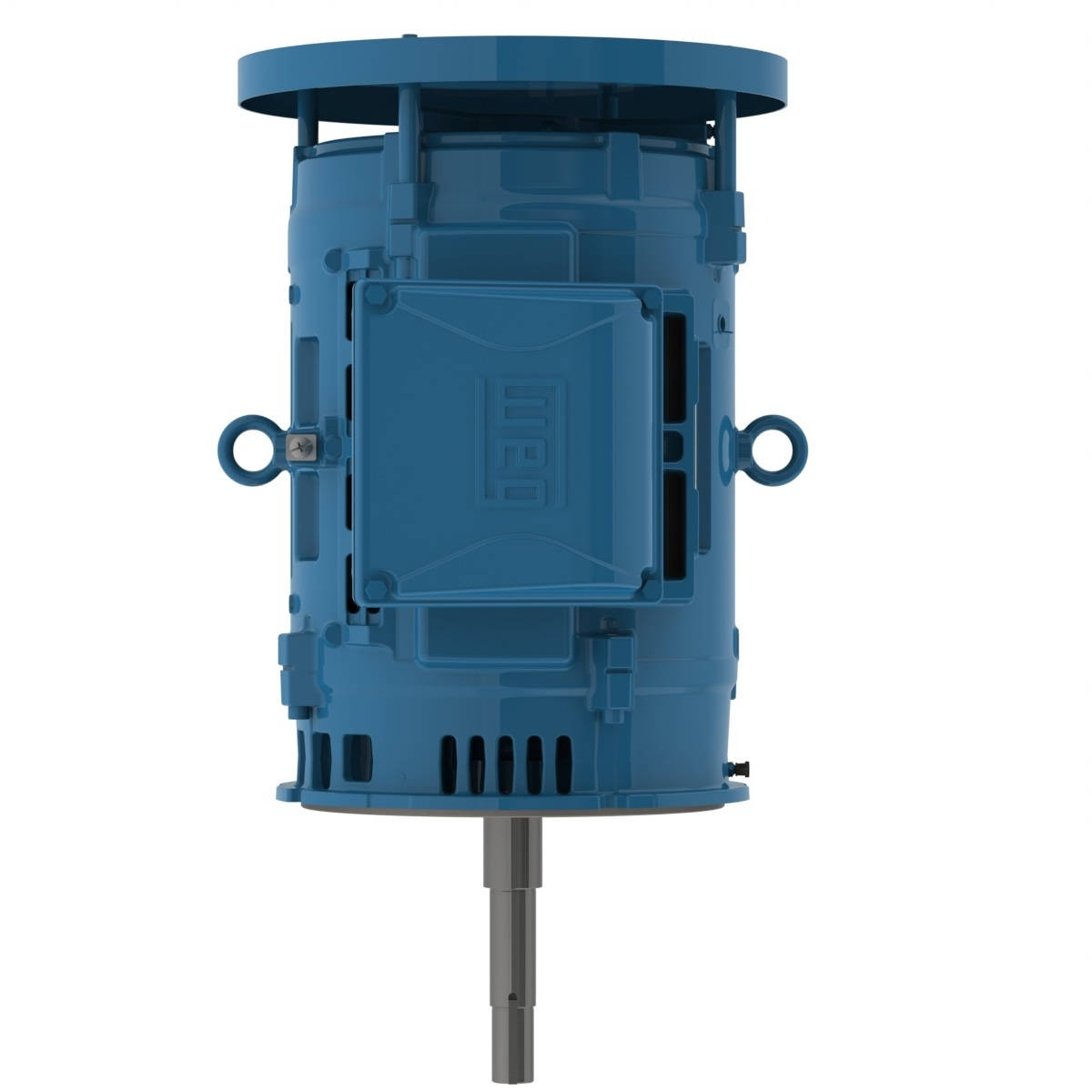

04036OT3E286JPV-W40 WEG 40HP JP Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 04036OT3E286JPV-W40

Selected accessories will also be added to cart

$3,049.50 / Each

Quantity:

IC01 - ODP, IP23, 284JP/286JP Frame, 230/460/380VAC 50/60Hz 3 Phase, 14836781, NEMA Premium Efficiency, Footless, Vertical Mount, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	284/6JP
Output	40 HP (30 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3545 rpm
Slip	1.53 %
Rated voltage	230/460 V
Rated current	93.6/46.8 A
L. R. Amperes	608/304 A
LRC	6.5x(Code G)
No load current	29.8/14.9 A
Rated torque	59.3 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	2.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	360 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	92.4

Power factor

50%	75%	100%
0.76	0.84	0.87

Frame	284/6JP
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	41.9 A
L. R. Amperes	302 A
LRC	7.2x(Code H)
No load current	14.3 A
Rated torque	53.4 ft.lb
Locked rotor torque	210 %
Breakdown torque	280 %
Locked rotor time	250s (cold) 139s (hot)

Moment of inertia (J)	2.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	360 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	91.4	92.8

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	284/6JP
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	40.7 A
L. R. Amperes	309 A
LRC	7.6x(Code J)
No load current	15.8 A
Rated torque	53.2 ft.lb
Locked rotor torque	229 %
Breakdown torque	300 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	2.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	360 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.1	91.4	92.8

Power factor

50%	75%	100%
0.70	0.79	0.84

Frame	284/6JP
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	40.2 A
L. R. Amperes	310 A
LRC	7.7x(Code J)
No load current	17.0 A
Rated torque	53.2 ft.lb
Locked rotor torque	250 %
Breakdown torque	330 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	2.02 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	360 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.5	92.8

Power factor

50%	75%	100%
0.65	0.76	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
