/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, Cast Iron/04036OP3EFP286TS-W40 WEG 40HP Fire Pump Electric Motor, 3600RPM

Product ID: 04036OP3EFP286TS-W40

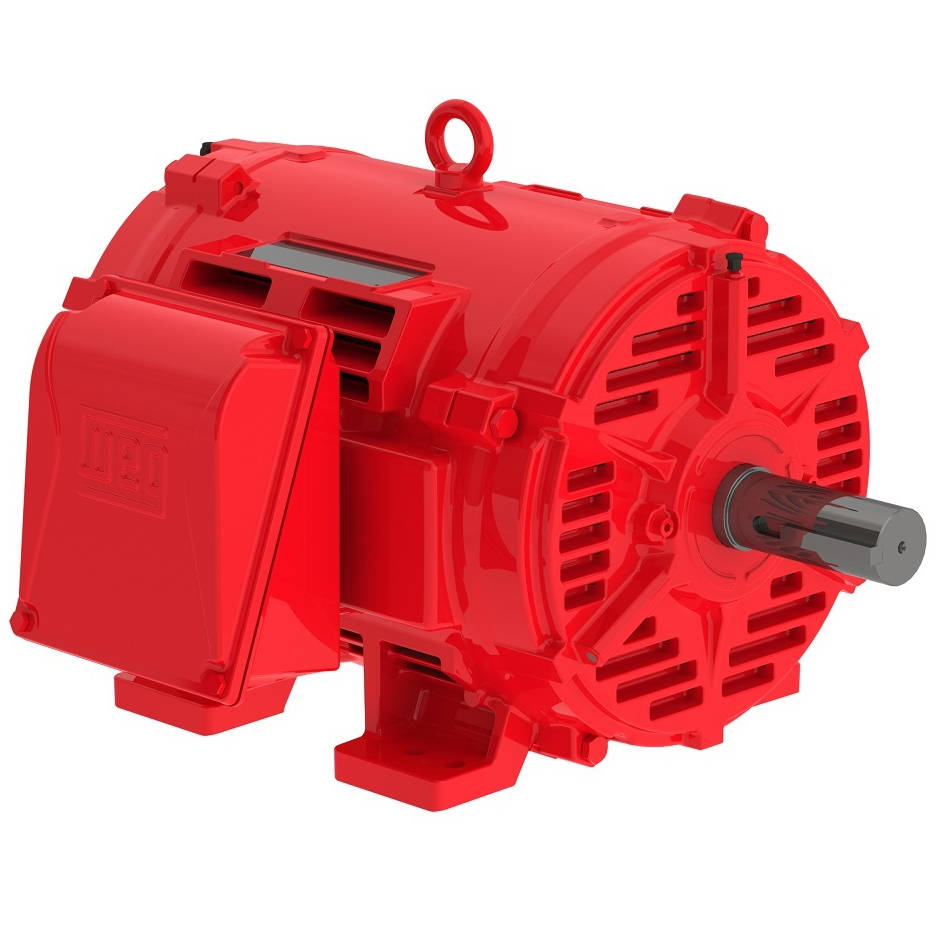

04036OP3EFP286TS-W40 WEG 40HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 04036OP3EFP286TS-W40

Selected accessories will also be added to cart

$2,067.75 / Each

Quantity:

IC01 - ODP, IP23, 284TS/286TS Frame, 230/460VAC 60Hz 3 Phase, 14490859, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	230/460 V
Rated current	94.4/47.2 A
L. R. Amperes	576/288 A
LRC	6.1x(Code G)
No load current	28.0/14.0 A
Rated torque	59.4 ft.lb
Locked rotor torque	170 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	1.91 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	336 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.78	0.86	0.87

Frame	284/6TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	57.1 A
L. R. Amperes	308 A
LRC	5.4x(Code F)
No load current	12.0 A
Rated torque	71.9 ft.lb
Locked rotor torque	130 %
Breakdown torque	200 %
Locked rotor time	9s (cold) 5s (hot)

Moment of inertia (J)	1.91 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	336 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.5	89.7

Power factor

50%	75%	100%
0.83	0.88	0.89

Frame	284/6TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	53.8 A
L. R. Amperes	339 A
LRC	6.3x(Code G)
No load current	13.0 A
Rated torque	71.7 ft.lb
Locked rotor torque	150 %
Breakdown torque	200 %
Locked rotor time	9s (cold) 5s (hot)

Moment of inertia (J)	1.91 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	336 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.2	90.4

Power factor

50%	75%	100%
0.79	0.86	0.89

Frame	284/6TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	415 V
Rated current	52.2 A
L. R. Amperes	350 A
LRC	6.7x(Code G)
No load current	15.0 A
Rated torque	71.6 ft.lb
Locked rotor torque	160 %
Breakdown torque	220 %
Locked rotor time	9s (cold) 5s (hot)

Moment of inertia (J)	1.91 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	336 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	90.8

Power factor

50%	75%	100%
0.76	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
