/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, C-Face/04018OT3E324TSCF2-W40 WEG 40HP, General Purpose Electric Motor, 1800RPM

Product ID: 04018OT3E324TSCF2-W4

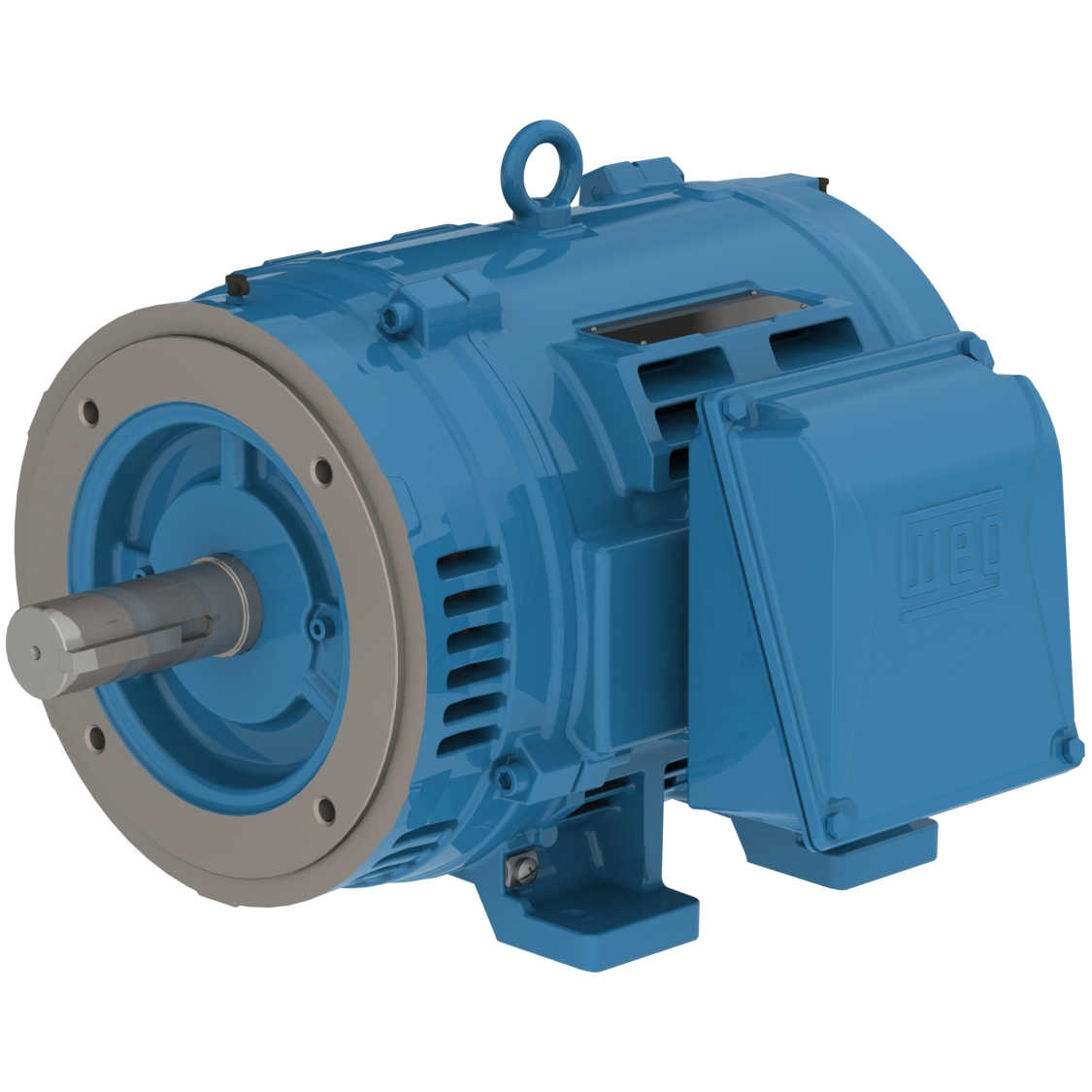

04018OT3E324TSCF2-W40 WEG 40HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 04018OT3E324TSCF2-W40

Selected accessories will also be added to cart

$2,411.25 / Each

Quantity:

IC01 - ODP, IP23, 324TSC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14493937, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	324TSC
Output	40 HP (30 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	230/460 V
Rated current	95.2/47.6 A
L. R. Amperes	590/295 A
LRC	6.2x(Code G)
No load current	37.0/18.5 A
Rated torque	118 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	5.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	568 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	324TSC
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	43.3 A
L. R. Amperes	290 A
LRC	6.7x(Code H)
No load current	18.3 A
Rated torque	107 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	5.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	568 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.6	93.0	93.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Frame	324TSC
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	42.2 A
L. R. Amperes	283 A
LRC	6.7x(Code H)
No load current	20.3 A
Rated torque	106 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	5.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	568 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.6	93.0	93.0

Power factor

50%	75%	100%
0.63	0.75	0.81

Frame	324TSC
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	41.7 A
L. R. Amperes	313 A
LRC	7.5x(Code J)
No load current	22.1 A
Rated torque	106 ft.lb
Locked rotor torque	280 %
Breakdown torque	330 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	5.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	568 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.5	93.0	93.0

Power factor

50%	75%	100%
0.59	0.72	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
