/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, Cast Iron/04018OP3HFP324TS-W40 WEG 40HP Fire Pump Electric Motor, 1800RPM

Product ID: 04018OP3HFP324TS-W40

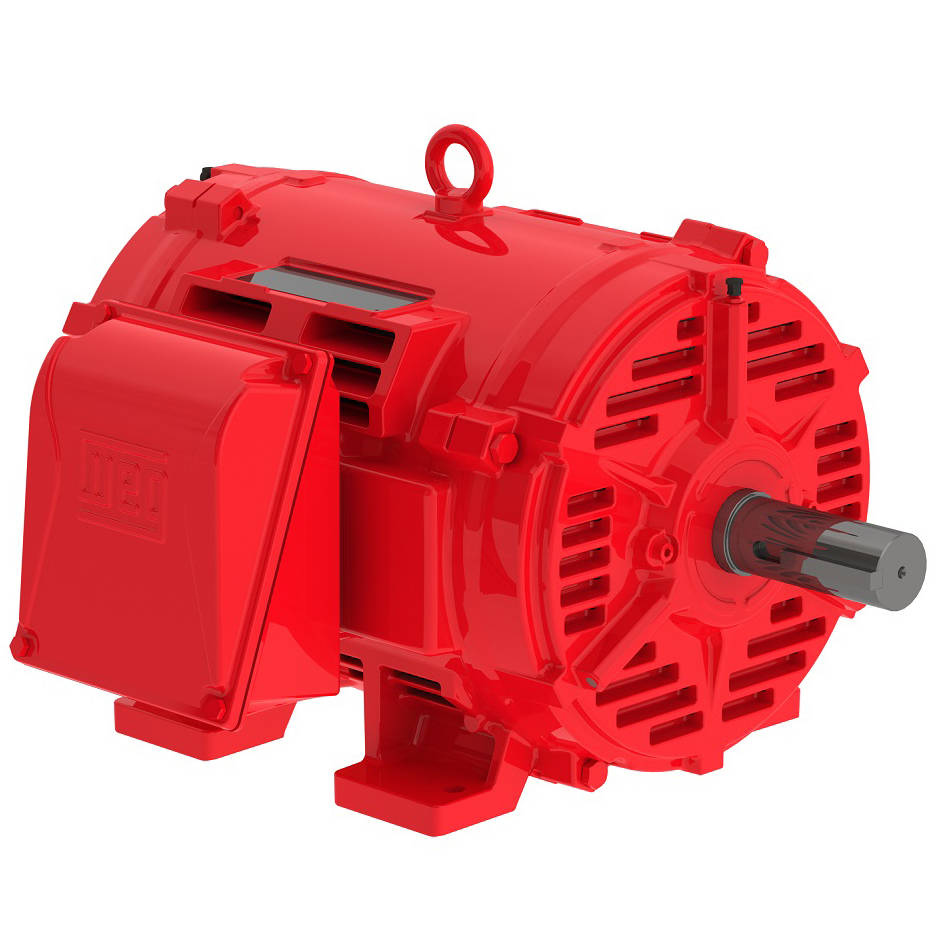

04018OP3HFP324TS-W40 WEG 40HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 04018OP3HFP324TS-W40

Selected accessories will also be added to cart

$1,989.00 / Each

Quantity:

IC01 - ODP, IP23, 324TS Frame, 575VAC 60Hz 3 Phase, 14490811, High Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	575 V
Rated current	38.6 A
L. R. Amperes	231 A
LRC	6.0x(Code G)
No load current	12.8 A
Rated torque	118 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	5.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.0

Power factor

50%	75%	100%
0.72	0.81	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
