/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/03036OT3E284TS-W40 WEG 30HP, General Purpose Electric Motor, 3600RPM

Product ID: 03036OT3E284TS-W40

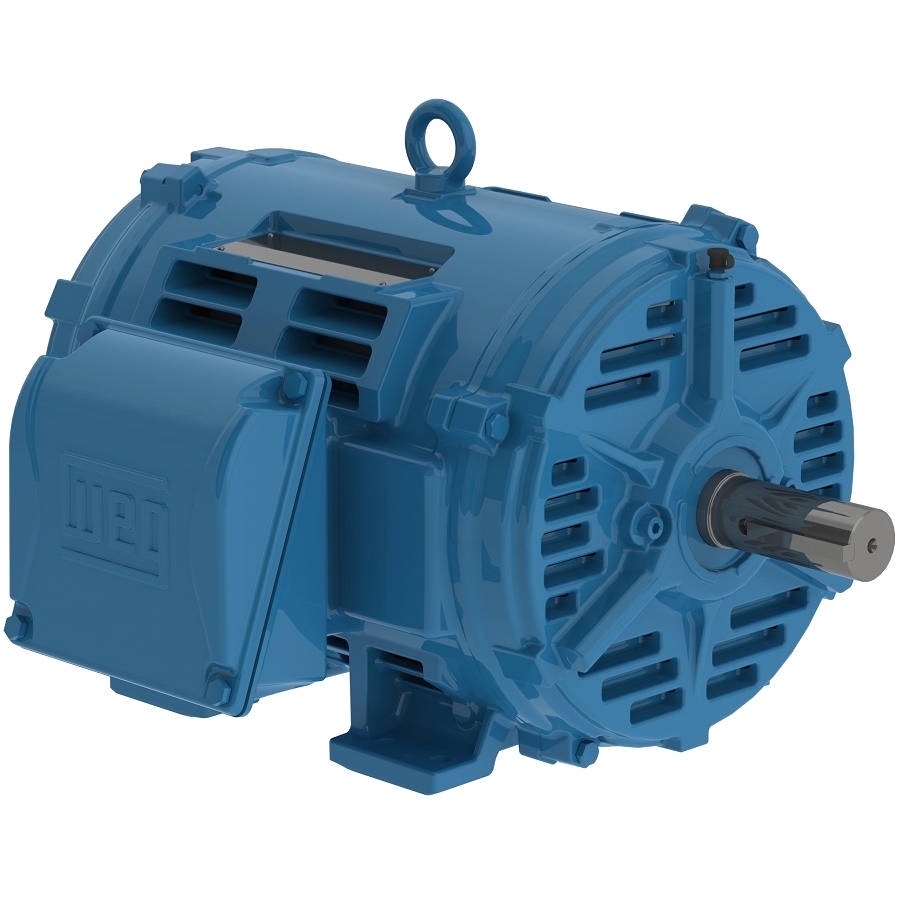

03036OT3E284TS-W40 WEG 30HP, General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 03036OT3E284TS-W40

Selected accessories will also be added to cart

$1,865.25 / Each

Quantity:

IC01 - ODP, IP23, 230/460/380VAC 50/60Hz 3 Phase, 14495932, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284TS
Output	30 HP (22 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3550 rpm
Slip	1.39 %
Rated voltage	230/460 V
Rated current	70.0/35.0 A
L. R. Amperes	441/221 A
LRC	6.3x(Code G)
No load current	25.8/12.9 A
Rated torque	44.4 ft.lb
Locked rotor torque	180 %
Breakdown torque	260 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	1.59 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.7	91.7

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	284TS
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	35.0 A
L. R. Amperes	231 A
LRC	6.6x(Code G)
No load current	11.0 A
Rated torque	44.7 ft.lb
Locked rotor torque	170 %
Breakdown torque	240 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	1.59 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.7	90.7	92.4

Power factor

50%	75%	100%
0.75	0.83	0.87

Frame	284TS
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	34.0 A
L. R. Amperes	238 A
LRC	7.0x(Code H)
No load current	13.0 A
Rated torque	44.5 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	1.59 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.8	90.8	92.4

Power factor

50%	75%	100%
0.70	0.80	0.85

Frame	284TS
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	33.6 A
L. R. Amperes	225 A
LRC	6.7x(Code H)
No load current	14.0 A
Rated torque	44.4 ft.lb
Locked rotor torque	200 %
Breakdown torque	270 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	1.59 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.8	90.8	92.4

Power factor

50%	75%	100%
0.66	0.77	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
