/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/03036ET3E286HPH-W22 WEG 30HP P-Base Pump Electric Motor, 3600RPM

Product ID: 03036ET3E286HPH-W22

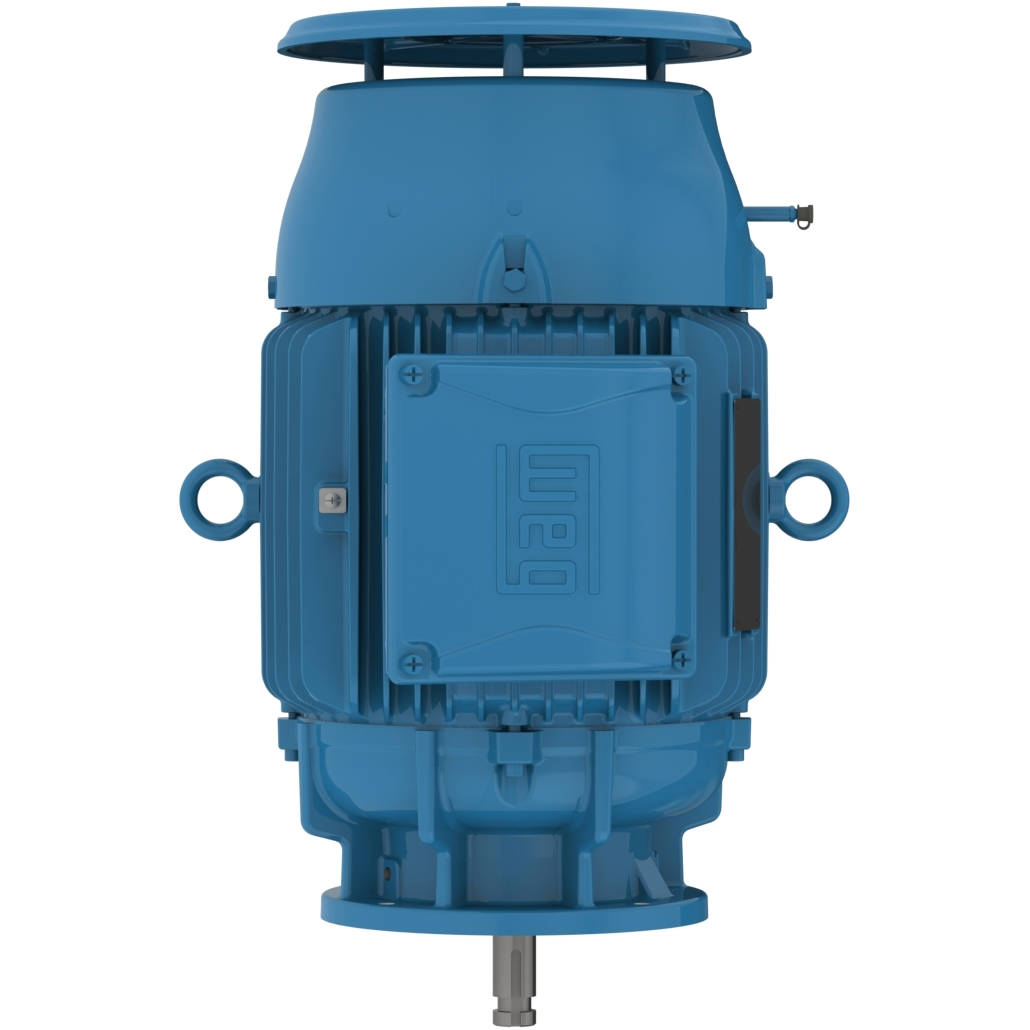

03036ET3E286HPH-W22 WEG 30HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 03036ET3E286HPH-W22

Selected accessories will also be added to cart

$3,273.75 / Each

Quantity:

IC411 - TEFC, IP55, 286HPH Frame, 230/460/380VAC 50/60Hz 3 Phase, 13501994, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-5/8" Shaft

Details
Purchase Components

Electric Motors

Frame	286HPH
Output	30 HP (22 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3540 rpm
Slip	1.67 %
Rated voltage	230/460 V
Rated current	68.4/34.2 A
L. R. Amperes	431/215 A
LRC	6.3x(Code G)
No load current	20.0/10.0 A
Rated torque	44.5 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	3.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	406 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.7	91.7

Power factor

50%	75%	100%
0.80	0.86	0.88

Frame	286HPH
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	380 V
Rated current	34.2 A
L. R. Amperes	202 A
LRC	5.9x(Code F)
No load current	9.00 A
Rated torque	44.7 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	3.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	406 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.5	92.4

Power factor

50%	75%	100%
0.80	0.87	0.89

Frame	286HPH
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	400 V
Rated current	32.8 A
L. R. Amperes	220 A
LRC	6.7x(Code G)
No load current	10.0 A
Rated torque	44.6 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	3.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	406 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.1	91.5	92.4

Power factor

50%	75%	100%
0.78	0.85	0.88

Frame	286HPH
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	31.7 A
L. R. Amperes	228 A
LRC	7.2x(Code H)
No load current	10.5 A
Rated torque	44.5 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	3.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	406 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.2	91.8	92.4

Power factor

50%	75%	100%
0.76	0.84	0.88

Frame	286HPH
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	42.0 A
L. R. Amperes	206 A
LRC	4.9x(Code E)
No load current	9.00 A
Rated torque	54.1 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	3.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	406 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	90.2	89.5

Power factor

50%	75%	100%
0.84	0.88	0.89

Frame	286HPH
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	39.6 A
L. R. Amperes	218 A
LRC	5.5x(Code F)
No load current	10.0 A
Rated torque	54.0 ft.lb
Locked rotor torque	180 %
Breakdown torque	220 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	3.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	406 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.0	90.2

Power factor

50%	75%	100%
0.82	0.87	0.89

Frame	286HPH
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	415 V
Rated current	37.8 A
L. R. Amperes	227 A
LRC	6.0x(Code F)
No load current	10.5 A
Rated torque	53.7 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	3.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	406 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.7	91.0

Power factor

50%	75%	100%
0.80	0.86	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
