/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Fire Pump/03030OP3OFP284TS-W40 WEG 30HP Fire Pump Electric Motor, 3000RPM

Product ID: 03030OP3OFP284TS-W40

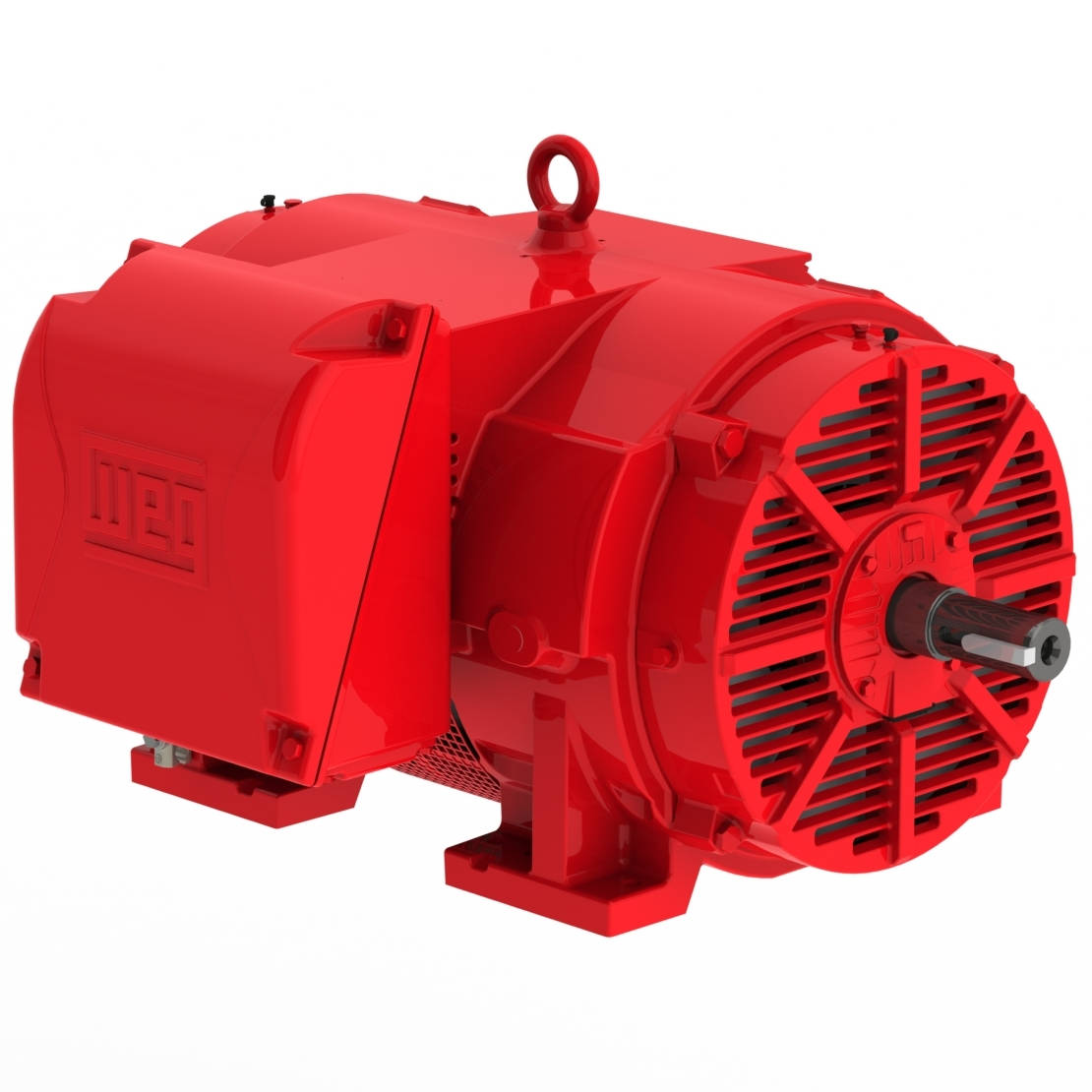

03030OP3OFP284TS-W40 WEG 30HP Fire Pump Electric Motor, 3000RPM

MFG: WEG Electric Corporation
MFG Part Number: 03030OP3OFP284TS-W40

Selected accessories will also be added to cart

$1,753.50 / Each

Quantity:

IC01 - ODP, IP23, 284TS Frame, 380-400-415VAC 50Hz 3 Phase, 15676555, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284TS
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2936 rpm
Slip	2.13 %
Rated voltage	380 V
Rated current	42.2 A
L. R. Amperes	249 A
LRC	5.9x(Code F)
No load current	12.2 A
Rated torque	53.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	200 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	1.76 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +50°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	324 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.8	91.0	91.0

Power factor

50%	75%	100%
0.77	0.84	0.87

Frame	284TS
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	400 V
Rated current	41.1 A
L. R. Amperes	259 A
LRC	6.3x(Code G)
No load current	13.9 A
Rated torque	53.5 ft.lb
Locked rotor torque	240 %
Breakdown torque	220 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	1.76 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +50°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	324 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.8	91.0	91.0

Power factor

50%	75%	100%
0.73	0.81	0.85

Frame	284TS
Output	30 HP (22 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2954 rpm
Slip	1.53 %
Rated voltage	415 V
Rated current	40.0 A
L. R. Amperes	264 A
LRC	6.6x(Code H)
No load current	14.9 A
Rated torque	53.3 ft.lb
Locked rotor torque	280 %
Breakdown torque	250 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	1.76 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +50°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	73.0 dB(A)
Approx. weight³	324 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.69	0.79	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
