/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/03018OT3E286T-W40 WEG 30HP, General Purpose Electric Motor, 1800RPM

Product ID: 03018OT3E286T-W40

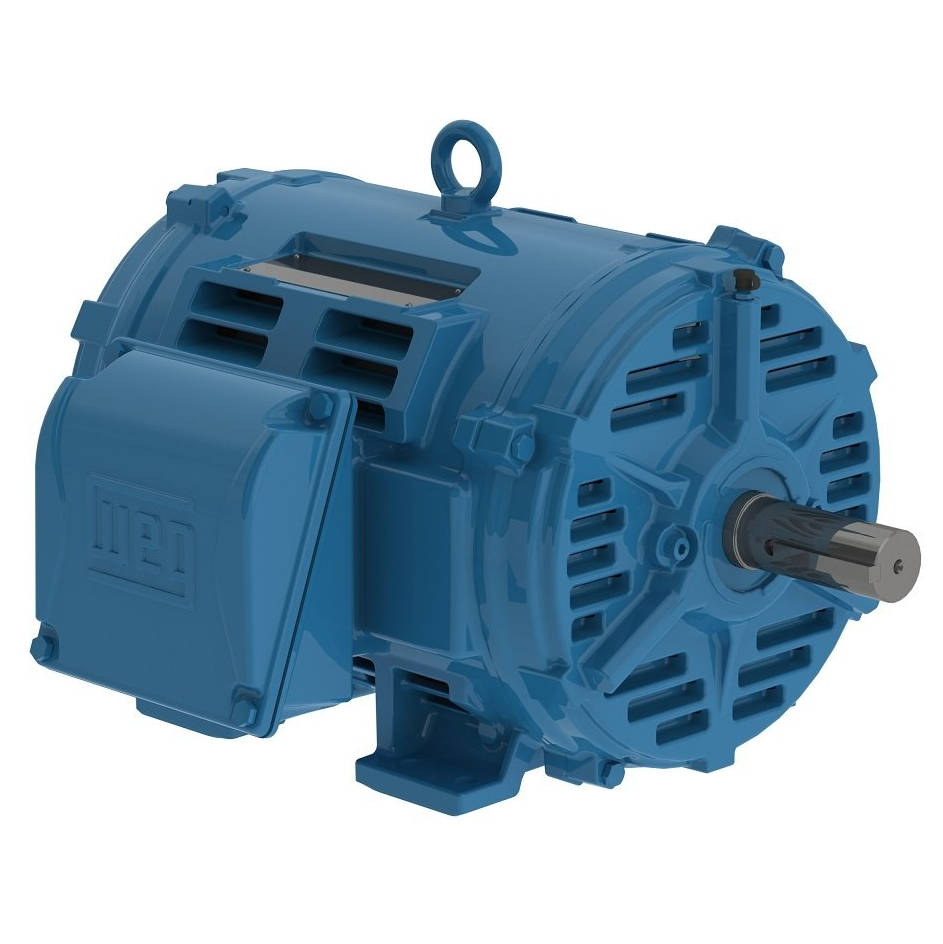

03018OT3E286T-W40 WEG 30HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018OT3E286T-W40

Selected accessories will also be added to cart

$1,897.50 / Each

Quantity:

IC01 - ODP, 284T/286T Frame, 208-230/460VAC 3-Phase 50/60Hz, 14448032, Cast Iron, Foot Mount, 1-7/8" Keyed Shaft, NEMA Premium Efficiency

Details
Purchase Components

Frame	284/6T
Output	30 HP (22 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	208-230/460 V
Rated current	77.2-69.8/34.9 A
L. R. Amperes	509-461/230 A
LRC	6.6x(Code G)
No load current	25.0-29.0/14.5 A
Rated torque	87.8 ft.lb
Locked rotor torque	280 %
Breakdown torque	280 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	4.52 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	397 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
