/Products/Electric Motors/3 Phase/WEG/Air Handling/Pad Mount/03018ET3EPM284/6Y-W22 WEG 30HP Pad Mount Electric Motor, 1800RPM

Product ID: 03018ET3EPM284/6Y-W2

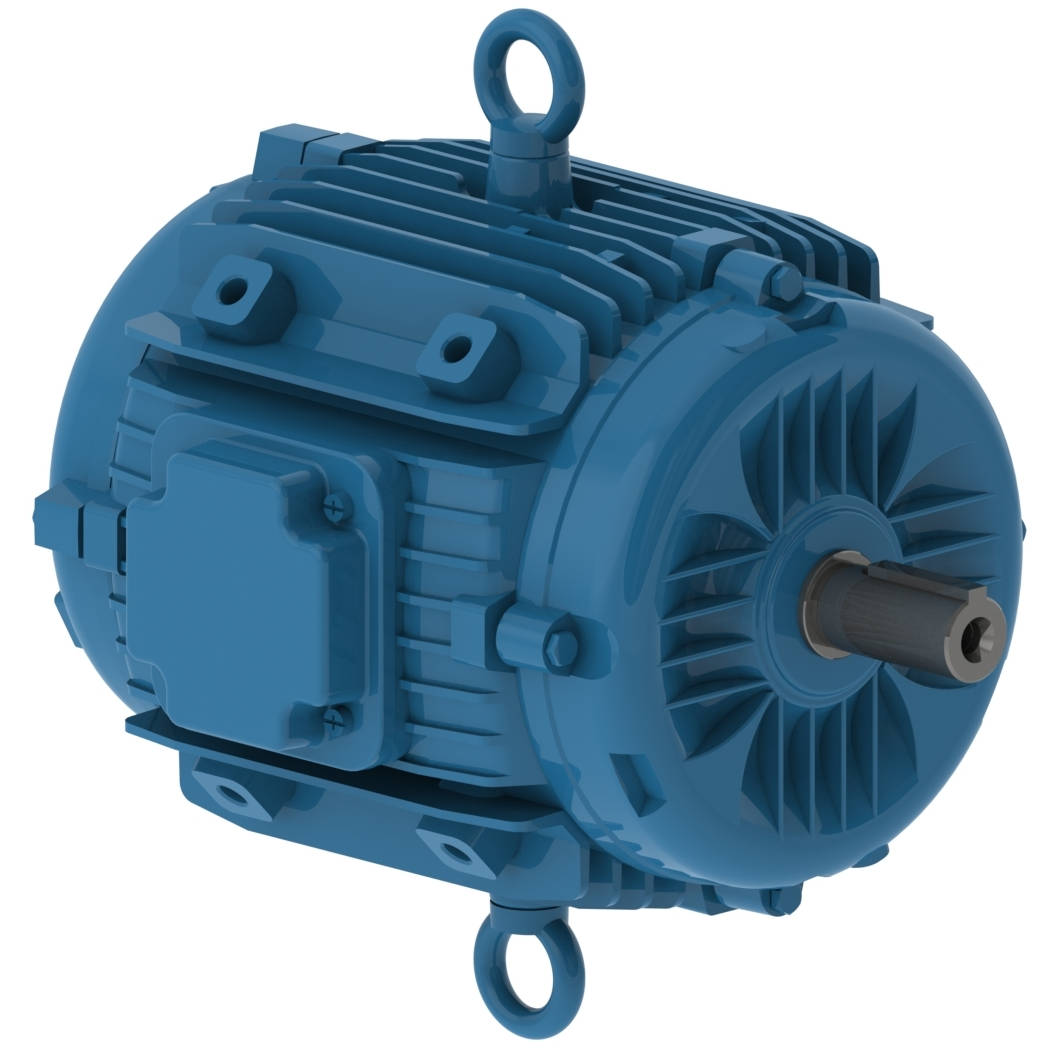

03018ET3EPM284/6Y-W22 WEG 30HP Pad Mount Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018ET3EPM284/6Y-W22

Selected accessories will also be added to cart

$2,707.50 / Each

Quantity:

IC410 - TEAO, IP55, 286Y Frame, 208-230/460VAC 60Hz 3 Phase, 13689302, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	286Y
Output	30 HP (22 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	77.7-70.2/35.1 A
L. R. Amperes	474-428/214 A
LRC	6.1x(Code G)
No load current	22.4-26.0/13.0 A
Rated torque	89.3 ft.lb
Locked rotor torque	240 %
Breakdown torque	240 %

Locked rotor time	36s (cold) 20s (hot)
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	437 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	93.6

Power factor

50%	75%	100%
0.70	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
