/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Brake/03018ET3EBM286T-W22 WEG 30HP Electric Brake Motor, 1800RPM

Product ID: 03018ET3EBM286T-W22

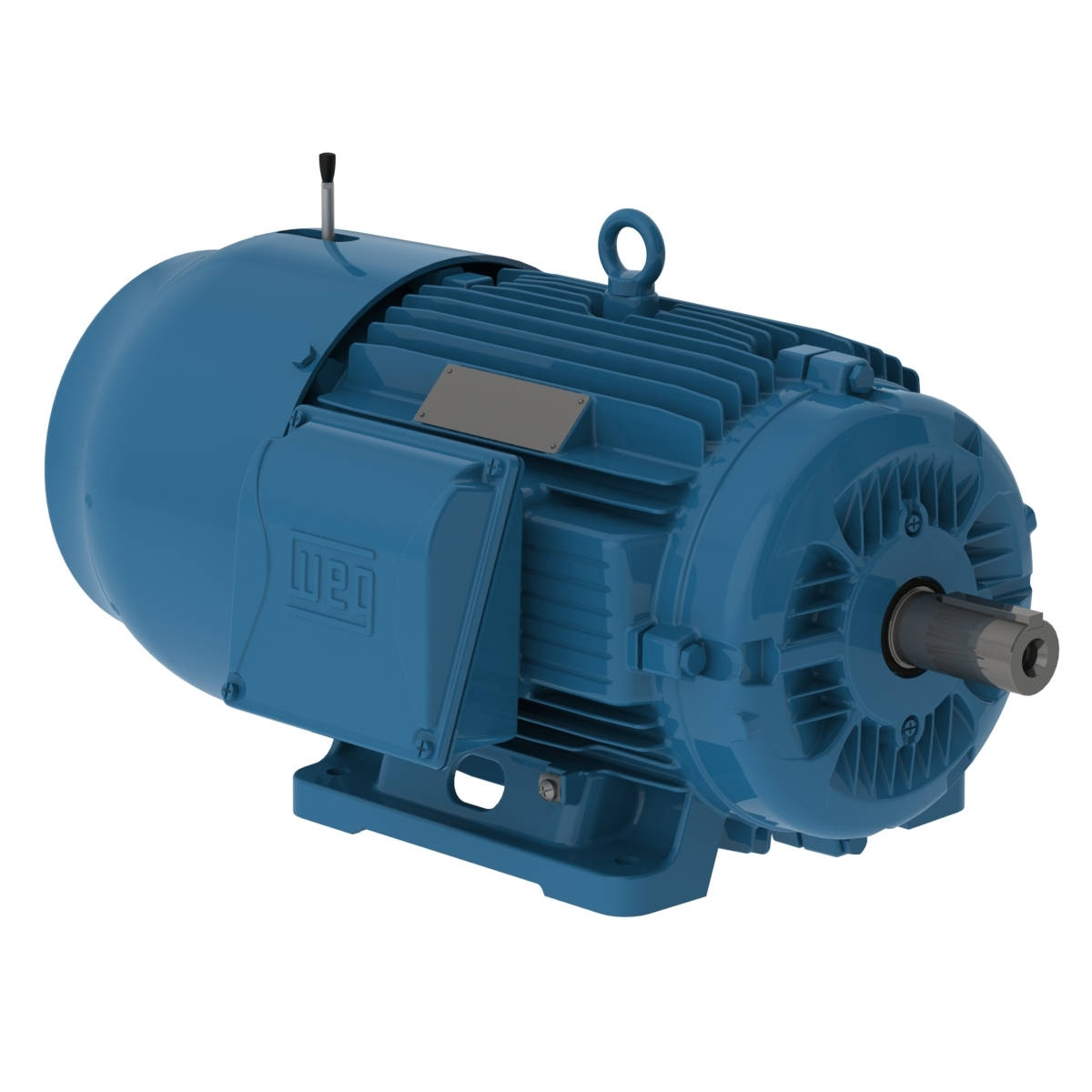

03018ET3EBM286T-W22 WEG 30HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018ET3EBM286T-W22

Selected accessories will also be added to cart

$5,457.00 / Each

Quantity:

IC411 - TEFC, IP55, 284T/286T Frame, 230/460VAC 60Hz 3 Phase, 13467642, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6T
Output	30 HP (22 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	70.2/35.1 A
L. R. Amperes	428/214 A
LRC	6.1x(Code G)
No load current	26.0/13.0 A
Rated torque	89.3 ft.lb
Locked rotor torque	240 %
Breakdown torque	240 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	5.85 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	541 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	93.6

Power factor

50%	75%	100%
0.70	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Aluminum
Brake Type	WEG - 345.0 Nm
Brake input Voltage	220-240 V
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
