/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, Rolled Steel/02536OP3VFP256T-S WEG 25HP Fire Pump Electric Motor, 3600RPM

Product ID: 02536OP3VFP256T-S

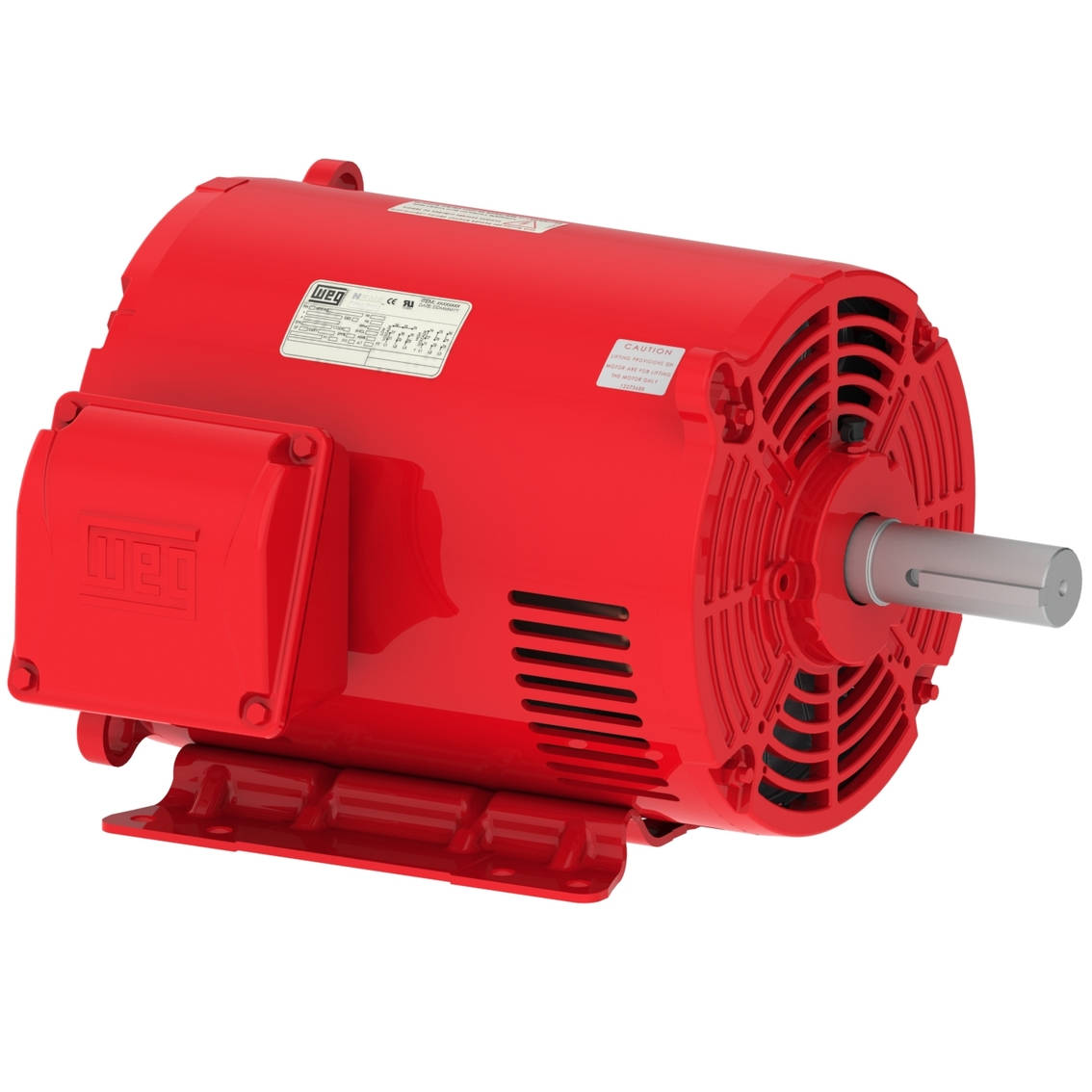

02536OP3VFP256T-S WEG 25HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536OP3VFP256T-S

Selected accessories will also be added to cart

$1,337.25 / Each

Quantity:

IC01 - ODP, 254T/256T Frame, 200/400VAC 60Hz 3 Phase, 12876173, High Efficiency, Foot Mounted, Rolled Steel, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254/6T
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	200/400 V
Rated current	66.7/33.3 A
L. R. Amperes	414/207 A
LRC	6.2x(Code G)
No load current	25.7/12.9 A
Rated torque	37.2 ft.lb
Locked rotor torque	180 %
Breakdown torque	280 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	170 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.75	0.84	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
