/Products/Electric Motors/3 Phase Explosion Proof/WEG/C-Face, Footless/02518XT3ER284TC WEG 25HP Explosion Proof Electric Motor, 1800RPM

Product ID: 02518XT3ER284TC

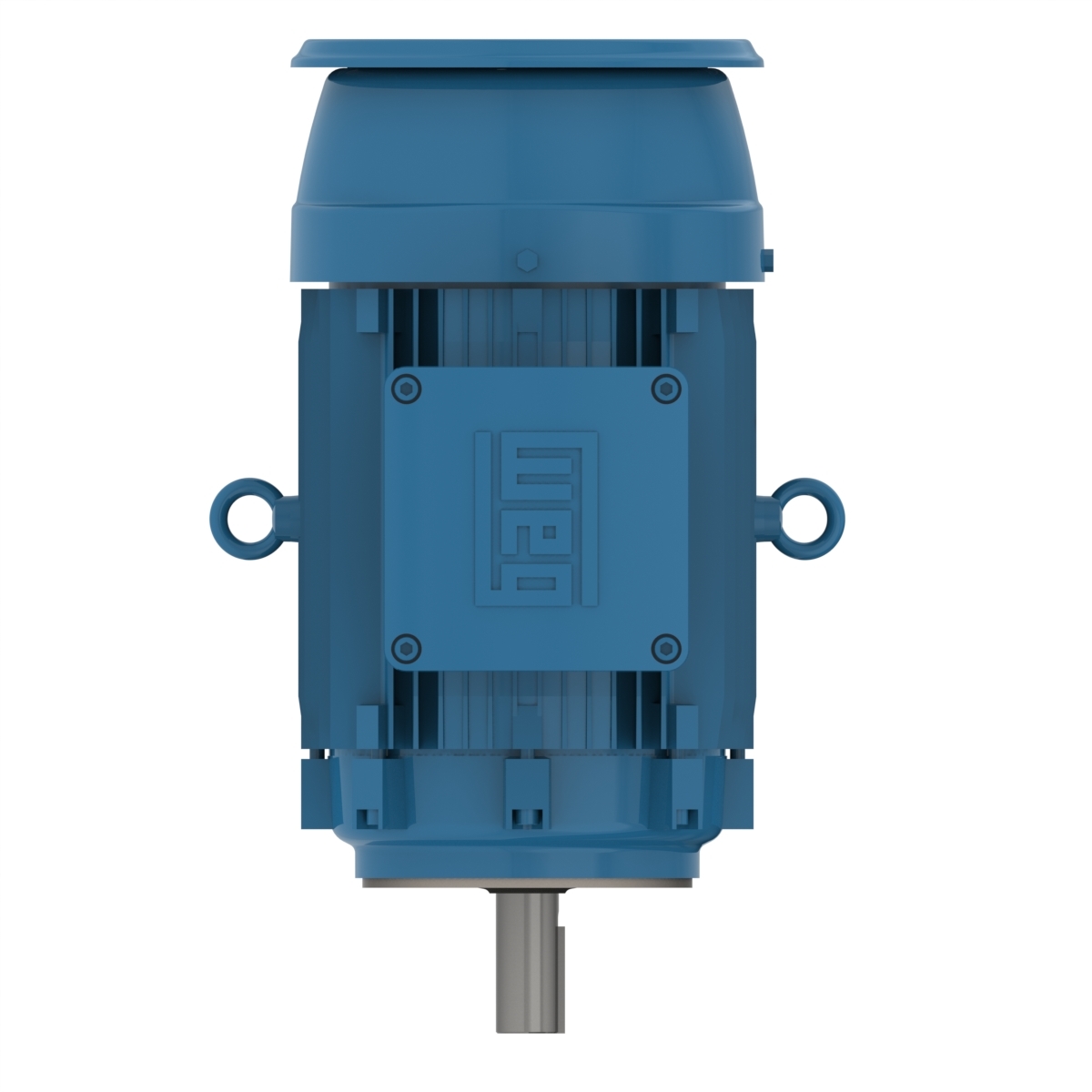

02518XT3ER284TC WEG 25HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518XT3ER284TC

Selected accessories will also be added to cart

$3,255.00 / Each

Quantity:

IC411 - TEFC, 284TC Frame, 208-230/460V 3-Phase 60Hz, Footless, 14407648

Details
Purchase Components

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. All ratings meet NEMA Premium Efficiency. Motors are certified for VFD service.

Product features

Standard	NEMA MG-1
Frequency	60 Hz
Voltage	208-230/460 V
Number of poles	4
Degree of Protection	IP55
Synchronous speed	1800 rpm

Output rating	25 HP
Mounting	Footless
Flange	C
Mounting	W-6
Terminal box¹	Left position
Enclosure	IC411 - TEFC

Electric Motors

Frame	284TC
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	208-230/460 V
Rated current	66.1-59.8/29.9 A
L. R. Amperes	542-490/245 A
LRC	8.2x(Code J)
No load current	23.3-27.0/13.5 A
Rated torque	73.0 ft.lb
Locked rotor torque	320 %
Breakdown torque	320 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	4.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	484 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.6	93.6

Power factor

50%	75%	100%
0.67	0.78	0.83

Frame	284TC
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	36.5 A
L. R. Amperes	234 A
LRC	6.4x(Code G)
No load current	13.5 A
Rated torque	88.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	240 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	4.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	484 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.4	91.7

Power factor

50%	75%	100%
0.72	0.81	0.84

Frame	284TC
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	34.8 A
L. R. Amperes	247 A
LRC	7.1x(Code H)
No load current	14.3 A
Rated torque	88.4 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	4.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	484 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.4	92.4

Power factor

50%	75%	100%
0.70	0.79	0.83

Frame	284TC
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	34.0 A
L. R. Amperes	258 A
LRC	7.6x(Code J)
No load current	15.0 A
Rated torque	88.4 ft.lb
Locked rotor torque	260 %
Breakdown torque	270 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	4.54 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	484 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
