/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/JM Close-Coupled Pump/02518OT3H284JM-W40 WEG 25HP JM Close-Couple Pump Electric Motor, 1800RPM

Product ID: 02518OT3H284JM-W40

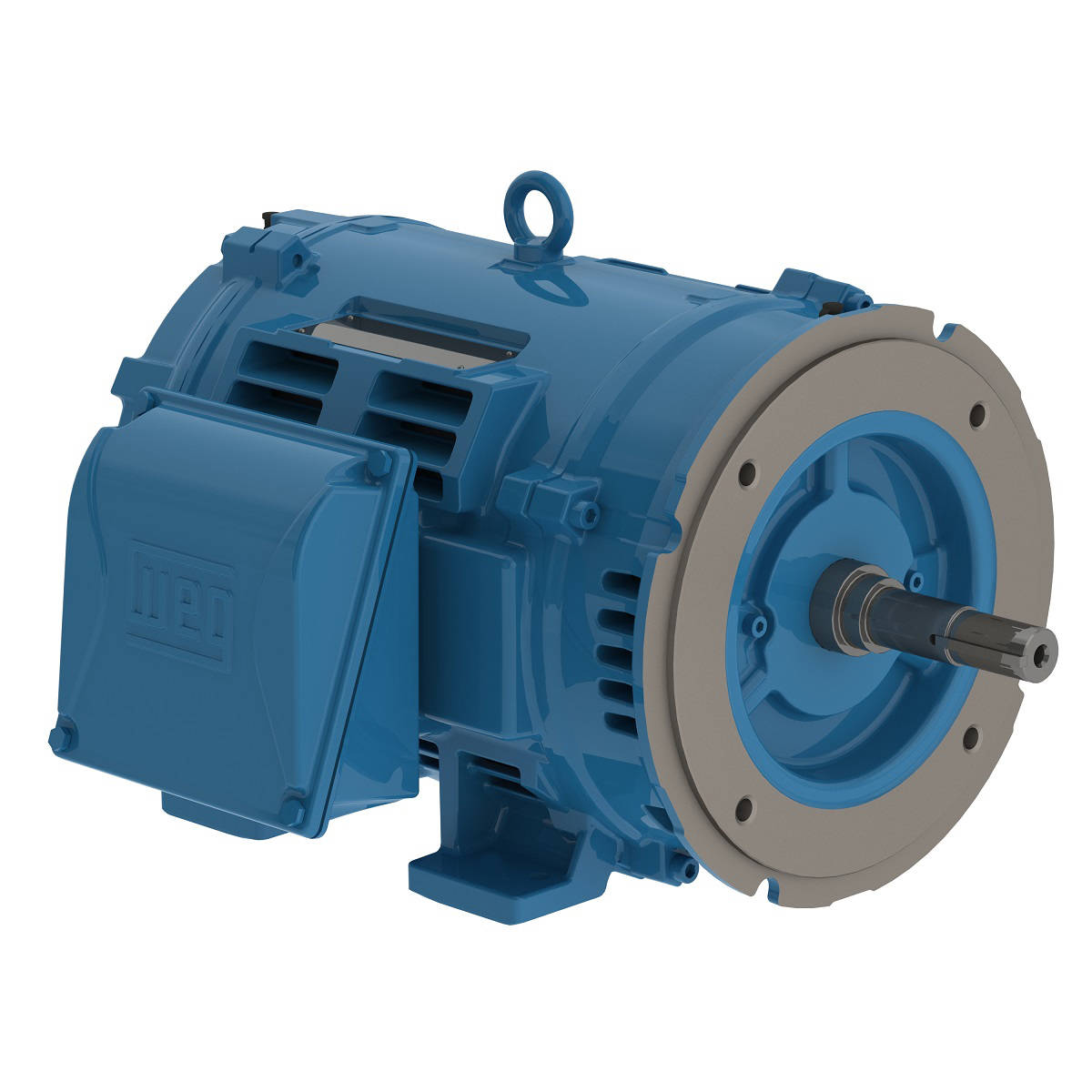

02518OT3H284JM-W40 WEG 25HP JM Close-Couple Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518OT3H284JM-W40

Selected accessories will also be added to cart

$2,184.00 / Each

Quantity:

IC01 - ODP, IP23, 284JM Frame, 575VAC 60Hz 3 Phase, 14484575, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	284JM
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	575 V
Rated current	23.6 A
L. R. Amperes	149 A
LRC	6.3x(Code G)
No load current	8.80 A
Rated torque	74.4 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %
Locked rotor time	64s (cold) 36s (hot)

Moment of inertia (J)	3.71 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	400 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.6	93.6

Power factor

50%	75%	100%
0.69	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
