/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, AEGIS SGR/02518OT3E284T-W40G WEG 25HP, General Purpose Electric Motor, 1800RPM

Product ID: 02518OT3E284T-W40G

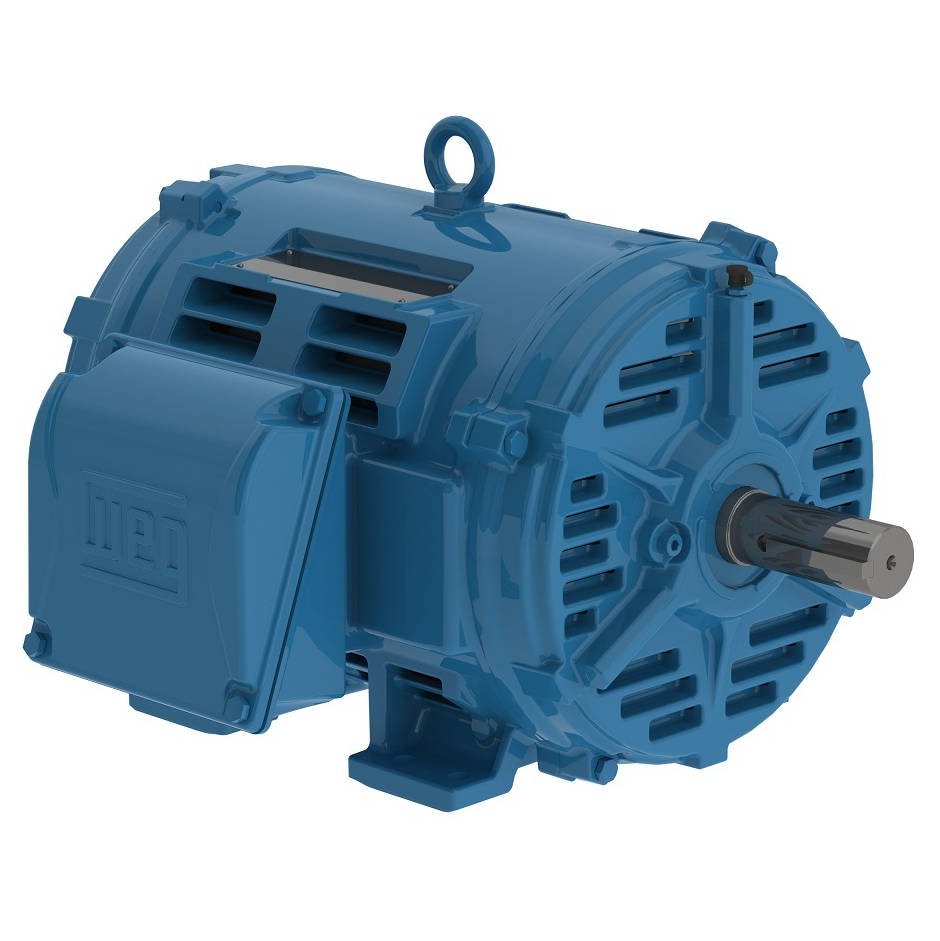

02518OT3E284T-W40G WEG 25HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518OT3E284T-W40G

Selected accessories will also be added to cart

$1,852.50 / Each

Quantity:

IC01 - ODP, IP23, 284T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14503702, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	59.0/29.5 A
L. R. Amperes	372/186 A
LRC	6.3x(Code G)
No load current	22.0/11.0 A
Rated torque	74.4 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %
Locked rotor time	64s (cold) 36s (hot)

Moment of inertia (J)	3.71 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	352 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.6	93.6

Power factor

50%	75%	100%
0.69	0.80	0.84

Frame	284T
Output	20 HP (15 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	29.5 A
L. R. Amperes	171 A
LRC	5.8x(Code G)
No load current	10.0 A
Rated torque	71.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	70s (cold) 39s (hot)

Moment of inertia (J)	3.71 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	352 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.1	92.1

Power factor

50%	75%	100%
0.69	0.79	0.84

Frame	284T
Output	20 HP (15 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	28.7 A
L. R. Amperes	192 A
LRC	6.7x(Code H)
No load current	11.0 A
Rated torque	71.4 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	64s (cold) 36s (hot)

Moment of inertia (J)	3.71 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	352 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.1	92.1

Power factor

50%	75%	100%
0.65	0.77	0.82

Frame	284T
Output	20 HP (15 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	28.0 A
L. R. Amperes	190 A
LRC	6.8x(Code H)
No load current	12.0 A
Rated torque	71.2 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	3.71 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	352 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.1	92.1

Power factor

50%	75%	100%
0.62	0.74	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
