/Products/Electric Motors/3 Phase/WEG/Fire Pump/Foot Mount, Cast Iron/02518OP3VFP284TS-W40 WEG 25HP Fire Pump Electric Motor, 1800RPM

Product ID: 02518OP3VFP284TS-W40

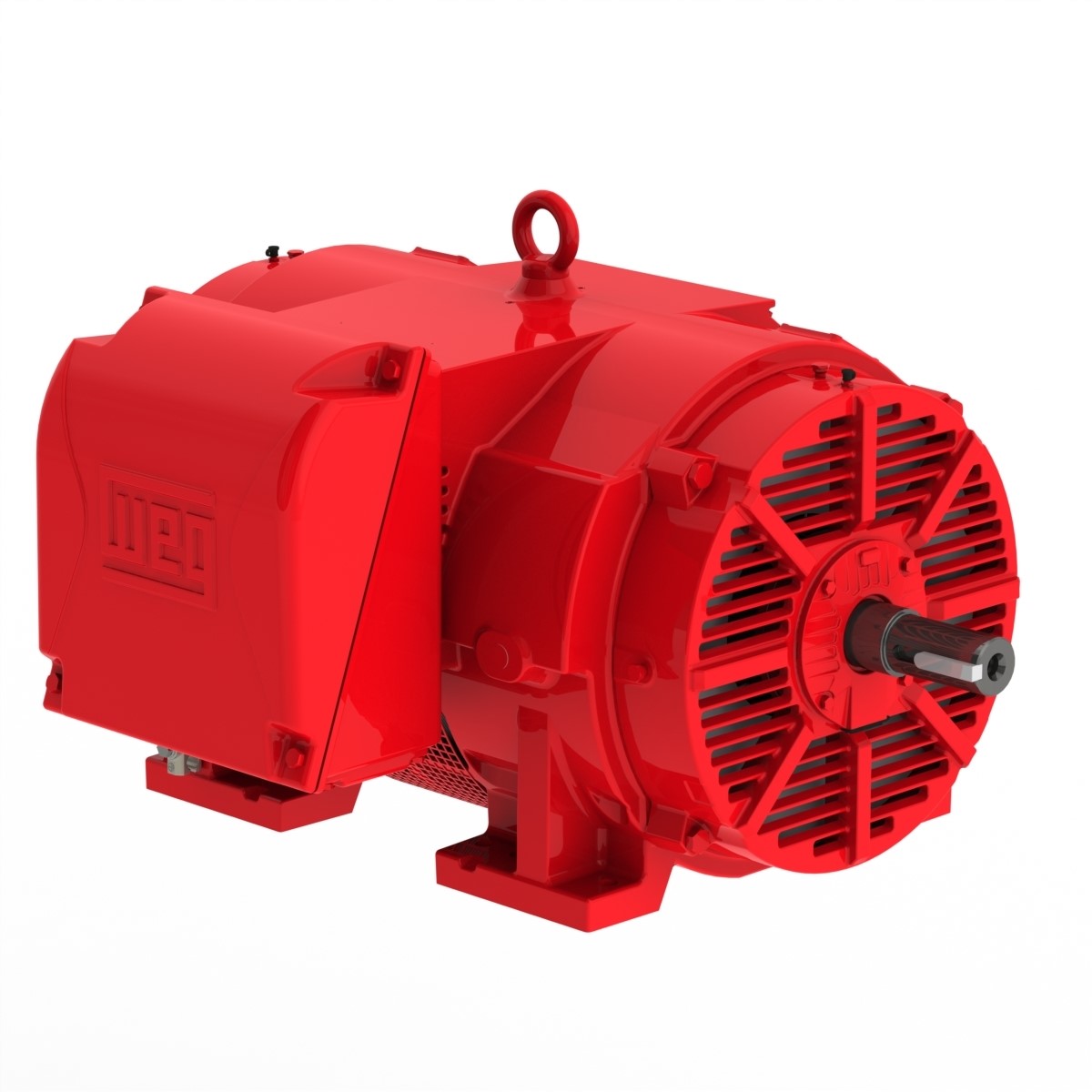

02518OP3VFP284TS-W40 WEG 25HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518OP3VFP284TS-W40

Selected accessories will also be added to cart

$1,349.25 / Each

Quantity:

IC01 - ODP, IP23, 284TS Frame, 200/400VAC 60Hz 3 Phase, 14490616, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284TS
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	200/400 V
Rated current	69.2/34.6 A
L. R. Amperes	415/208 A
LRC	6.0x(Code G)
No load current	23.0/11.5 A
Rated torque	74.4 ft.lb
Locked rotor torque	229 %
Breakdown torque	229 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	2.88 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	365 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.68	0.79	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
