/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/02518ET3E284HPH-W22 WEG 25HP P-Base Pump Electric Motor, 1800RPM

Product ID: 02518ET3E284HPH-W22

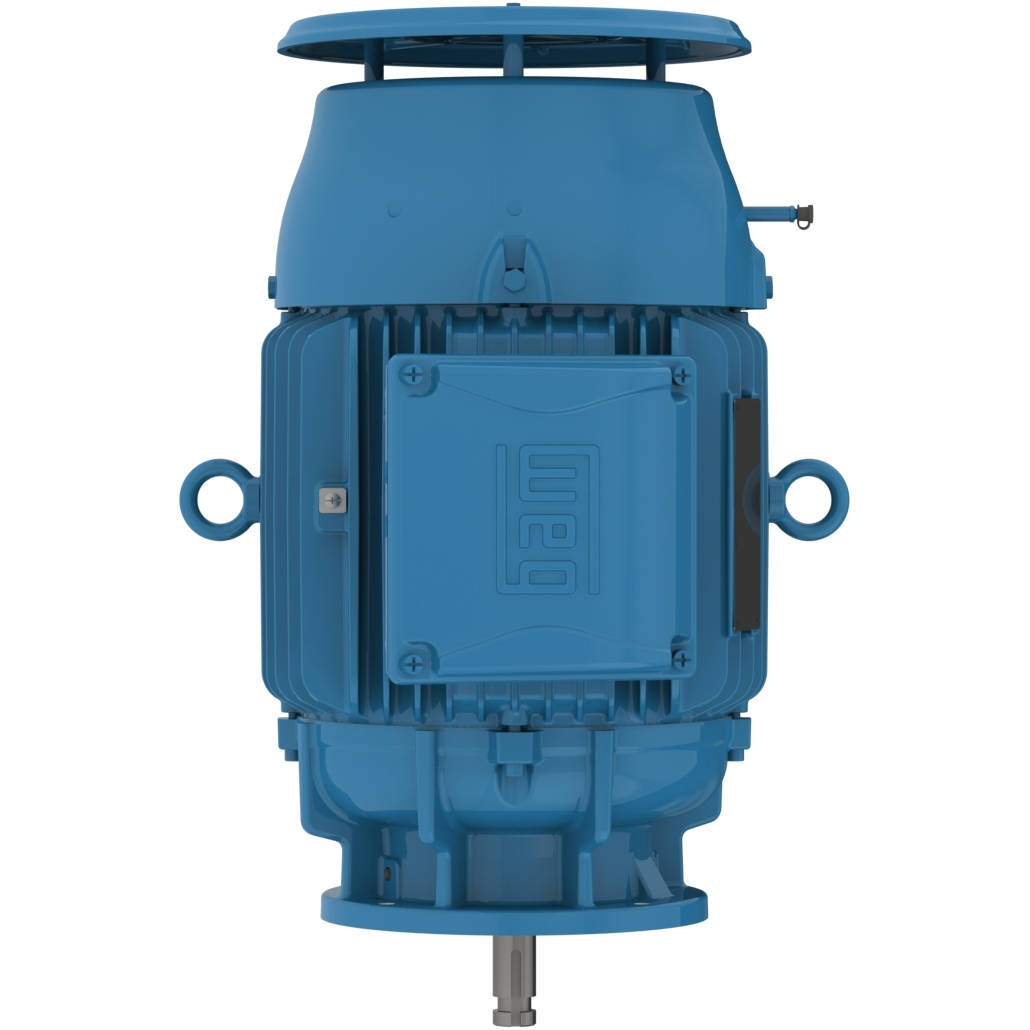

02518ET3E284HPH-W22 WEG 25HP P-Base Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518ET3E284HPH-W22

Selected accessories will also be added to cart

$2,718.00 / Each

Quantity:

IC411 - TEFC, IP55, 284HPH Frame, 230/460/380VAC 50/60Hz 3 Phase, 13181313, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-5/8" Shaft

Details
Purchase Components

Electric Motors

Frame	284HPH
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	59.0/29.5 A
L. R. Amperes	366/183 A
LRC	6.2x(Code G)
No load current	21.0/10.5 A
Rated torque	74.4 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	5.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	463 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.6

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	284HPH
Output	20 HP (15 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	29.1 A
L. R. Amperes	175 A
LRC	6.0x(Code G)
No load current	10.4 A
Rated torque	71.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	463 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.3	92.1	92.1

Power factor

50%	75%	100%
0.69	0.80	0.85

Frame	284HPH
Output	20 HP (15 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	28.2 A
L. R. Amperes	189 A
LRC	6.7x(Code H)
No load current	11.1 A
Rated torque	71.4 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	463 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.3	92.5	92.6

Power factor

50%	75%	100%
0.65	0.78	0.83

Frame	284HPH
Output	20 HP (15 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	27.5 A
L. R. Amperes	198 A
LRC	7.2x(Code J)
No load current	11.6 A
Rated torque	71.4 ft.lb
Locked rotor torque	290 %
Breakdown torque	330 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	463 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.2	92.5	92.7

Power factor

50%	75%	100%
0.62	0.75	0.82

Frame	284HPH
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	35.6 A
L. R. Amperes	174 A
LRC	4.9x(Code E)
No load current	10.4 A
Rated torque	90.9 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	463 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	91.7

Power factor

50%	75%	100%
0.76	0.84	0.86

Frame	284HPH
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	34.0 A
L. R. Amperes	187 A
LRC	5.5x(Code F)
No load current	11.1 A
Rated torque	90.2 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	463 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.4	92.4

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	284HPH
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	33.2 A
L. R. Amperes	196 A
LRC	5.9x(Code G)
No load current	11.6 A
Rated torque	89.9 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.11 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	463 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.4	92.4

Power factor

50%	75%	100%
0.70	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
