/Products/Electric Motors/3 Phase/WEG/Super Premium Efficiency/02518EG3E284T-W22 WEG 25HP Electric Motor, 1800RPM

Product ID: 02518EG3E284T-W22

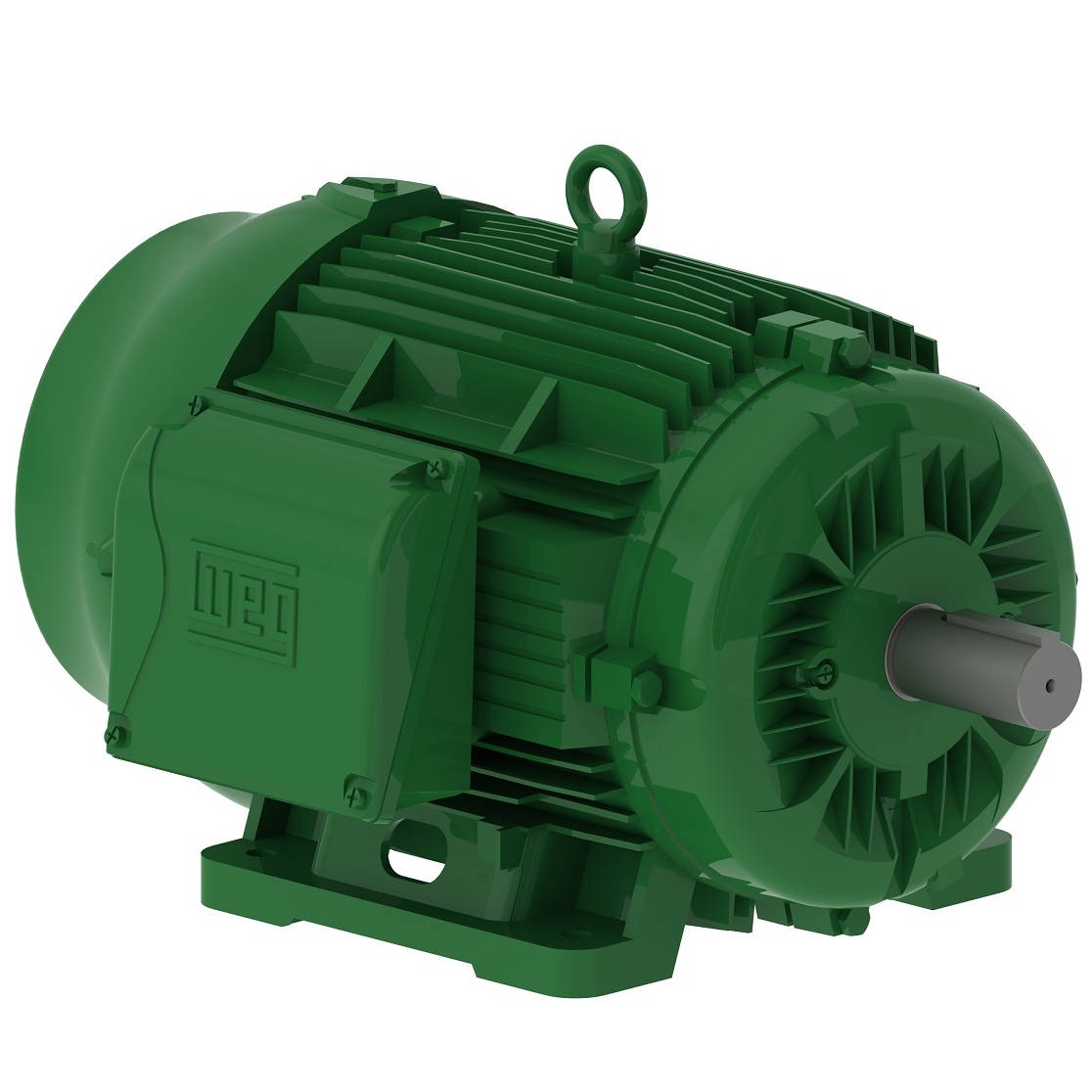

02518EG3E284T-W22 WEG 25HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518EG3E284T-W22

Selected accessories will also be added to cart

$2,262.75 / Each

Quantity:

IC411 - TEFC, IP55, 284T/286T Frame, 208-230/460/380VAC 60Hz 3 Phase, 12604498, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1777 rpm
Slip	1.28 %
Rated voltage	230/460 V
Rated current	60.6/30.3 A
L. R. Amperes	503/251 A
LRC	8.3x(Code K)
No load current	30.0/15.0 A
Rated torque	73.9 ft.lb
Locked rotor torque	390 %
Breakdown torque	390 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	4.94 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.1	94.5

Power factor

50%	75%	100%
0.62	0.74	0.81

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	35.7 A
L. R. Amperes	250 A
LRC	7.0x(Code H)
No load current	14.8 A
Rated torque	89.3 ft.lb
Locked rotor torque	260 %
Breakdown torque	280 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	4.94 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.6	93.6

Power factor

50%	75%	100%
0.69	0.79	0.84

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	34.8 A
L. R. Amperes	261 A
LRC	7.5x(Code J)
No load current	16.0 A
Rated torque	89.0 ft.lb
Locked rotor torque	290 %
Breakdown torque	310 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	4.94 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.6	93.6

Power factor

50%	75%	100%
0.65	0.77	0.82

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	33.8 A
L. R. Amperes	270 A
LRC	8.0x(Code J)
No load current	16.9 A
Rated torque	88.7 ft.lb
Locked rotor torque	320 %
Breakdown torque	340 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	4.94 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.1	94.1

Power factor

50%	75%	100%
0.62	0.74	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
