/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/02218ET3Y180L-W22 WEG 30HP/22kW IEC TRU-Metric Electric Motor, 1800RPM

Product ID: 02218ET3Y180L-W22

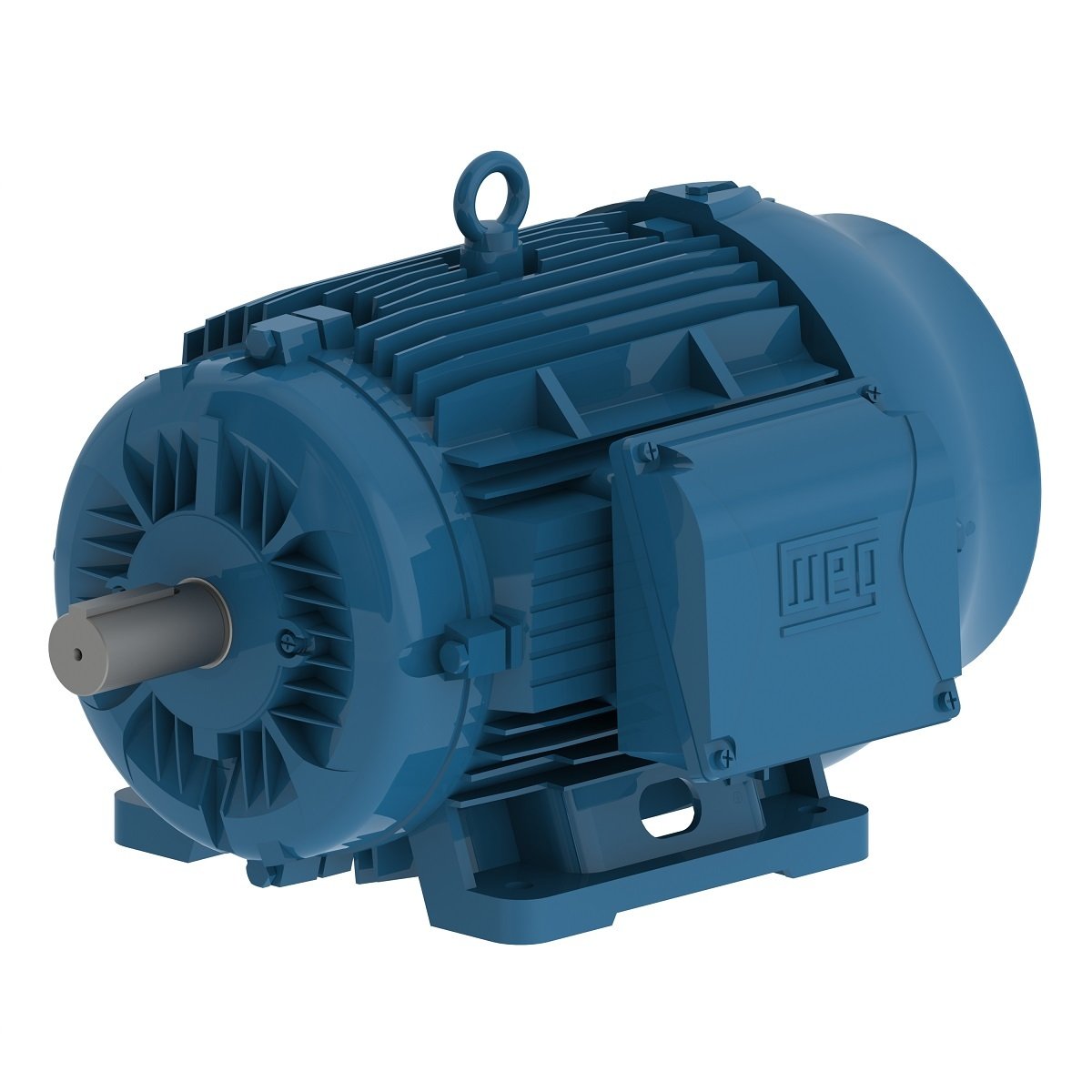

02218ET3Y180L-W22 WEG 30HP/22kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02218ET3Y180L-W22

Selected accessories will also be added to cart

$2,418.75 / Each

Quantity:

IC411-TEFC, IP55, 180L Frame, 460/380-415VAC, 3 Phase, 50/60Hz

Details
Purchase Components

Electric Motors

Frame	180L
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	42.1 A
L. R. Amperes	316 A
LRC	7.5
No load current	16.4 A
Rated torque	106 ft.lb
Locked rotor torque	280 %
Breakdown torque	290 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	93.1	93.4

Power factor

50%	75%	100%
0.70	0.80	0.85

Frame	180L
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	40.9 A
L. R. Amperes	335 A
LRC	8.2
No load current	18.0 A
Rated torque	106 ft.lb
Locked rotor torque	320 %
Breakdown torque	330 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	93.0	93.6

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	180L
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	40.4 A
L. R. Amperes	351 A
LRC	8.7
No load current	19.4 A
Rated torque	105 ft.lb
Locked rotor torque	350 %
Breakdown torque	360 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	5.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	92.8	93.6

Power factor

50%	75%	100%
0.62	0.74	0.81

Frame	180L
Output	30 HP (22 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	460 V
Rated current	36.0 A
L. R. Amperes	342 A
LRC	9.5
No load current	16.8 A
Rated torque	87.6 ft.lb
Locked rotor torque	380 %
Breakdown torque	390 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	5.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	449 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	92.4	93.6

Power factor

50%	75%	100%
0.65	0.76	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
