/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JM Close-Coupled Pump/Footless, Vertical/02036OT3E254JMV-S WEG 20HP JM Close-Coupled Pump Electric Motor, 3600RPM

Product ID: 02036OT3E254JMV-S

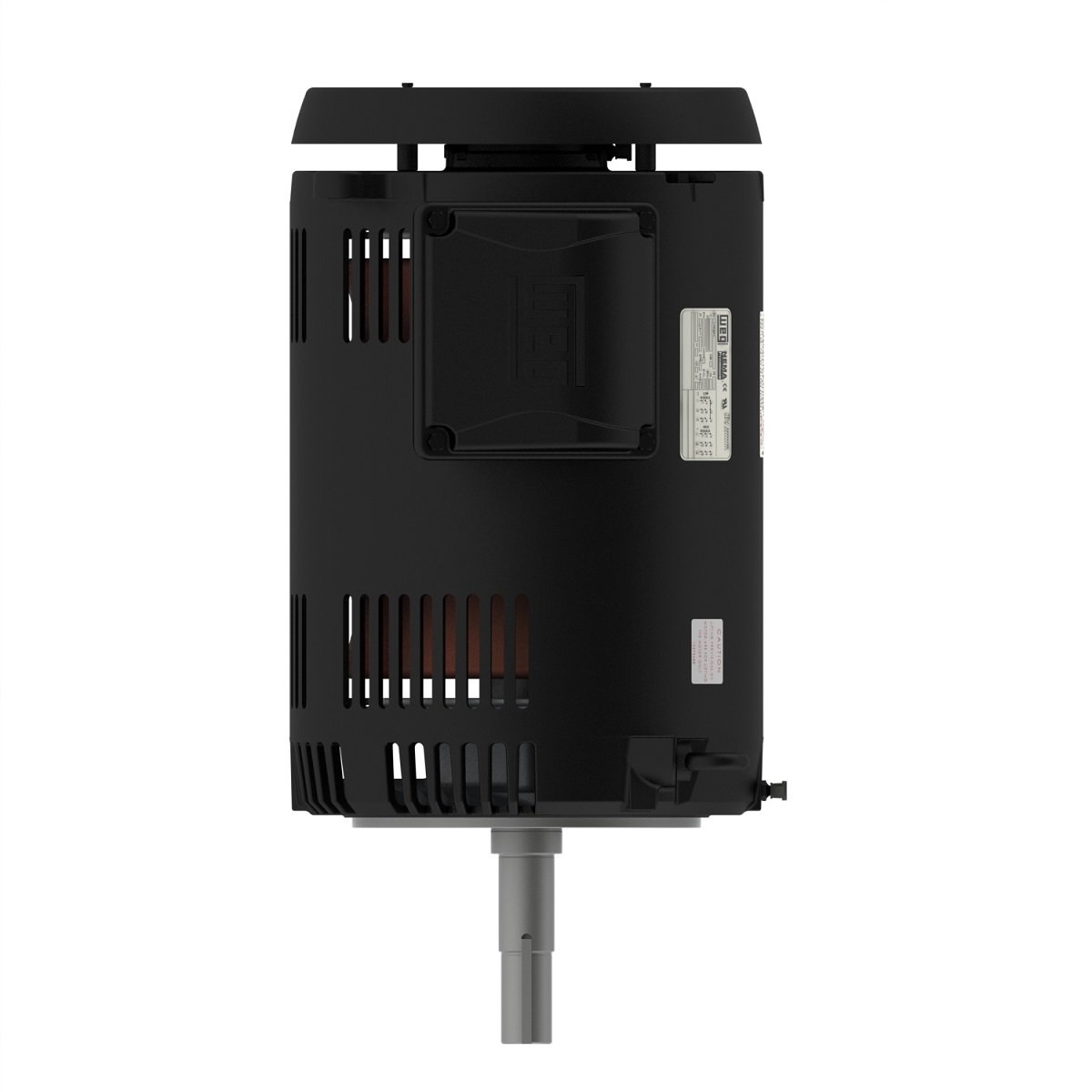

02036OT3E254JMV-S WEG 20HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036OT3E254JMV-S

Selected accessories will also be added to cart

$1,653.75 / Each

Quantity:

IC01 - ODP, 254JM/256JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13482985, Footless, Vertical Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	254/6JM
Output	20 HP (15 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3525 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	52.6-47.6/23.8 A
L. R. Amperes	316-286/143 A
LRC	6.0x(Code G)
No load current	14.7-17.0/8.50 A
Rated torque	29.4 ft.lb
Locked rotor torque	180 %
Breakdown torque	240 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	0.7848 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	177 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.76	0.83	0.87

Frame	254/6JM
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	190/380 V
Rated current	58.0/29.0 A
L. R. Amperes	261/131 A
LRC	4.5x(Code D)
No load current	16.2/8.09 A
Rated torque	35.8 ft.lb
Locked rotor torque	130 %
Breakdown torque	190 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.7848 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	177 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.6	89.5	87.2

Power factor

50%	75%	100%
0.82	0.88	0.90

Frame	254/6JM
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	50.4/26.7 A
L. R. Amperes	272/144 A
LRC	5.4x(Code F)
No load current	18.6/9.87 A
Rated torque	35.6 ft.lb
Locked rotor torque	150 %
Breakdown torque	229 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.7848 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	177 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.5	90.2	88.8

Power factor

50%	75%	100%
0.75	0.84	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
