/Products/Electric Motors/3 Phase/WEG/Fire Pump/JM Close-Coupled Pump/02036OP3EFP254JMV-S WEG 20HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM

Product ID: 02036OP3EFP254JMV-S

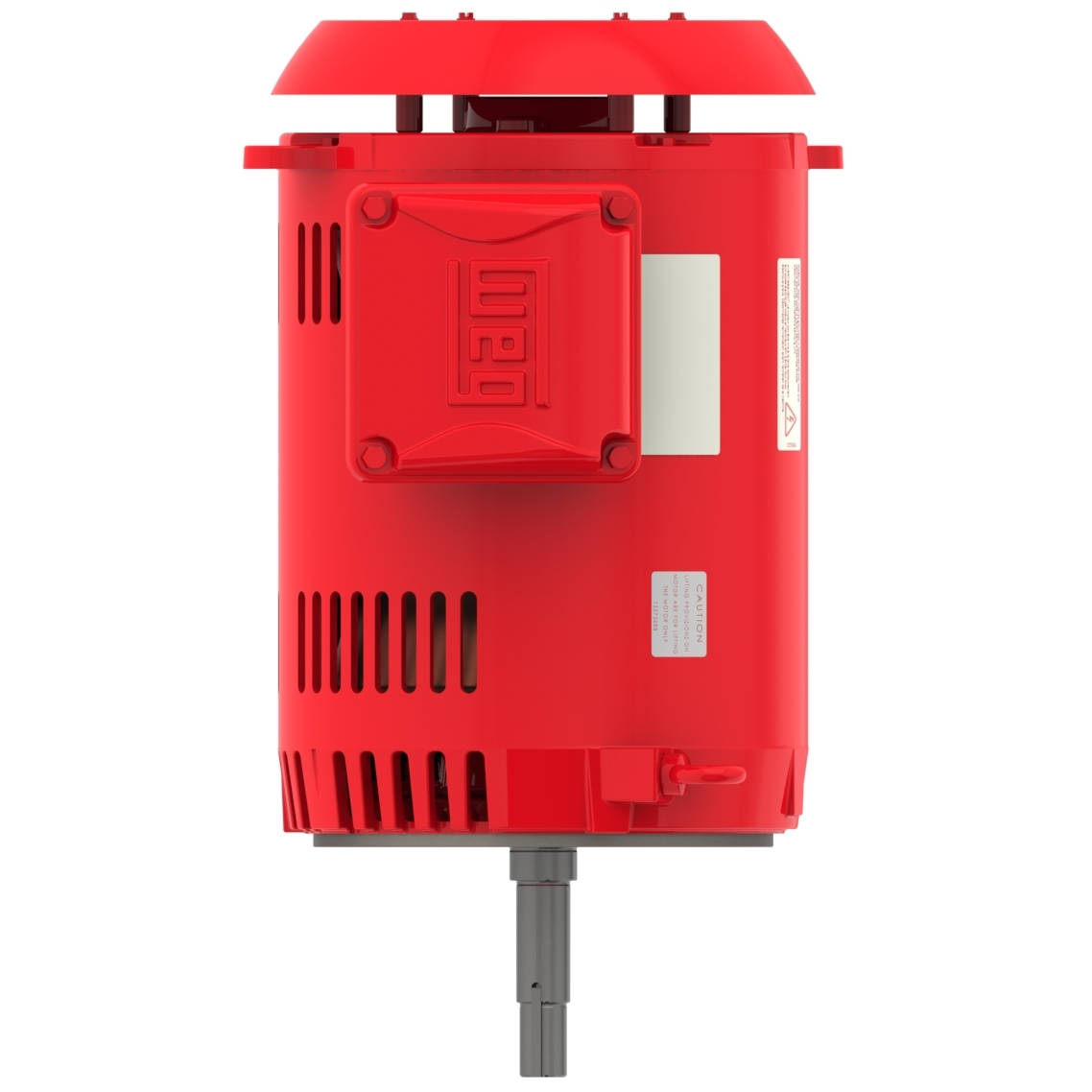

02036OP3EFP254JMV-S WEG 20HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036OP3EFP254JMV-S

Selected accessories will also be added to cart

$1,569.00 / Each

Quantity:

IC01 - ODP, 254JM/256JM Frame, 230/460/190-220/380-415VAC 60Hz 3 Phase, 13550950, Rolled Steel, High Efficiency, Footless, Vertical Mount

Details
Purchase Components

Electric Motors

Frame	254/6JM
Output	20 HP (15 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	47.4/23.7 A
L. R. Amperes	284/142 A
LRC	6.0x(Code G)
No load current	18.2/9.12 A
Rated torque	29.8 ft.lb
Locked rotor torque	180 %
Breakdown torque	240 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	0.6974 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	70.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	90.2

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	254/6JM
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	190/380 V
Rated current	59.0/29.5 A
L. R. Amperes	260/130 A
LRC	4.4x(Code D)
No load current	17.7/8.86 A
Rated torque	36.4 ft.lb
Locked rotor torque	110 %
Breakdown torque	180 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.6974 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.3	88.2	85.8

Power factor

50%	75%	100%
0.81	0.88	0.90

Frame	254/6JM
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	220/415 V
Rated current	52.8/28.0 A
L. R. Amperes	259/137 A
LRC	4.9x(Code E)
No load current	19.6/10.4 A
Rated torque	36.2 ft.lb
Locked rotor torque	120 %
Breakdown torque	200 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.6974 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.1	88.6	86.8

Power factor

50%	75%	100%
0.76	0.85	0.89

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
Overload protector (phenolic)	Without overload protector

Bearing details

	Drive End	Non Drive End
Bearing type	6309 Z C3	6208 Z C3
Sealing	Without Bearing Seal	Without Bearing Seal
Lubrication interval	15797 h	20000 h
Lubricant amount	13 g	8 g
Grease Type	Mobil Polyrex EM
