/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JM, TEFC/02018ET3V256JM-S WEG 20HP JM Close Coupled Pump Electric Motor,1800RPM

Product ID: 02018ET3V256JM-S

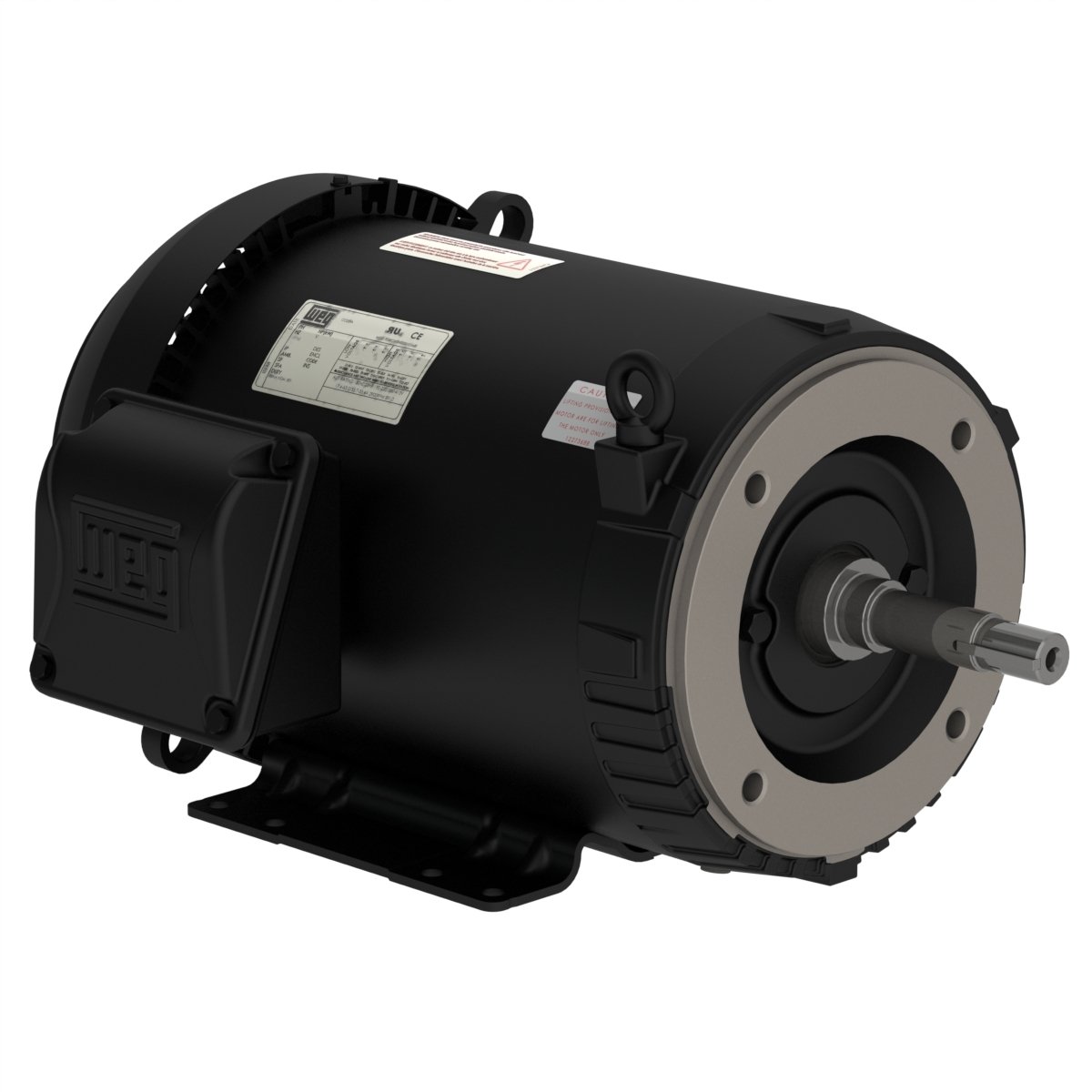

02018ET3V256JM-S WEG 20HP JM Close Coupled Pump Electric Motor,1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02018ET3V256JM-S

Selected accessories will also be added to cart

$2,142.75 / Each

Quantity:

IC411 - TEFC, IP55, 254JM/256JM Frame, 200/400VAC 3-Phase 60Hz, 13413896, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	254/6JM
Output	20 HP (15 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	200/400 V
Rated current	56.8/28.4 A
L. R. Amperes	381/190 A
LRC	6.7x(Code H)
No load current	25.6/12.8 A
Rated torque	58.7 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	2.64 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	258 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	93.0

Power factor

50%	75%	100%
0.66	0.77	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
