/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount, C-Face/02012ST3QIE286TC-W22 WEG 20HP Severe Duty Electric Motor, 1200RPM

Product ID: 02012ST3QIE286TC-W22

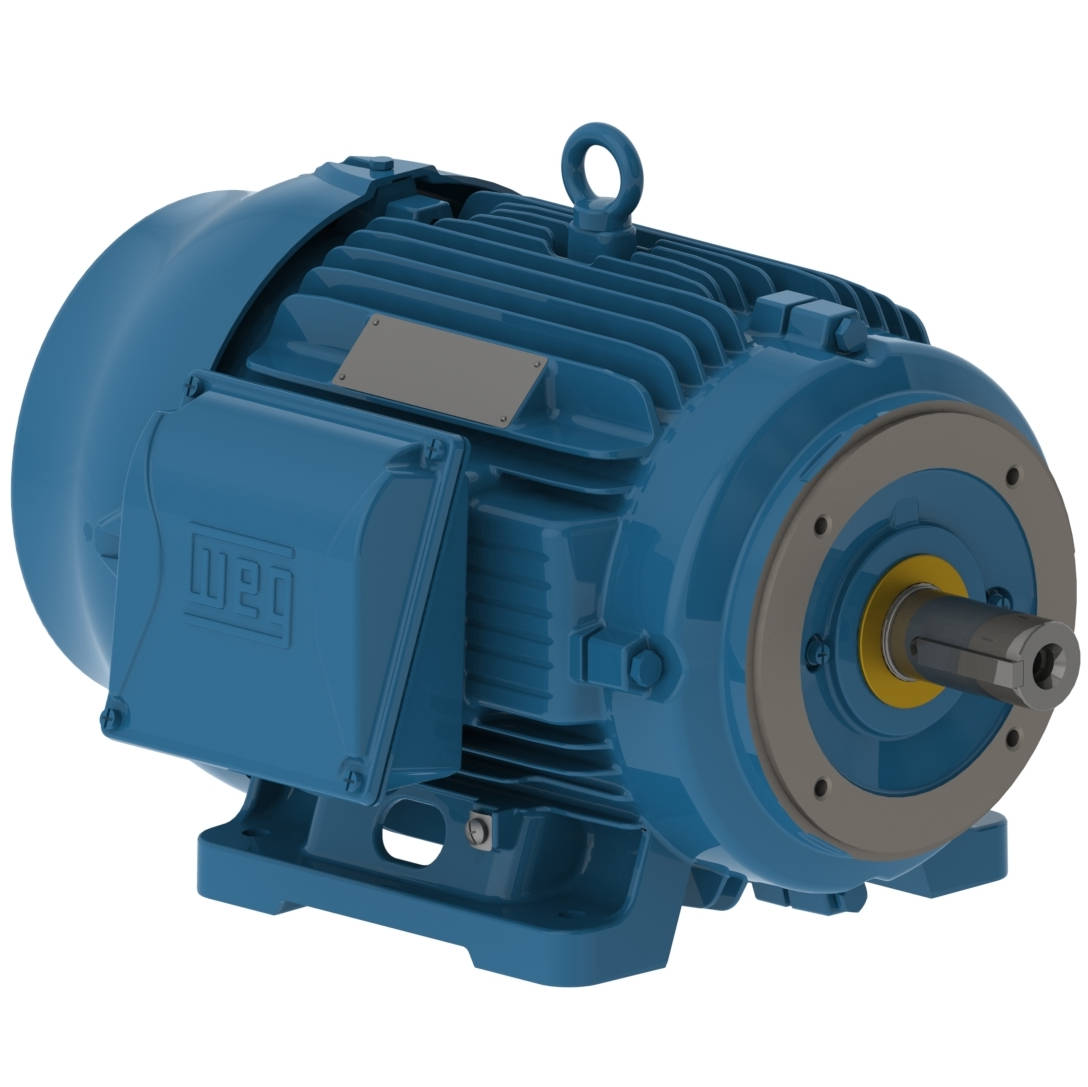

02012ST3QIE286TC-W22 WEG 20HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 02012ST3QIE286TC-W22

Selected accessories will also be added to cart

$3,729.75 / Each

Quantity:

IC411 - TEFC, IP55, 284TC/286TC Frame, 460VAC 60Hz 3 Phase, 11433397, NEMA Premium Efficiency, IEEE 841, Foot Mounted, C-Face, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6TC
Output	20 HP (15 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	460 V
Rated current	24.2 A
L. R. Amperes	143 A
LRC	5.9x(Code G)
No load current	8.30 A
Rated torque	89.4 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.70	0.80	0.85

Frame	284/6TC
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	380 V
Rated current	21.8 A
L. R. Amperes	129 A
LRC	5.9x(Code G)
No load current	8.20 A
Rated torque	80.8 ft.lb
Locked rotor torque	220 %
Breakdown torque	260 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	90.3	90.3

Power factor

50%	75%	100%
0.66	0.79	0.85

Frame	284/6TC
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	400 V
Rated current	21.2 A
L. R. Amperes	140 A
LRC	6.6x(Code H)
No load current	8.80 A
Rated torque	80.8 ft.lb
Locked rotor torque	260 %
Breakdown torque	280 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.3	90.3	90.3

Power factor

50%	75%	100%
0.63	0.76	0.83

Frame	284/6TC
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	21.3 A
L. R. Amperes	149 A
LRC	7.0x(Code J)
No load current	9.40 A
Rated torque	80.4 ft.lb
Locked rotor torque	270 %
Breakdown torque	310 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.3	90.6	90.8

Power factor

50%	75%	100%
0.60	0.73	0.81

Frame	284/6TC
Output	20 HP (15 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	380 V
Rated current	29.6 A
L. R. Amperes	130 A
LRC	4.4x(Code D)
No load current	8.20 A
Rated torque	109 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.2	88.5

Power factor

50%	75%	100%
0.76	0.84	0.87

Frame	284/6TC
Output	20 HP (15 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	28.1 A
L. R. Amperes	141 A
LRC	5.0x(Code E)
No load current	8.80 A
Rated torque	108 ft.lb
Locked rotor torque	190 %
Breakdown torque	210 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.2	89.5

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	284/6TC
Output	20 HP (15 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	27.2 A
L. R. Amperes	147 A
LRC	5.4x(Code F)
No load current	9.40 A
Rated torque	108 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	433 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	90.2

Power factor

50%	75%	100%
0.70	0.80	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
