/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount, AEGIS SGR/02012OT3E286T-W40G WEG 20HP, General Purpose Electric Motor, 1200RPM

Product ID: 02012OT3E286T-W40G

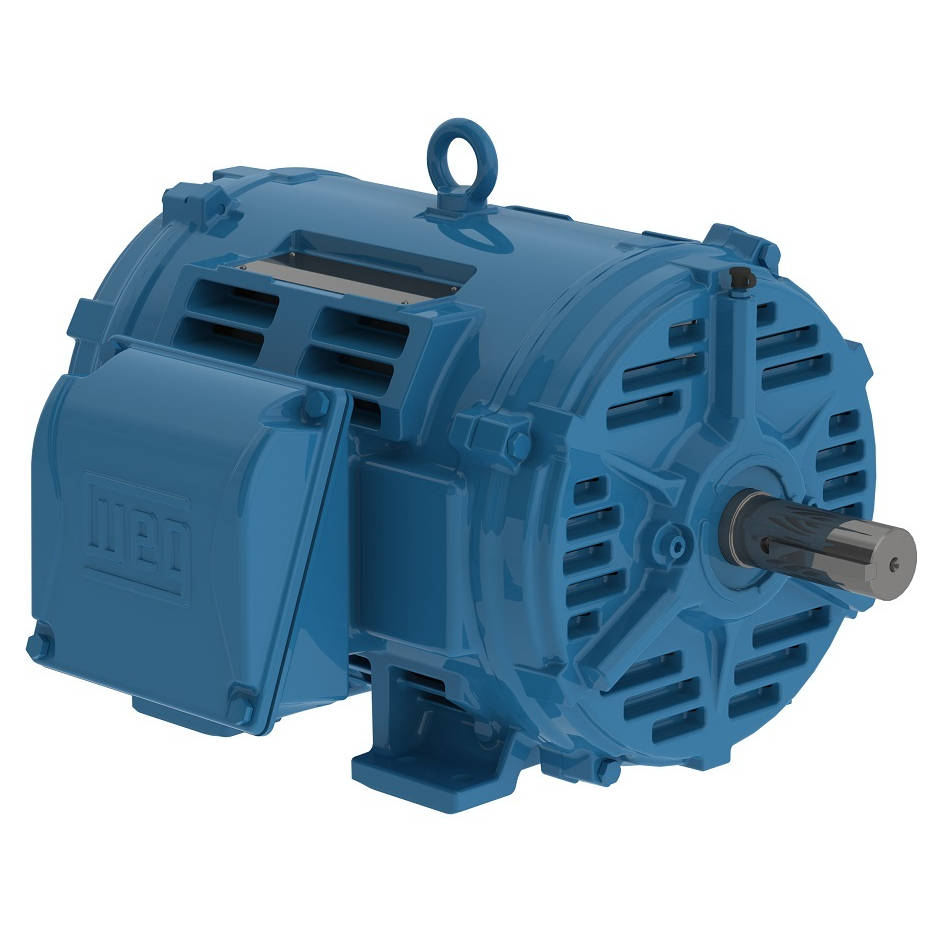

02012OT3E286T-W40G WEG 20HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 02012OT3E286T-W40G

Selected accessories will also be added to cart

$2,508.00 / Each

Quantity:

IC01 - ODP, IP23, 284T/286T Frame, 230/460/380VAC 60Hz 3 Phase, 14501324, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6T
Output	20 HP (15 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1177 rpm
Slip	1.92 %
Rated voltage	230/460 V
Rated current	48.6/24.3 A
L. R. Amperes	311/156 A
LRC	6.4x(Code G)
No load current	18.8/9.40 A
Rated torque	89.2 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	6.89 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	385 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	92.4

Power factor

50%	75%	100%
0.71	0.80	0.84

Frame	284/6T
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	22.0 A
L. R. Amperes	158 A
LRC	7.2x(Code H)
No load current	9.30 A
Rated torque	80.4 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	6.89 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	385 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	90.3	90.3

Power factor

50%	75%	100%
0.68	0.79	0.84

Frame	284/6T
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	21.4 A
L. R. Amperes	161 A
LRC	7.5x(Code J)
No load current	10.0 A
Rated torque	80.4 ft.lb
Locked rotor torque	310 %
Breakdown torque	320 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	6.89 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	385 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	90.3	90.3

Power factor

50%	75%	100%
0.64	0.76	0.82

Frame	284/6T
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	984 rpm
Slip	1.60 %
Rated voltage	415 V
Rated current	20.9 A
L. R. Amperes	157 A
LRC	7.5x(Code J)
No load current	10.5 A
Rated torque	80.0 ft.lb
Locked rotor torque	340 %
Breakdown torque	340 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	6.89 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	385 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	90.3	90.3

Power factor

50%	75%	100%
0.62	0.74	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
