/Products/Electric Motors/3 Phase/WEG/Air Handling/Pad Mount/02012ET3EPM284/6Y-W22 WEG 20HP Pad Mount Electric Motor, 1200RPM

Product ID: 02012ET3EPM284/6Y-W2

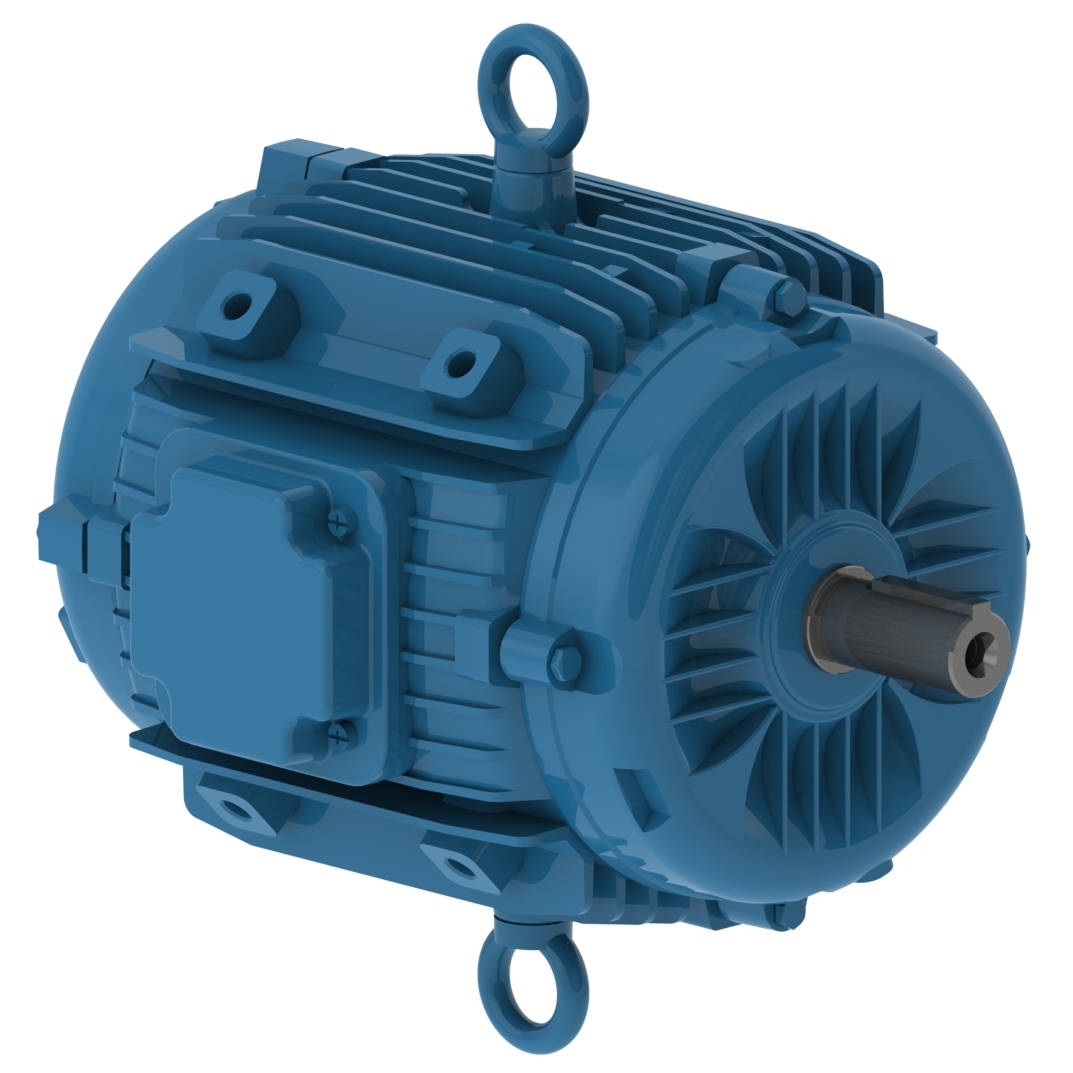

02012ET3EPM284/6Y-W22 WEG 20HP Pad Mount Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 02012ET3EPM284/6Y-W22

Selected accessories will also be added to cart

$3,327.75 / Each

Quantity:

IC410 - TEAO, IP55, 286Y Frame, 208-230/460VAC 60Hz 3 Phase, 13674351, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	286Y
Output	20 HP (15 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	53.4-48.3/24.2 A
L. R. Amperes	331-299/150 A
LRC	6.2x(Code G)
No load current	0.000-19.0/9.50 A
Rated torque	89.4 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %

Locked rotor time	28s (cold) 16s (hot)
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	426 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.70	0.80	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
