/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JM Close-Coupled Pump/Footless, Vertical/01536OT3H215JMV-S WEG 15HP JM Close-Coupled Pump Electric Motor, 3600RPM

Product ID: 01536OT3H215JMV-S

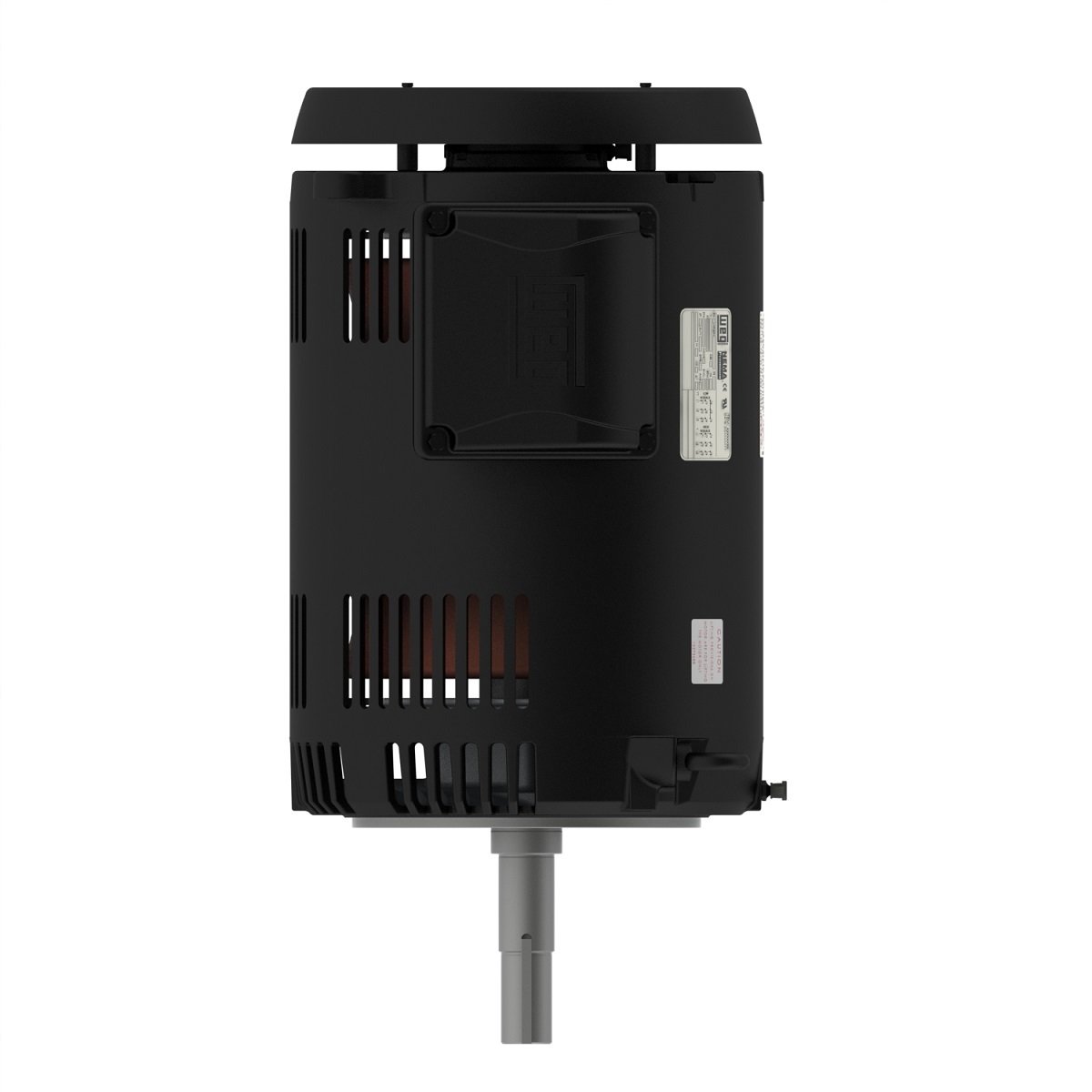

01536OT3H215JMV-S WEG 15HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536OT3H215JMV-S

Selected accessories will also be added to cart

$1,341.75 / Each

Quantity:

IC01 - ODP, 213JM/215JM Frame, 575VAC 3-Phase 60Hz, 13482982, Footless, Vertical Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	213/5JM
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	575 V
Rated current	13.8 A
L. R. Amperes	93.6 A
LRC	6.8x(Code G)
No load current	4.93 A
Rated torque	22.0 ft.lb
Locked rotor torque	210 %
Breakdown torque	280 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.5512 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	138 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.2	90.2

Power factor

50%	75%	100%
0.77	0.86	0.89

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
