/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JP Close-Coupled Pump/Footless, Vertical/01518OT3V254JPV-S WEG 15HP JP Close Coupled Pump Electric Motor, 1800RPM

Product ID: 01518OT3V254JPV-S

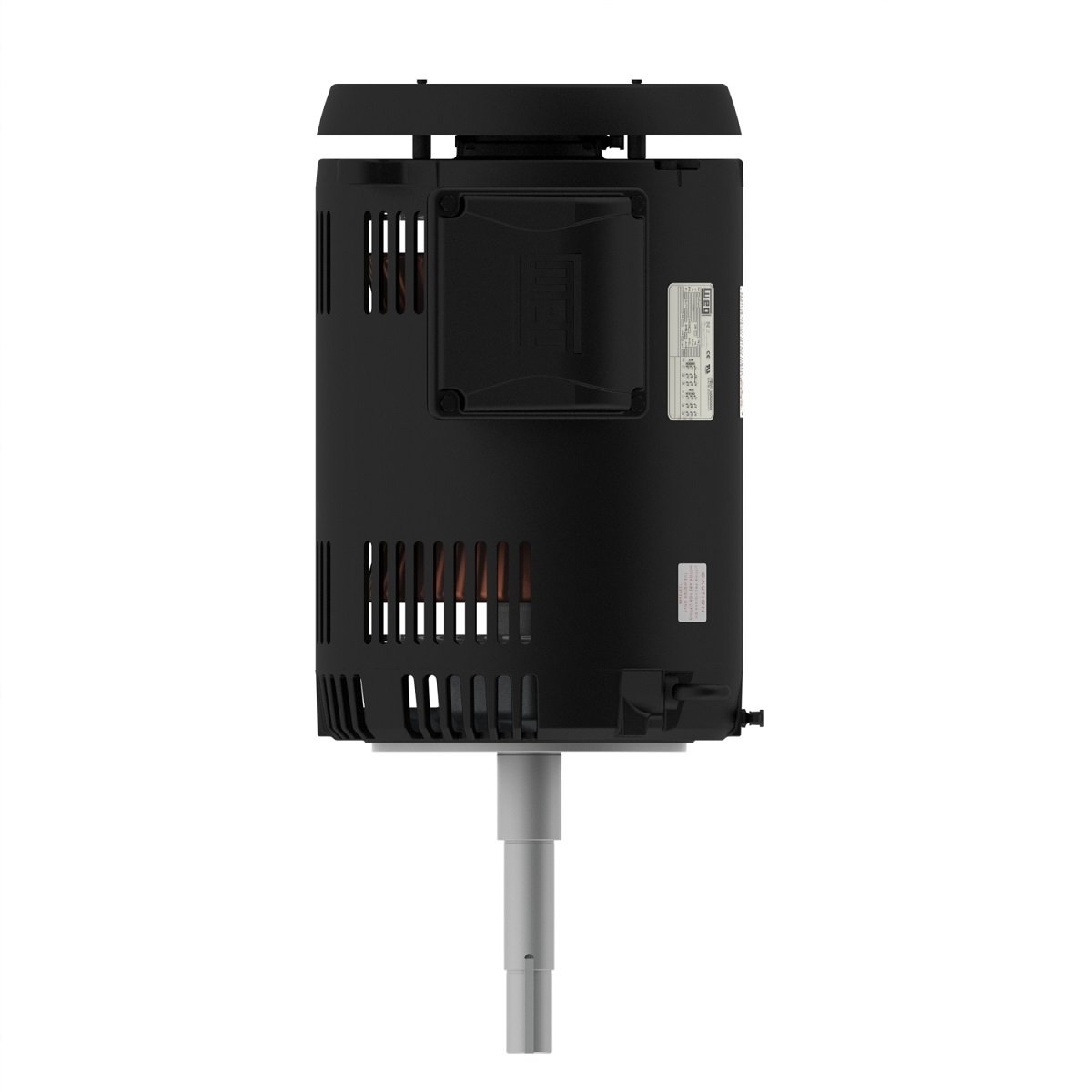

01518OT3V254JPV-S WEG 15HP JP Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518OT3V254JPV-S

Selected accessories will also be added to cart

$1,569.75 / Each

Quantity:

IC01 - ODP, 254JP/256JP Frame, 200/400VAC 3-Phase 60Hz, 14332473, Footless, Vertical Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	254/6JP
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	200/400 V
Rated current	42.8/21.4 A
L. R. Amperes	287/143 A
LRC	6.7x(Code H)
No load current	21.9/10.9 A
Rated torque	43.8 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	1.82 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	175 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	93.0

Power factor

50%	75%	100%
0.62	0.73	0.80

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
