/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Vector Duty/01518NT3FVD254TC-W22 WEG 15HP Vector Duty Electric Motor, 1800RPM

Product ID: 01518NT3FVD254TC-W22

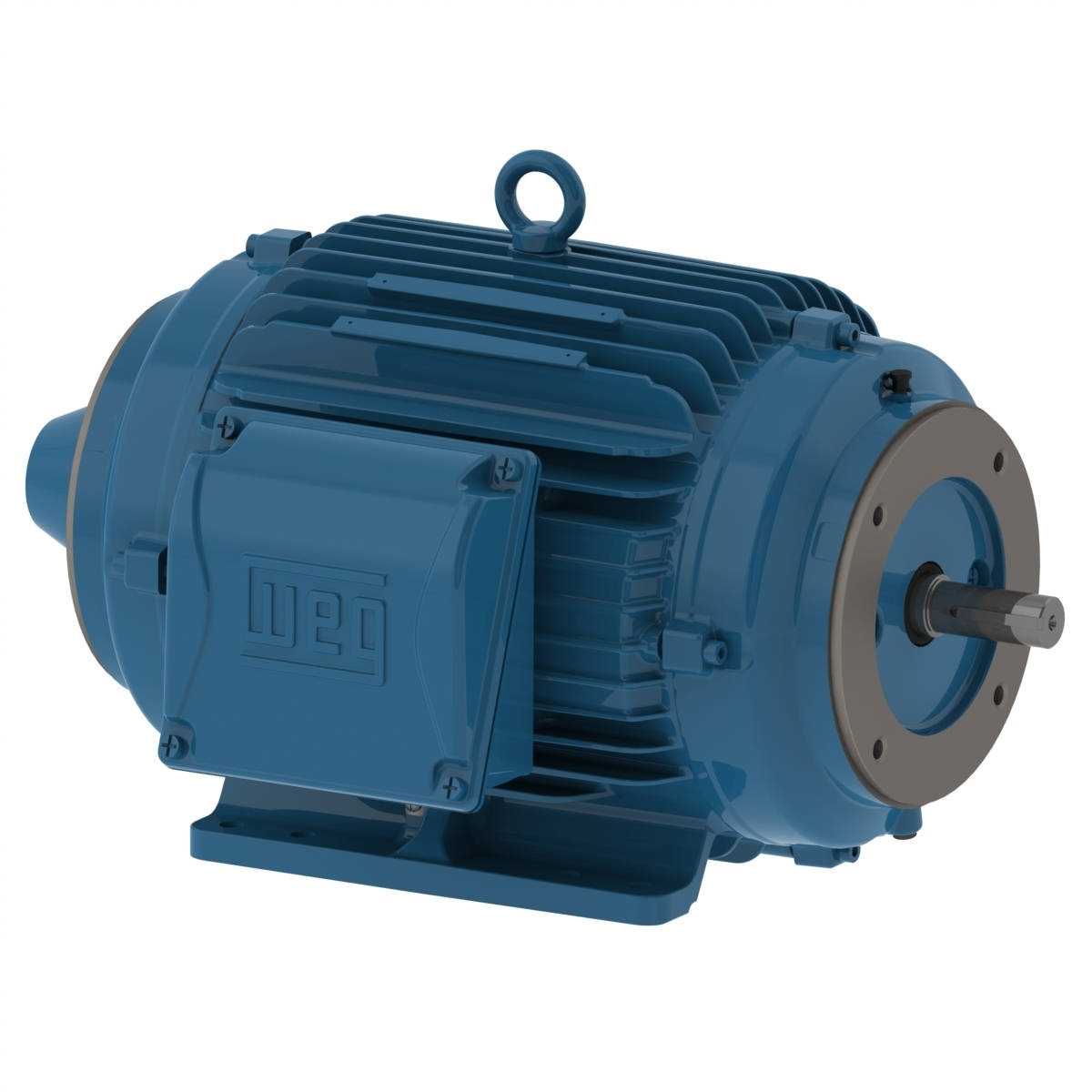

01518NT3FVD254TC-W22 WEG 15HP Vector Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518NT3FVD254TC-W22

Selected accessories will also be added to cart

$1,925.25 / Each

Quantity:

IC410 - TENV, IP55, 254TCZ/256TCZ Frame, 230/460VAC 60Hz 3 Phase, 12212457, NEMA Premium Efficiency, Foot Mounted, Double C-Face, Cast Iron Frame, 1-5/8" & 5/8" Keyed Shafts

Details
Purchase Components

Electric Motors

Frame	254/6TCZ
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	230/460 V
Rated current	36.0/18.0 A
L. R. Amperes	310/155 A
LRC	8.6x(Code K)
No load current	15.0/7.50 A
Rated torque	44.5 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %

Locked rotor time	36s (cold) 20s (hot)
Design	B
Insulation Class	H
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TENV
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	340 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	92.4	92.4

Power factor

50%	75%	100%
0.67	0.78	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
