/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount, AEGIS Ring/01518ET3H254T-SG WEG 15HP General Purpose Electric Motor,1800RPM

Product ID: 01518ET3H254T-SG

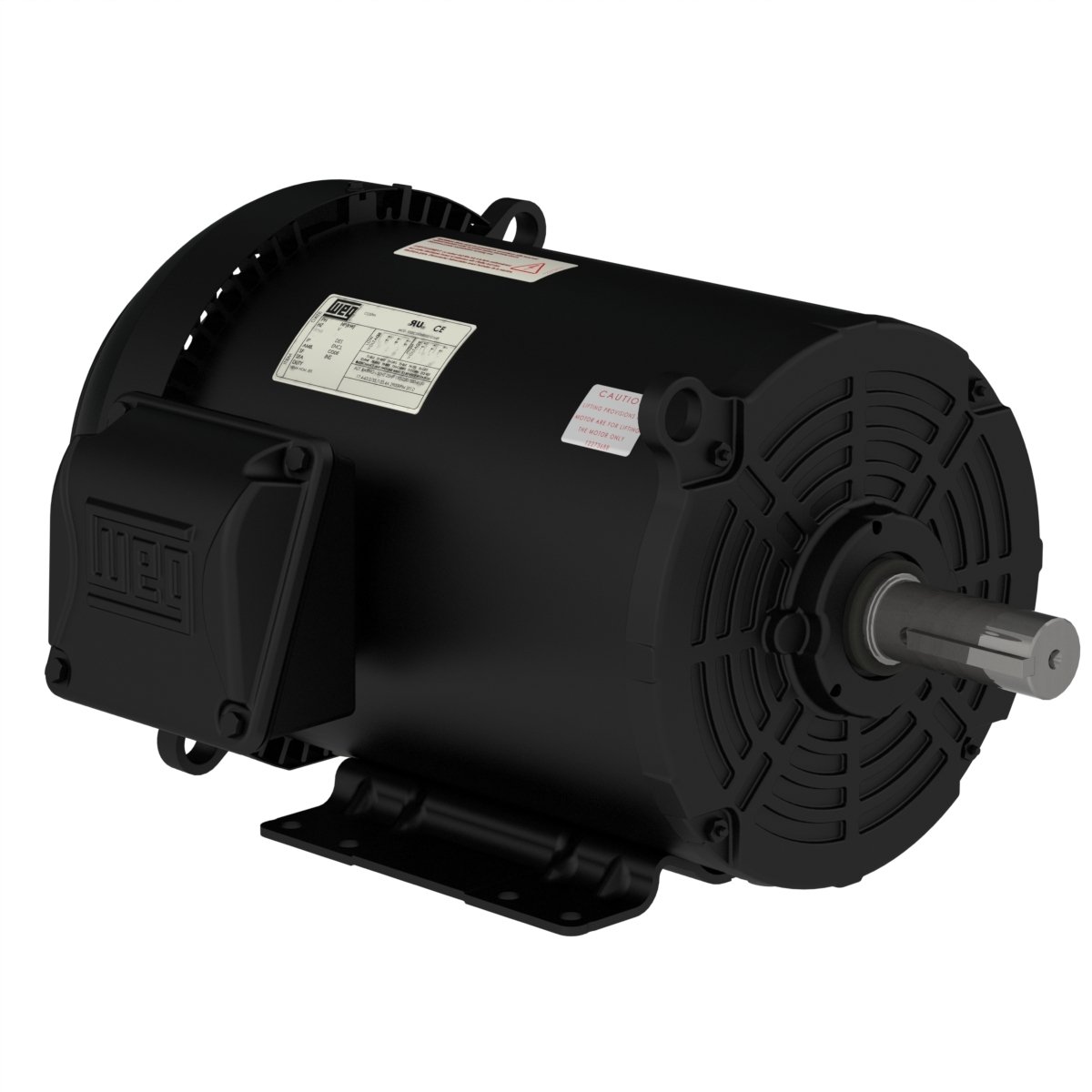

01518ET3H254T-SG WEG 15HP General Purpose Electric Motor,1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518ET3H254T-SG

Selected accessories will also be added to cart

$1,417.50 / Each

Quantity:

IC411 - TEFC 254T/256T Frame, 575VAC 3 Phase 60Hz, 12793362, Rolled Steel NEMA Premium Efficiency, Foot Mount, AEGIS Shaft Grounding Ring, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	575 V
Rated current	14.6 A
L. R. Amperes	94.6 A
LRC	6.5x(Code G)
No load current	6.92 A
Rated torque	43.9 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	2.15 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	211 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	92.4	92.4

Power factor

50%	75%	100%
0.64	0.76	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
