/Products/Electric Motors/3 Phase/WEG/Air Handling/Cooling Tower/TEFC, F-1 Mounting/01518ET3ECT254TF1-W22 WEG 15HP Cooling Tower Electric Motor, 1800RPM

Product ID: 01518ET3ECT254TF1-W2

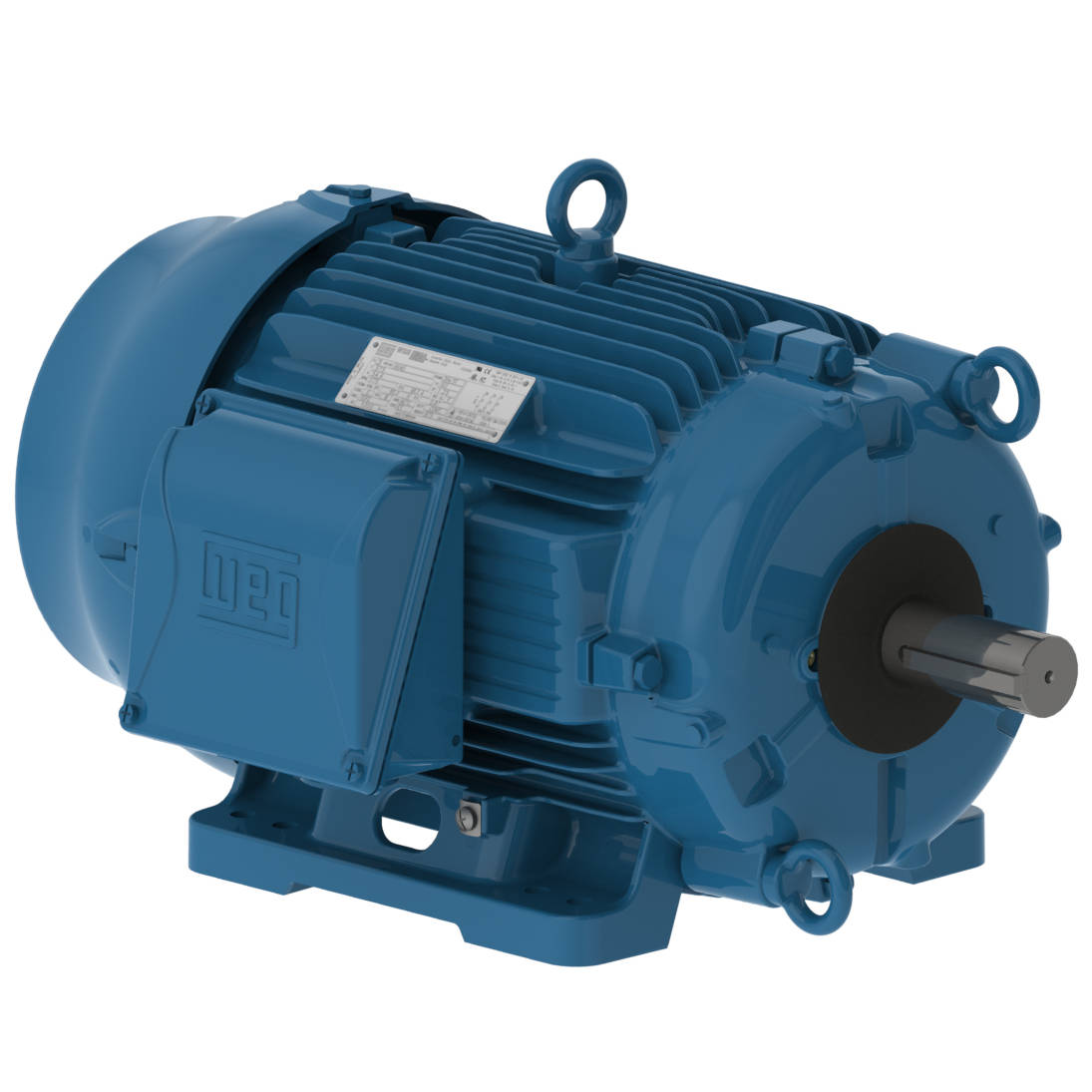

01518ET3ECT254TF1-W22 WEG 15HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518ET3ECT254TF1-W22

Selected accessories will also be added to cart

$1,591.50 / Each

Quantity:

IC411- TEFC, IP55, 254T Frame, 230/460/380VAC 60Hz 3 Phase, 11972704, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, F1 Box Mounting, 1-5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	254T
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	36.0/18.0 A
L. R. Amperes	230/115 A
LRC	6.4x(Code G)
No load current	13.6/6.80 A
Rated torque	44.6 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	305 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	92.4

Power factor

50%	75%	100%
0.68	0.78	0.83

Frame	254T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	15.2 A
L. R. Amperes	109 A
LRC	7.2x(Code J)
No load current	6.70 A
Rated torque	35.6 ft.lb
Locked rotor torque	250 %
Breakdown torque	310 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	305 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.8	90.3	90.4

Power factor

50%	75%	100%
0.65	0.77	0.83

Frame	254T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	14.8 A
L. R. Amperes	115 A
LRC	7.8x(Code J)
No load current	7.10 A
Rated torque	35.6 ft.lb
Locked rotor torque	280 %
Breakdown torque	350 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	305 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	90.3	90.6

Power factor

50%	75%	100%
0.62	0.74	0.81

Frame	254T
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	14.5 A
L. R. Amperes	120 A
LRC	8.3x(Code K)
No load current	7.40 A
Rated torque	35.5 ft.lb
Locked rotor torque	310 %
Breakdown torque	370 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	305 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.3	90.3	90.8

Power factor

50%	75%	100%
0.59	0.72	0.79

Frame	254T
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	21.5 A
L. R. Amperes	105 A
LRC	4.9x(Code E)
No load current	6.70 A
Rated torque	54.1 ft.lb
Locked rotor torque	170 %
Breakdown torque	210 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	305 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	90.2	90.2

Power factor

50%	75%	100%
0.74	0.82	0.86

Frame	254T
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	20.5 A
L. R. Amperes	111 A
LRC	5.4x(Code F)
No load current	7.10 A
Rated torque	54.0 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	305 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.71	0.80	0.85

Frame	254T
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	20.0 A
L. R. Amperes	118 A
LRC	5.9x(Code G)
No load current	7.40 A
Rated torque	54.0 ft.lb
Locked rotor torque	210 %
Breakdown torque	250 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	2.62 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	305 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.69	0.79	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
