/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/01512OT3E284T-W40 WEG 15HP, General Purpose Electric Motor, 1200RPM

Product ID: 01512OT3E284T-W40

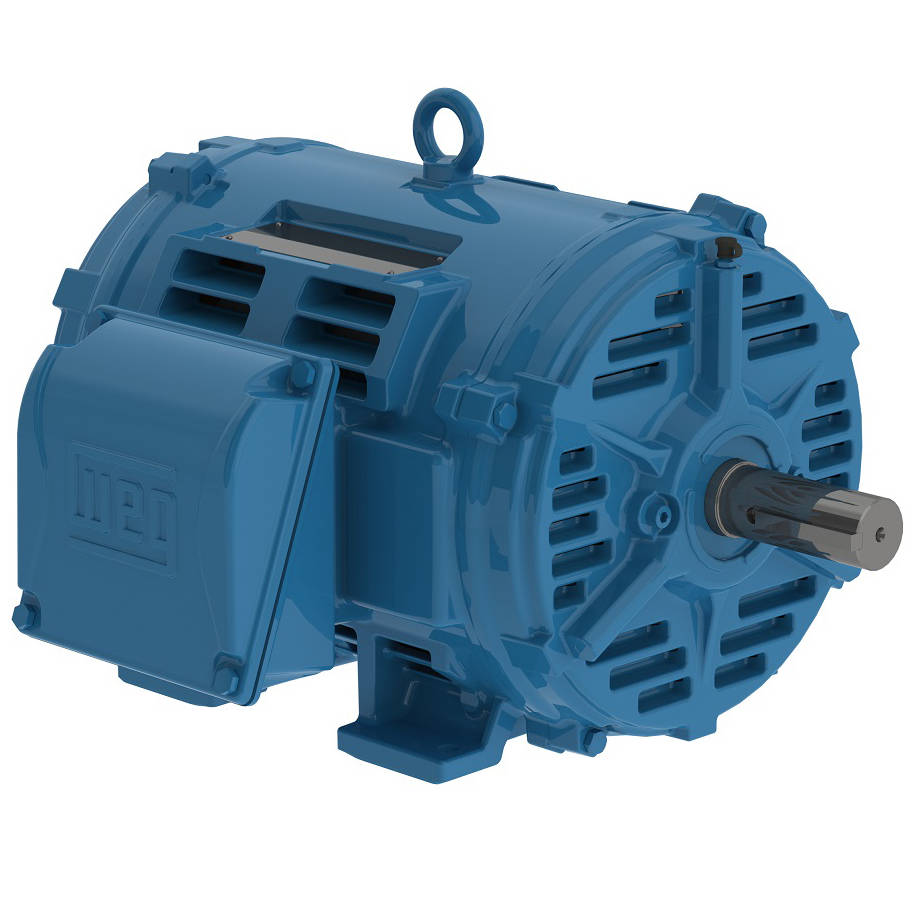

01512OT3E284T-W40 WEG 15HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01512OT3E284T-W40

Selected accessories will also be added to cart

$1,809.00 / Each

Quantity:

IC01 - ODP, IP23, 284T Frame, 230/460VAC 60Hz 3 Phase, 14494126, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284T
Output	15 HP (11 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1180 rpm
Slip	1.67 %
Rated voltage	230/460 V
Rated current	36.8/18.4 A
L. R. Amperes	232/116 A
LRC	6.3x(Code G)
No load current	15.6/7.80 A
Rated torque	66.8 ft.lb
Locked rotor torque	260 %
Breakdown torque	260 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	4.80 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.67	0.77	0.82

Frame	284T
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	15.8 A
L. R. Amperes	115 A
LRC	7.3x(Code J)
No load current	7.80 A
Rated torque	53.6 ft.lb
Locked rotor torque	290 %
Breakdown torque	320 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	4.80 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	89.0	89.1

Power factor

50%	75%	100%
0.62	0.75	0.81

Frame	284T
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	15.4 A
L. R. Amperes	116 A
LRC	7.5x(Code K)
No load current	8.40 A
Rated torque	53.3 ft.lb
Locked rotor torque	330 %
Breakdown torque	350 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	4.80 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	89.0	89.1

Power factor

50%	75%	100%
0.58	0.71	0.79

Frame	284T
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	15.4 A
L. R. Amperes	122 A
LRC	7.9x(Code K)
No load current	8.90 A
Rated torque	53.3 ft.lb
Locked rotor torque	360 %
Breakdown torque	380 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	4.80 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	315 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	89.0	89.1

Power factor

50%	75%	100%
0.55	0.68	0.76

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
