/Products/Electric Motors/3 Phase/WEG/Cast Iron, Severe Duty/Foot Mount/575VAC/01512ET3H284T-W22 WEG 15HP Severe Duty Electric Motor, 1200RPM

Product ID: 01512ET3H284T-W22

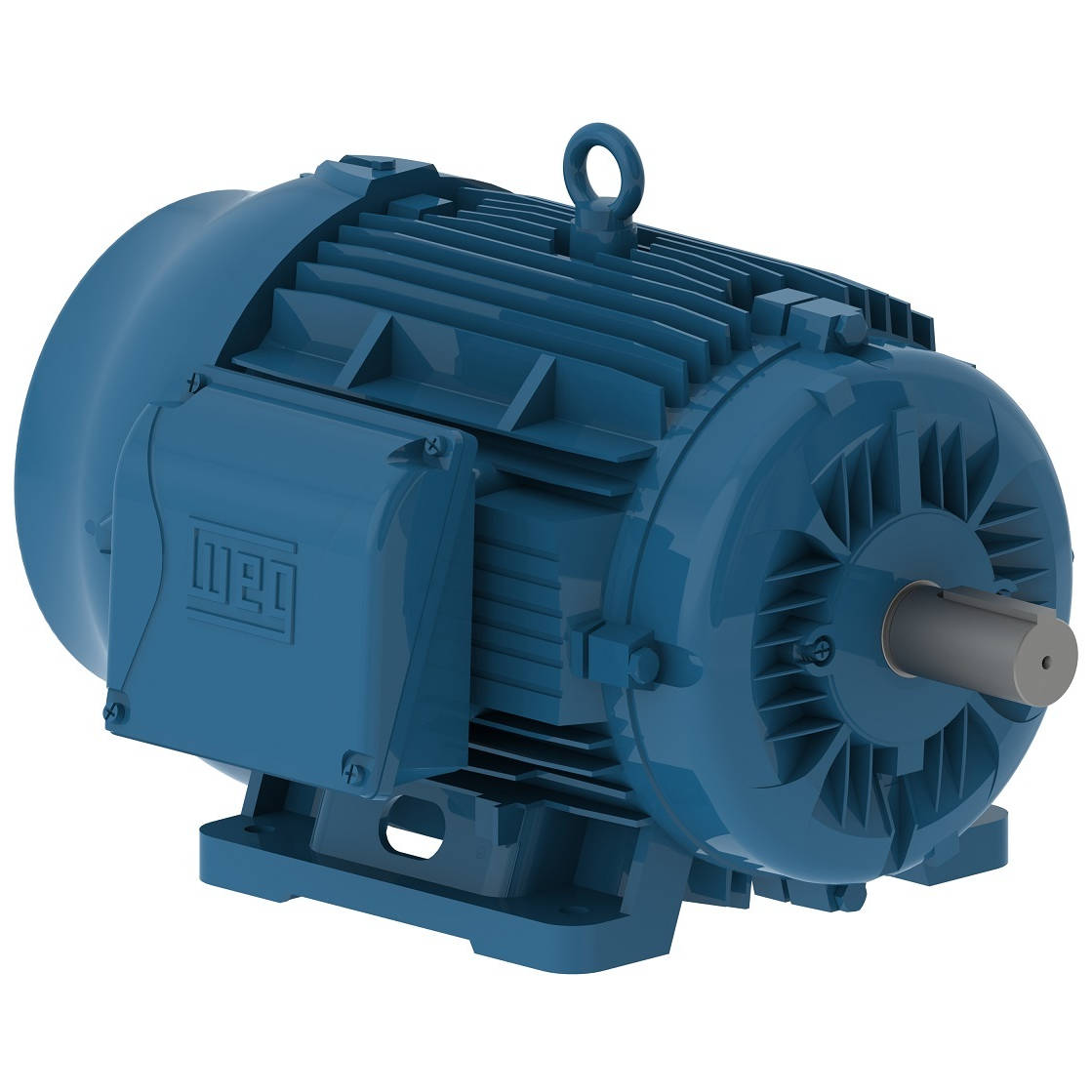

01512ET3H284T-W22 WEG 15HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01512ET3H284T-W22

Selected accessories will also be added to cart

$2,468.25 / Each

Quantity:

IC411 - TEFC, IP55, 284T/286T Frame, 575VAC 60Hz 3 Phase, 12446944, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6T
Output	15 HP (11 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	575 V
Rated current	14.3 A
L. R. Amperes	91.6 A
LRC	6.4x(Code G)
No load current	5.60 A
Rated torque	67.0 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	7.85 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	408 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.69	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
