/Products/Electric Motors/3 Phase/WEG/IEEE 841/Foot Mount, C-Face/01509ST3QIE286TC-W22 WEG 15HP Severe Duty Electric Motor, 900RPM

Product ID: 01509ST3QIE286TC-W22

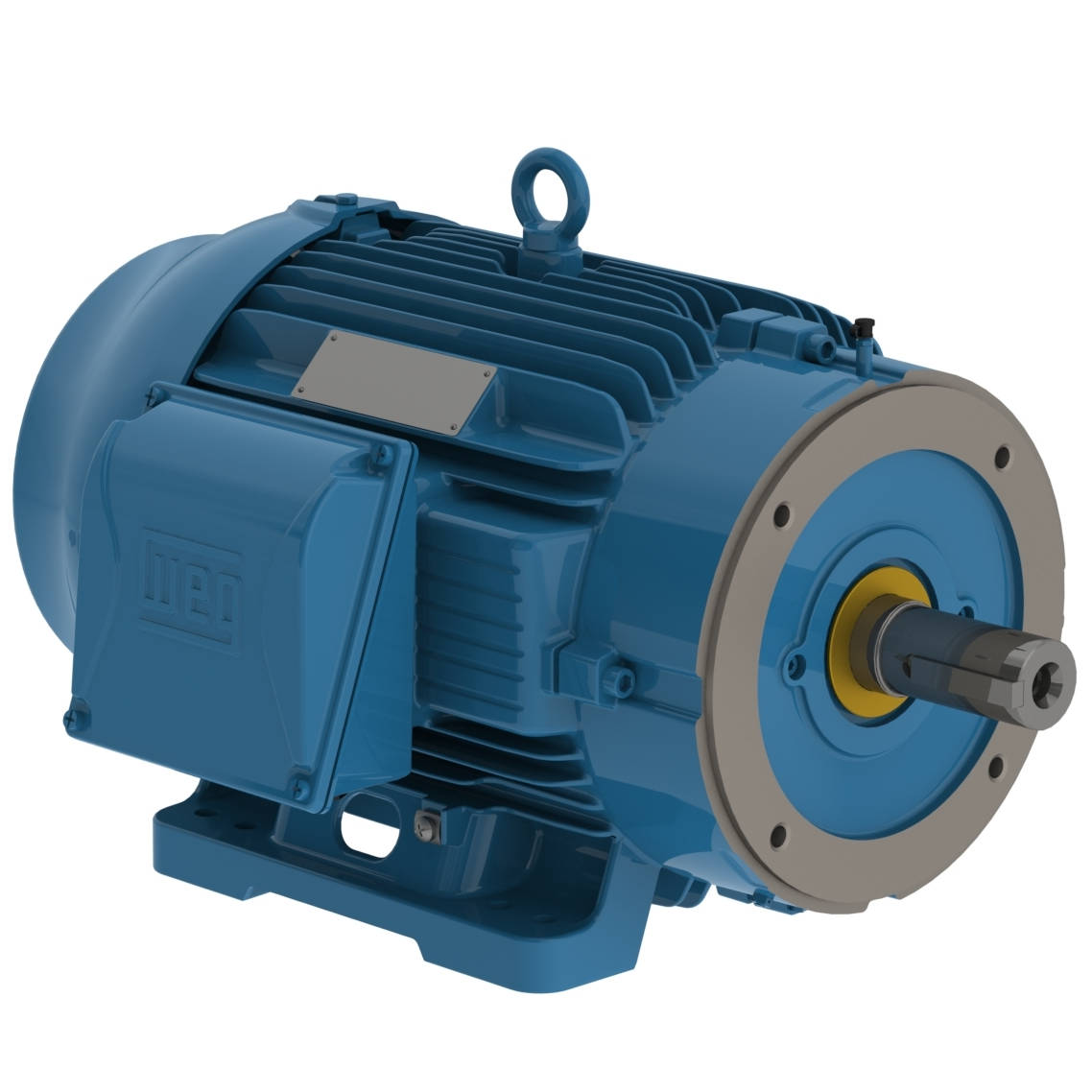

01509ST3QIE286TC-W22 WEG 15HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 01509ST3QIE286TC-W22

Selected accessories will also be added to cart

$5,206.50 / Each

Quantity:

IC411 - TEFC, IP55, 284TC/286TC Frame, 460VAC 60Hz 3 Phase, 14275908, NEMA Premium Efficiency, Foot Mounted, C-Face, IEEE 841, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6TC
Output	15 HP (11 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	460 V
Rated current	19.6 A
L. R. Amperes	108 A
LRC	5.5x(Code G)
No load current	9.80 A
Rated torque	89.5 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	8.18 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	430 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	90.0	90.2

Power factor

50%	75%	100%
0.62	0.72	0.78

Frame	284/6TC
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	23.6 A
L. R. Amperes	101 A
LRC	4.3x(Code D)
No load current	9.70 A
Rated torque	109 ft.lb
Locked rotor torque	150 %
Breakdown torque	180 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	8.18 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	430 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	88.5	88.6

Power factor

50%	75%	100%
0.68	0.76	0.80

Frame	284/6TC
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	22.7 A
L. R. Amperes	109 A
LRC	4.8x(Code F)
No load current	10.5 A
Rated torque	109 ft.lb
Locked rotor torque	170 %
Breakdown torque	200 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	8.18 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	430 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	88.5	88.6

Power factor

50%	75%	100%
0.64	0.74	0.79

Frame	284/6TC
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	22.1 A
L. R. Amperes	113 A
LRC	5.1x(Code F)
No load current	11.1 A
Rated torque	108 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	8.18 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	430 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.0	88.5	88.6

Power factor

50%	75%	100%
0.62	0.73	0.78

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
