/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/01109ET3Y180L-W22 WEG 15HP/11kW IEC TRU-Metric Electric Motor, 900RPM

Product ID: 01109ET3Y180L-W22

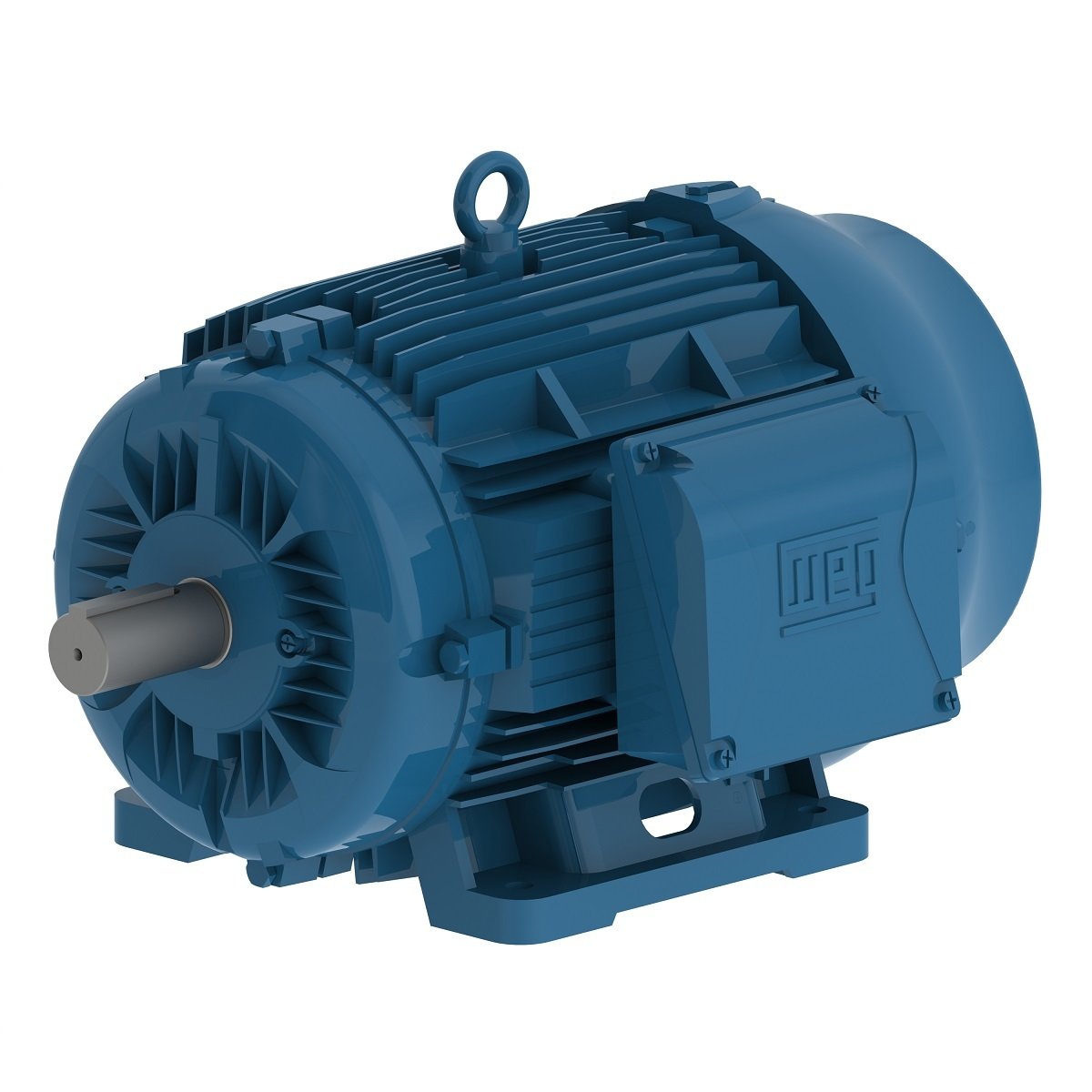

01109ET3Y180L-W22 WEG 15HP/11kW IEC TRU-Metric Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 01109ET3Y180L-W22

Selected accessories will also be added to cart

$3,023.25 / Each

Quantity:

IC411-TEFC, IP55, 180L Frame, 460/380-415VAC 3-Phase 50/60Hz, 13034279, Foot Mount, Cast Iron Frame, 48mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	180L
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	24.2 A
L. R. Amperes	157 A
LRC	6.5
No load current	10.1 A
Rated torque	108 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	6.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	393 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	90.0	89.8

Power factor

50%	75%	100%
0.59	0.71	0.77

Frame	180L
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	23.1 A
L. R. Amperes	150 A
LRC	6.5
No load current	11.0 A
Rated torque	107 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	6.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	393 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.0	90.3

Power factor

50%	75%	100%
0.55	0.68	0.76

Frame	180L
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	22.9 A
L. R. Amperes	149 A
LRC	6.5
No load current	11.8 A
Rated torque	107 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	6.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	393 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.0	89.9	90.5

Power factor

50%	75%	100%
0.52	0.65	0.74

Frame	180L
Output	15 HP (11 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	460 V
Rated current	19.5 A
L. R. Amperes	152 A
LRC	7.8
No load current	10.3 A
Rated torque	88.3 ft.lb
Locked rotor torque	260 %
Breakdown torque	340 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	6.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	393 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.59	0.71	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
