/Products/Electric Motors/3 Phase/WEG/Fire Pump/JP Close-Coupled Pump/01036OP3EFP213JPV-S WEG 10HP JP Close-Coupled Fire Pump Electric Motor, 3600RPM

Product ID: 01036OP3EFP213JPV-S

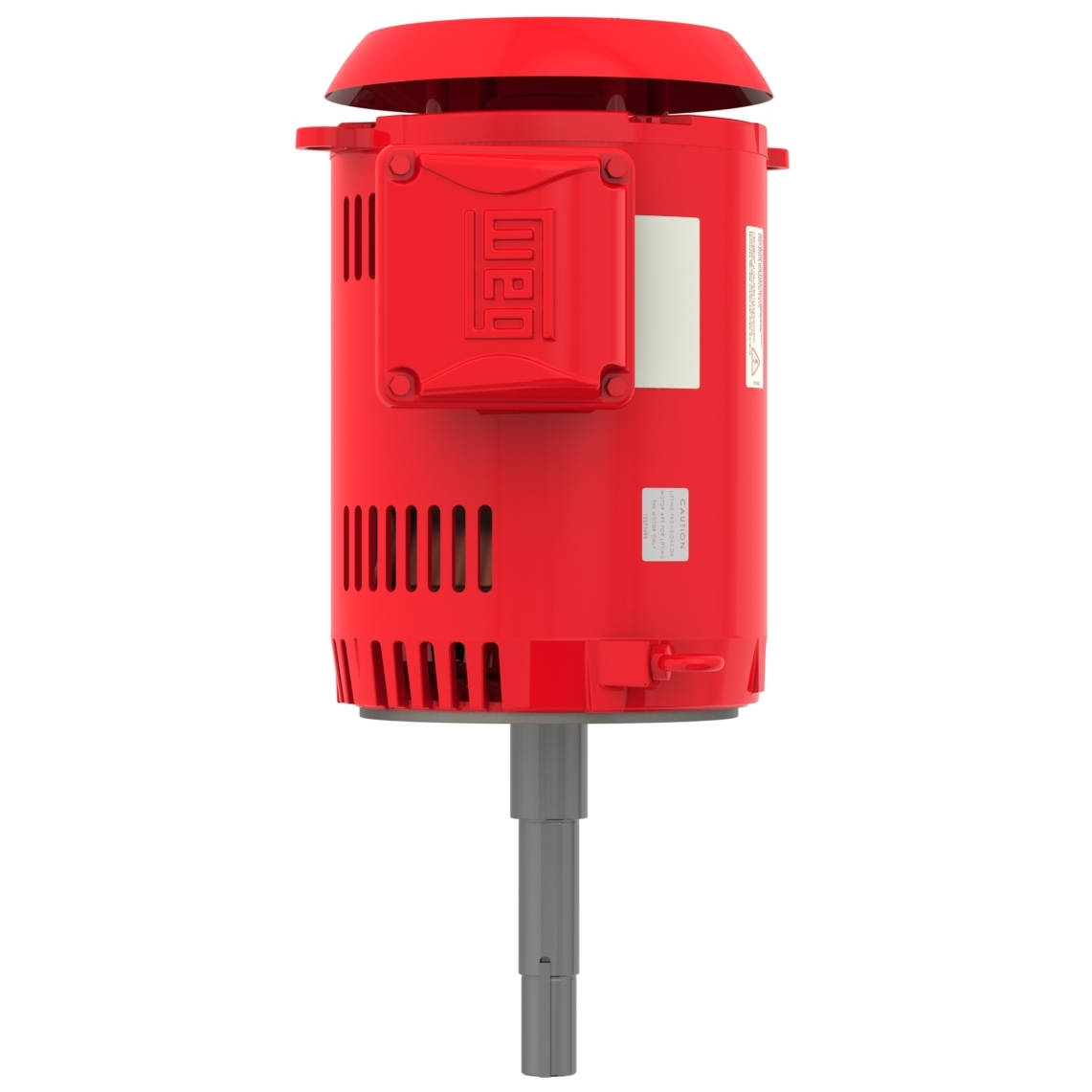

01036OP3EFP213JPV-S WEG 10HP JP Close-Coupled Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036OP3EFP213JPV-S

Selected accessories will also be added to cart
$954.75 / Each
Quantity:
IC01 - ODP, 213JP/215JP Frame, 230/460/190-220/380-415VAC 60Hz 3 Phase, 13550887, High Efficiency, Rolled Steel, Footless, Vertical Mount

Electric Motors

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 24.4/12.2 A
L. R. Amperes 156/78.1 A
LRC 6.4x(Code G)
No load current 10.3/5.13 A
Rated torque 14.9 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.3816 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 113 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  88.5

Power factor

50% 75% 100%
0.72  0.83  0.87
Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 190/380 V
Rated current 29.8/14.9 A
L. R. Amperes 143/71.5 A
LRC 4.8x(Code E)
No load current 10.0/5.01 A
Rated torque 18.1 ft.lb
Locked rotor torque 130 %
Breakdown torque 180 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.3816 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 113 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.8  86.6  83.8

Power factor

50% 75% 100%
0.79  0.88  0.91
Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 220/415 V
Rated current 27.0/14.3 A
L. R. Amperes 146/77.2 A
LRC 5.4x(Code F)
No load current 10.8/5.74 A
Rated torque 18.0 ft.lb
Locked rotor torque 140 %
Breakdown torque 210 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.3816 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 113 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.3  86.9  84.9

Power factor

50% 75% 100%
0.75  0.85  0.89

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6209 ZZ   6206 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval
Lubricant amount
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
157 lb  270 lb
