/Products/Electric Motors/3 Phase/WEG/Fire Pump/JM Close-Coupled Pump/01036OP3EFP213JMV-S WEG 10HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM

Product ID: 01036OP3EFP213JMV-S

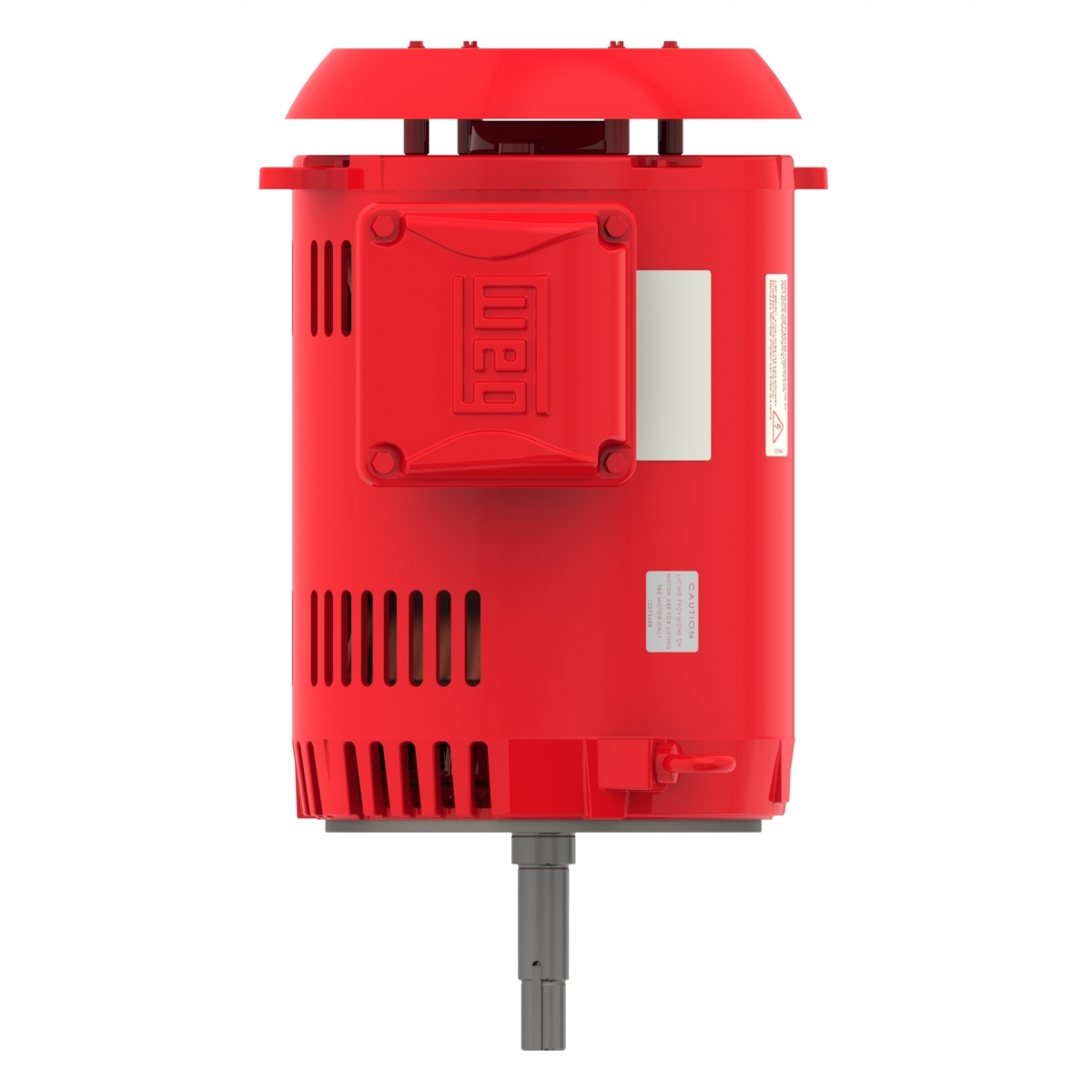

01036OP3EFP213JMV-S WEG 10HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036OP3EFP213JMV-S

Selected accessories will also be added to cart

$900.75 / Each

Quantity:

IC01 - ODP, 213JM/215JM Frame, 230/460VAC 60Hz 190-220/380-415VAC 50Hz 3 Phase, 13549538, High Efficiency, Footless, Vertical Mount, Rolled Steel Frame

Details
Purchase Components

Electric Motors

Frame	213/5JM
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	24.4/12.2 A
L. R. Amperes	156/78.1 A
LRC	6.4x(Code G)
No load current	10.3/5.13 A
Rated torque	14.9 ft.lb
Locked rotor torque	180 %
Breakdown torque	260 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.3816 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	103 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	88.5

Power factor

50%	75%	100%
0.72	0.83	0.87

Frame	213/5JM
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	190/380 V
Rated current	29.8/14.9 A
L. R. Amperes	143/71.5 A
LRC	4.8x(Code E)
No load current	10.0/5.01 A
Rated torque	18.1 ft.lb
Locked rotor torque	130 %
Breakdown torque	180 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.3816 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	103 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.8	86.6	83.8

Power factor

50%	75%	100%
0.79	0.88	0.91

Frame	213/5JM
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	27.0/14.3 A
L. R. Amperes	146/77.2 A
LRC	5.4x(Code F)
No load current	10.8/5.74 A
Rated torque	18.0 ft.lb
Locked rotor torque	140 %
Breakdown torque	210 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.3816 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	64.0 dB(A)
Approx. weight³	103 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.3	86.9	84.9

Power factor

50%	75%	100%
0.75	0.85	0.89

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
