/Products/Electric Motors/3 Phase/WEG/Farm Duty/Irrigation Duty/01018ET3EID215TC-W22 WEG 10HP Irrigation Duty Electric Motor, 1800RPM

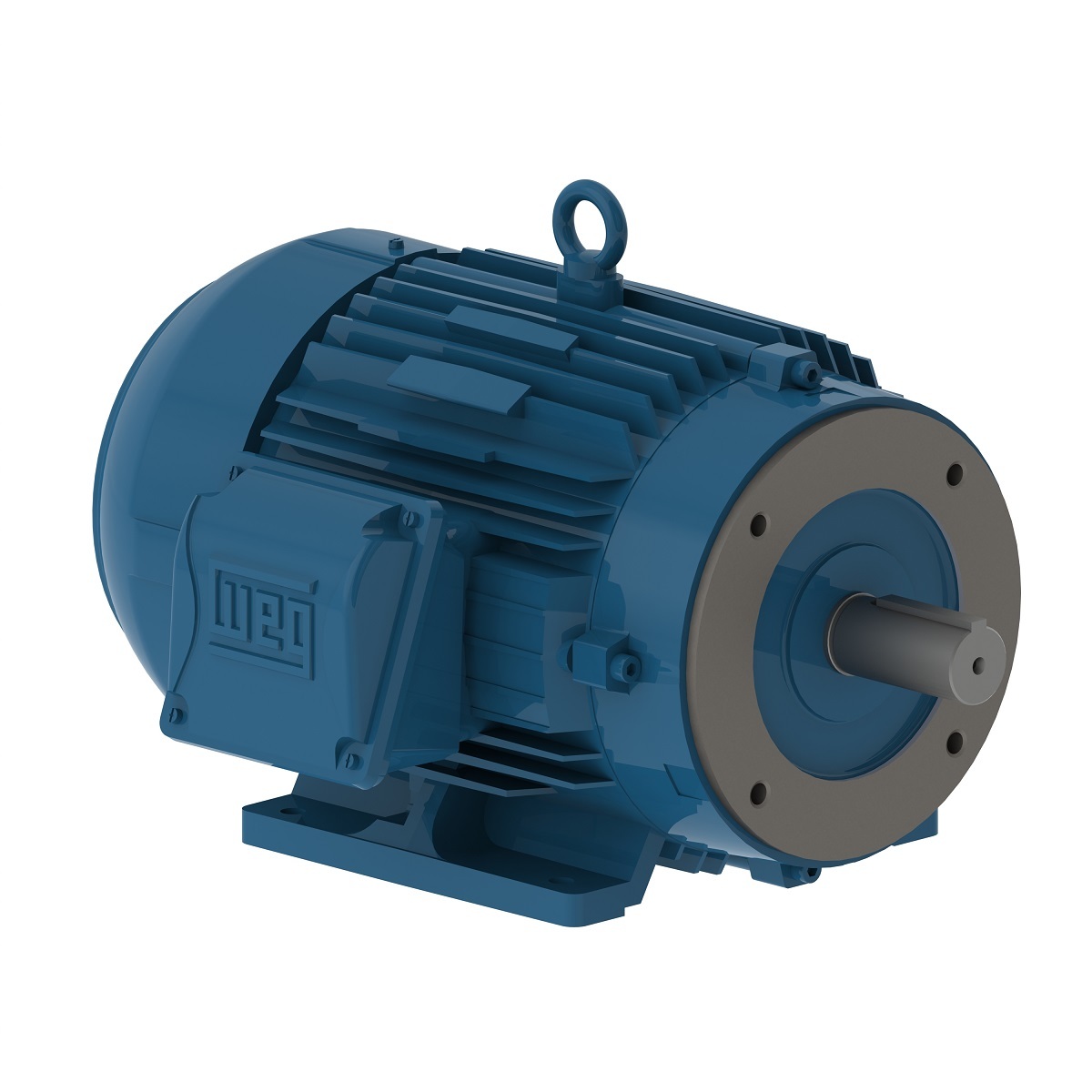

01018ET3EID215TC-W22 WEG 10HP Irrigation Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01018ET3EID215TC-W22

01018ET3EID215TC-W22 WEG 10HP Irrigation Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ET3EID215TC-W22

Selected accessories will also be added to cart
$1,039.50 / Each
Quantity:
IC411 - TEFC, 213TC/215TC Frame, 208-230/460VAC 60Hz, 380VAC 50Hz 3-Phase, C-Face, Foot Mount, Cast Iron Frame, 12809033, NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Electric Motors

Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 27.4-24.8/12.4 A
L. R. Amperes 176-159/79.4 A
LRC 6.4x(Code H)
No load current 9.74-11.3/5.65 A
Rated torque 29.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 295 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.7  91.7

Power factor

50% 75% 100%
0.66  0.77  0.83
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 11.2 A
L. R. Amperes 75.0 A
LRC 6.7x(Code H)
No load current 5.60 A
Rated torque 26.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  90.0  89.8

Power factor

50% 75% 100%
0.62  0.76  0.83
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 11.0 A
L. R. Amperes 78.1 A
LRC 7.1x(Code J)
No load current 6.00 A
Rated torque 26.4 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.2  89.9  90.1

Power factor

50% 75% 100%
0.58  0.73  0.80
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 10.9 A
L. R. Amperes 81.7 A
LRC 7.5x(Code J)
No load current 6.35 A
Rated torque 26.4 ft.lb
Locked rotor torque 260 %
Breakdown torque 360 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.7  89.8  90.3

Power factor

50% 75% 100%
0.55  0.70  0.78
Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 15.0 A
L. R. Amperes 76.5 A
LRC 5.1x(Code F)
No load current 5.60 A
Rated torque 35.7 ft.lb
Locked rotor torque 150 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.3  90.2  88.5

Power factor

50% 75% 100%
0.73  0.82  0.86
Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 14.2 A
L. R. Amperes 79.5 A
LRC 5.6x(Code F)
No load current 6.00 A
Rated torque 35.6 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.3  90.2  89.5

Power factor

50% 75% 100%
0.69  0.80  0.85
Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 13.8 A
L. R. Amperes 82.8 A
LRC 6.0x(Code G)
No load current 6.35 A
Rated torque 35.5 ft.lb
Locked rotor torque 190 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.3  90.2  90.2

Power factor

50% 75% 100%
0.66  0.78  0.84

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Cast Iron
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6308 ZZ   6207 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
457 lb  638 lb
