/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JM, TEFC/01012ET3E256JM-S WEG 10HP JM Close Coupled Pump Electric Motor, 1200RPM

Product ID: 01012ET3E256JM-S

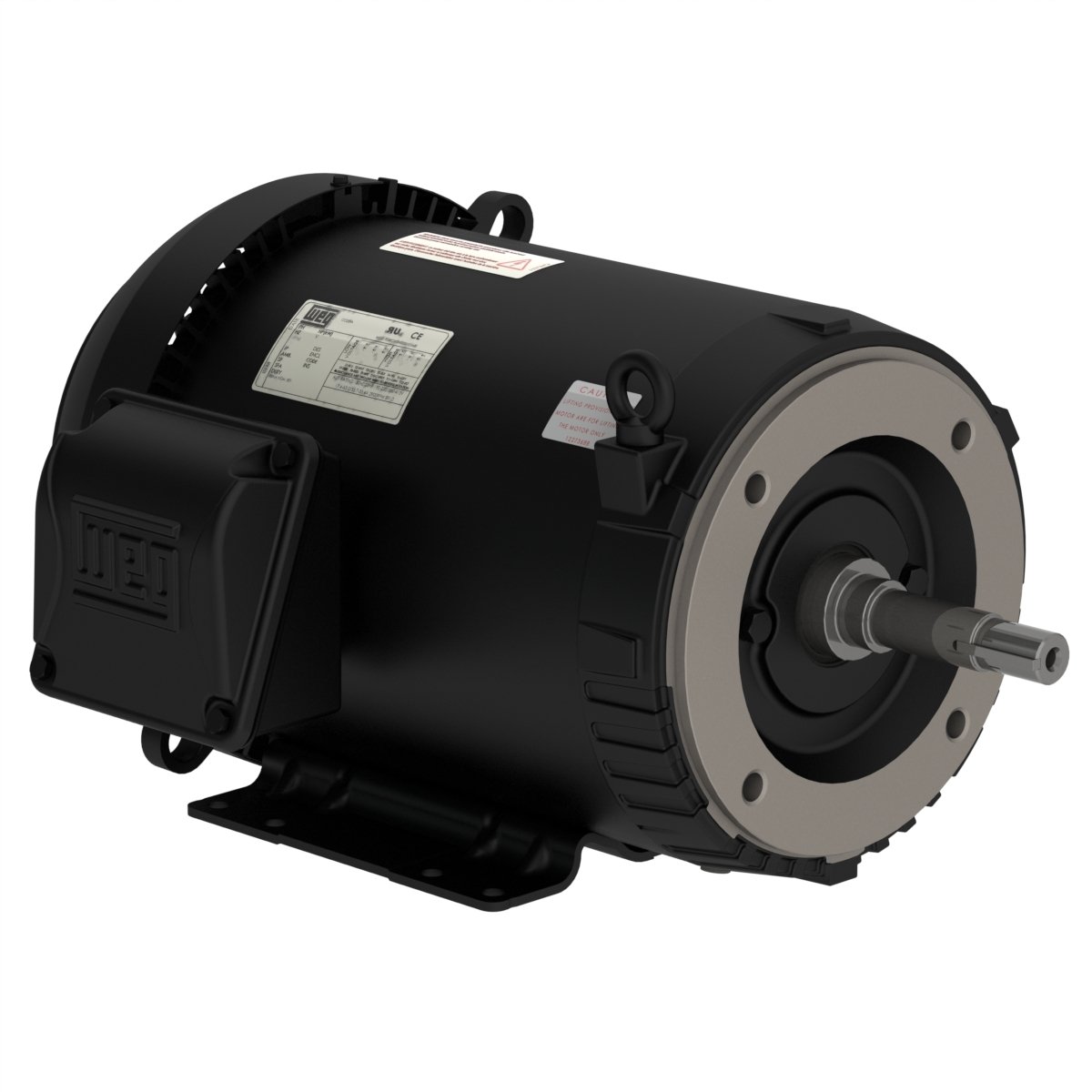

01012ET3E256JM-S WEG 10HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01012ET3E256JM-S

Selected accessories will also be added to cart

$2,234.25 / Each

Quantity:

IC411 - TEFC, IP55, 254JM/256JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13440286, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	254/6JM
Output	10 HP (7.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	30.5-27.6/13.8 A
L. R. Amperes	165-149/74.5 A
LRC	5.4x(Code G)
No load current	12.3-14.2/7.12 A
Rated torque	44.1 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	2.83 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	255 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.57	0.69	0.75

Frame	254/6JM
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	190/380 V
Rated current	25.0/12.5 A
L. R. Amperes	138/68.7 A
LRC	5.5x(Code G)
No load current	14.1/7.03 A
Rated torque	39.9 ft.lb
Locked rotor torque	210 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	2.83 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	255 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.5	90.2

Power factor

50%	75%	100%
0.54	0.66	0.74

Frame	254/6JM
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	220/415 V
Rated current	23.4/12.4 A
L. R. Amperes	147/78.1 A
LRC	6.3x(Code J)
No load current	15.1/8.03 A
Rated torque	39.6 ft.lb
Locked rotor torque	270 %
Breakdown torque	310 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	2.83 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	255 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.4	90.2	90.4

Power factor

50%	75%	100%
0.47	0.60	0.68

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
