/Products/Electric Motors/3 Phase/WEG/Oil Well Pump/01009ES3EOW286T-W22 WEG 10HP Oil Well Pump Electric Motor, 900RPM

Product ID: 01009ES3EOW286T-W22

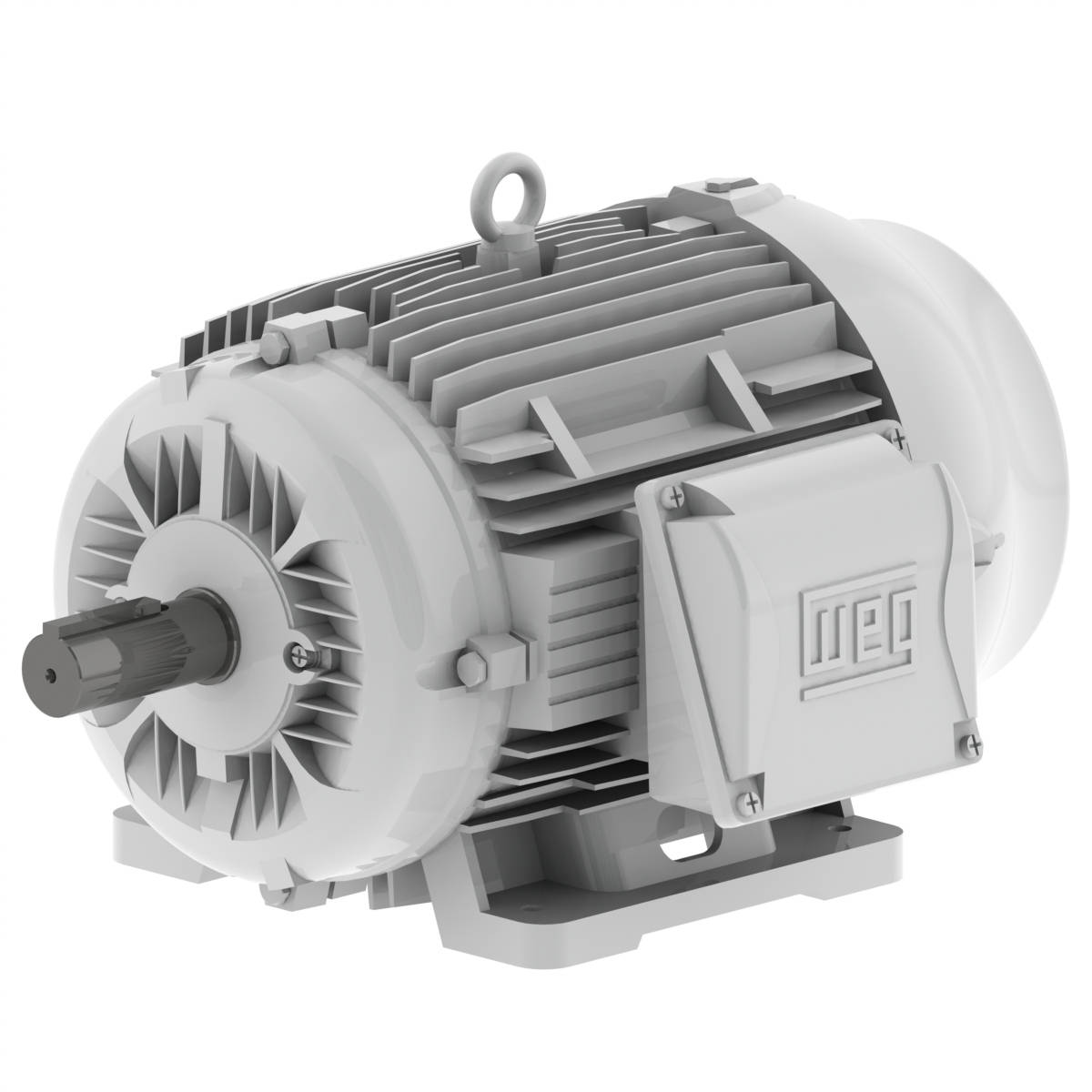

01009ES3EOW286T-W22 WEG 10HP Oil Well Pump Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 01009ES3EOW286T-W22

Selected accessories will also be added to cart

$2,577.75 / Each

Quantity:

IC-411-TEFC, IP55, 284T/286T Frame, 208-230/460VAC 60Hz 3 Phase, 12685553, Standard Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	284/6T
Output	10 HP (7.5 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	830 rpm
Slip	7.78 %
Rated voltage	208-230/460 V
Rated current	30.3-27.4/13.7 A
L. R. Amperes	176-159/79.5 A
LRC	5.8x(Code H)
No load current	11.3-10.2/5.10 A
Rated torque	63.3 ft.lb
Locked rotor torque	310 %
Breakdown torque	0 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	6.12 sq.ft.lb
Design	D
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	372 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	82.5

Power factor

50%	75%	100%
0.69	0.79	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 9010 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
