/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Close-Coupled Pump/00736OS1C213JM WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00736OS1C213JM

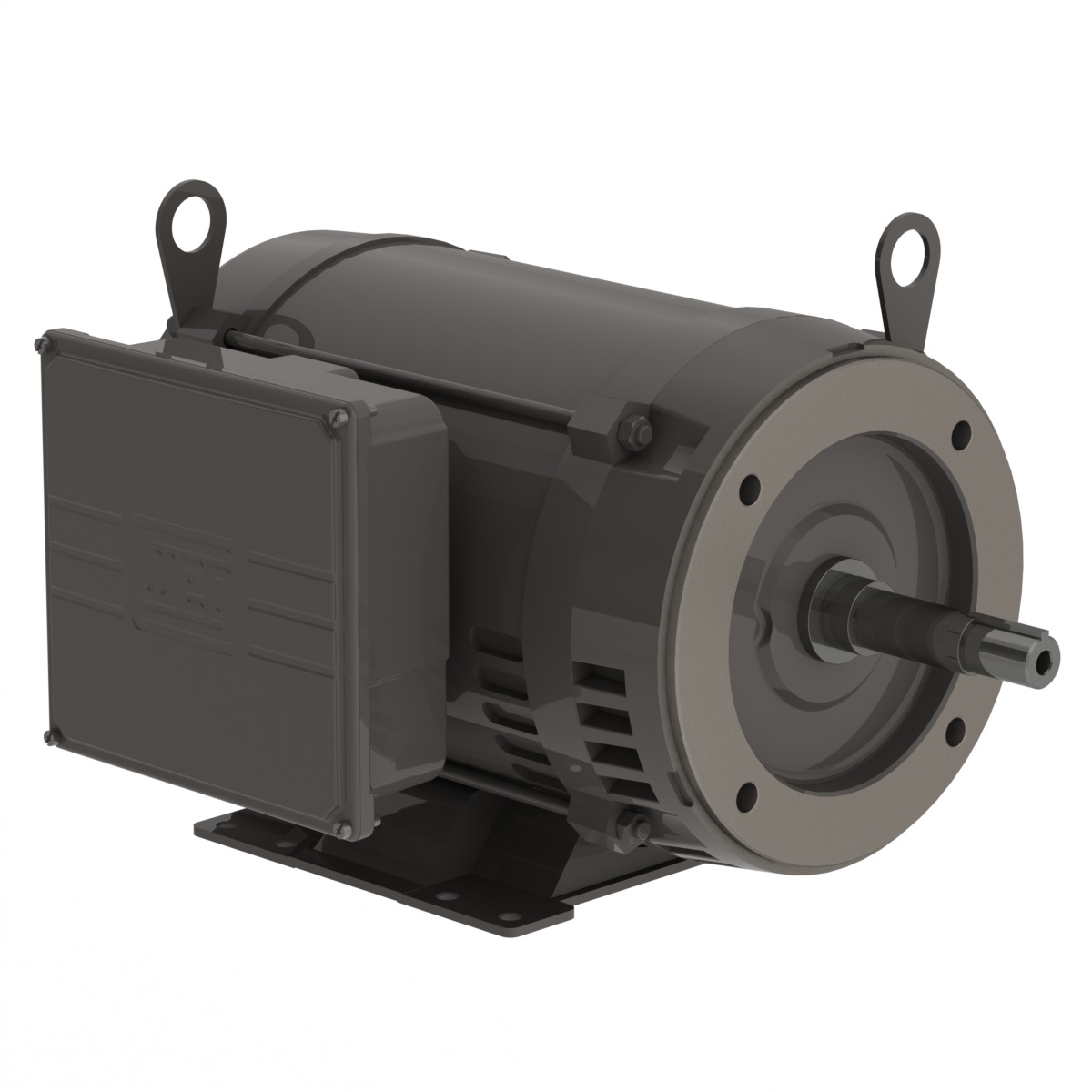

00736OS1C213JM WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736OS1C213JM

Selected accessories will also be added to cart
$1,175.25 / Each
Quantity:
IC01 - ODP, 213JM/215JM Frame, 208-230VAC Single Phase 60Hz, 12724449, Foot Mount, Rolled Steel

Electric Motors

Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230 V
Rated current 32.0-30.1 A
L. R. Amperes 256-241 A
LRC 8.0x(Code H)
No load current 0.000-8.00 A
Rated torque 11.1 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Approx. weight³ 123 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.5  84.8  85.5

Power factor

50% 75% 100%
0.83  0.90  0.93

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Drip Cover Without
Resilient Base Without
Pump Seal Mechanical Seal
